Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

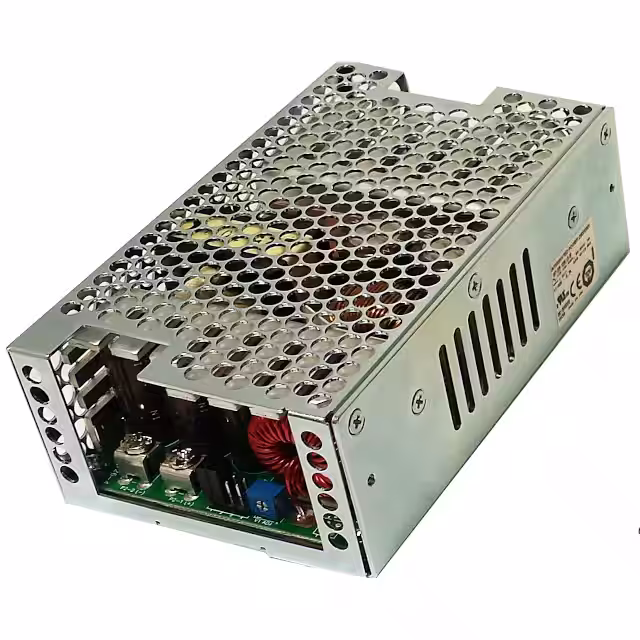

1010843CHCONXT-225-1002 CHCO |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 53 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010848CHCONXT-225-1007 CHCO |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 8 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010849CHCONXT-225-1008 CHCO |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010842CHCONXT-225-1001 CHCO |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 53 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010847CHCONXT-225-1006 CHCO |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010844CHCONXT-225-1003 CHCO |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 45 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010846CHCONXT-225-1005 CHCO |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
1011439CHCOGRN-200-3002 CHCO |
50 |
|
- |
GRN-200 (200W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 30 A | 5 A | 2 A | - | - | - | 200W | ITE (Commercial), Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) | CE, cURus, TUV, UKCA |
|
|
1011438CHCOGRN-200-3001 CHCO |
50 |
|
Технический лист |
GRN-200 (200W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 30 A | 6 A | 2 A | - | - | - | 200W | ITE (Commercial), Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) | CE, cURus, TUV, UKCA |
|
|
1011501CHCOGRN-200-3003 CHCO |
50 |
|
- |
GRN-200 (200W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 24V | -24V | - | - | - | 30 A | 1.5 A | 1.5 A | - | - | - | 200W | ITE (Commercial), Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) | CE, cURus, TUV, UKCA |
|
1011494CHGRN-200-3002-PF CH |
50 |
|
Технический лист |
GRN-200 (200W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 30 A | 6 A | 2 A | - | - | - | 200W | Industrial, ITE (Commercial), Laboratory, Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) | CE, cURus, TUV, UKCA |
|
|
1011502CHGRN-200-3003-PF CH |
50 |
|
Технический лист |
GRN-200 (200W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 24V | -24V | - | - | - | 30 A | 1.5 A | 1.5 A | - | - | - | 200W | Industrial, ITE (Commercial), Laboratory, Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) | CE, cURus, TUV, UKCA |
|
|
1011495CHGRN-200-3001-PF CH |
50 |
|
Технический лист |
GRN-200 (200W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 12V | 24V | -12V | - | - | 30 A | 6 A | 1.5 A | 2 A | - | - | 200W | Industrial, ITE (Commercial), Laboratory, Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) | CE, cURus, TUV, UKCA |
|
5EB100-230AC/DC CONVERTER |
500 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 210 ~ 250 VAC | 5V | - | - | - | - | - | 1 A | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output, Universal Input | Chassis Mount | 3.53" L x 2.53" W x 1.65" H (89.7mm x 64.3mm x 41.9mm) | CE, cURus |
|
1010881CHNXT-225-1004,LS CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 18.8 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010878CHNXT-225-1001,LS CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 53 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010884CHNXT-225-1007,LS CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 8 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010879CHNXT-225-1002,LS CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 53 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010885CHNXT-225-1008,LS CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010883CHNXT-225-1006,LS CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
