Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010899CHCONXT-175-1006,RE STBY CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010898CHCONXT-175-1005,RE STBY CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 11.7 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010900CHCONXT-175-1007,RE STBY CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010896CHCONXT-175-1003,RE STBY CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010895CHCONXT-175-1002,RE STBY CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010894CHCONXT-175-1001,RE STBY CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010901CHCONXT-175-1008,RE STBY CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
ENH-2180AC/DC CNVRTR 3.3V 5V +/-12V 978W |
200 |
|
Технический лист |
- | Bulk | Active | Enclosed | 4 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 22 A | 22 A | 66 A | 300 mA | - | - | 978W | ITE (Commercial) | - | 87% | 0°C ~ 50°C | PFC, Standby Output, Universal Input | Chassis Mount | 7.87" L x 3.94" W x 2.76" H (199.9mm x 100.1mm x 70.1mm) | CB, CCC, CE, cUL, cURus, FCC, Nemko |
|
1011501CHGRN-200-3003 CH |
50 |
|
- |
GRN-200 (200W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 24V | -24V | - | - | - | 30 A | 1.5 A | 1.5 A | - | - | - | 200W | ITE (Commercial), Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.65" H (127.0mm x 79.9mm x 41.9mm) | CE, cURus, TUV, UKCA |
|
|
1011439CHGRN-200-3002 CH |
50 |
|
- |
GRN-200 (200W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 30 A | 5 A | 2 A | - | - | - | 200W | ITE (Commercial), Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | CE, cURus, TUV, UKCA |
|
|
1011438CHGRN-200-3001 CH |
50 |
|
- |
GRN-200 (200W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 30 A | 6 A | 2 A | - | - | - | 200W | ITE (Commercial), Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | CE, cURus, TUV, UKCA |
|
1011495GRN-200-3001-PF |
50 |
|
Технический лист |
GRN-200 (200W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 30 A | 5 A | - | - | - | - | 200W | Industrial, ITE (Commercial), Laboratory, Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.35" H (127.0mm x 76.2mm x 34.3mm) | CE, cURus, TUV, UKCA |
|
|
1011494GRN-200-3002-PF |
50 |
|
Технический лист |
GRN-200 (200W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 15V | - | -15V | - | - | 30 A | 5 A | 2 A | - | - | - | 200W | Industrial, ITE (Commercial), Laboratory, Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.35" H (127.0mm x 76.2mm x 34.3mm) | CE, cURus, TUV, UKCA |
|

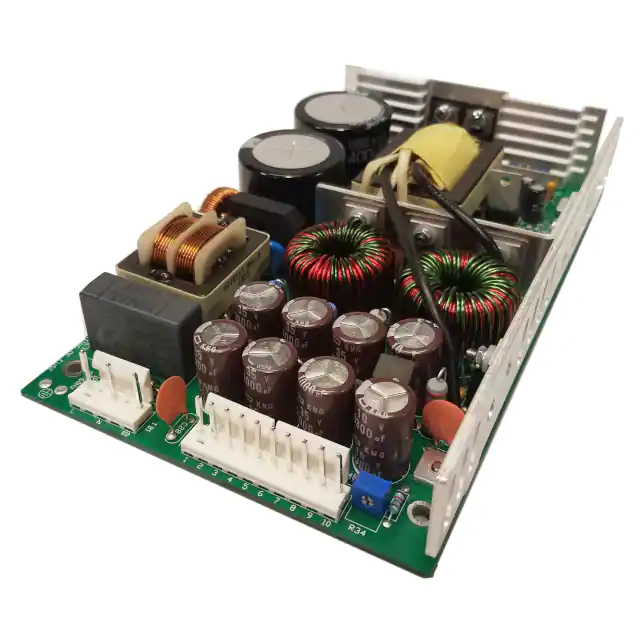

1010125SRW-115-2007 |
56 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Open Frame | 2 | 100 ~ 240 VAC | 17V | - | - | - | - | - | 3.4 A | 3.4 A | - | - | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.45" H (177.8mm x 108.0mm x 36.8mm) | CE, TUV, UKCA |
|
|
1010118SRW-115-2006 |
50 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Open Frame | 2 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 12 A | 5 A | - | - | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.45" H (177.8mm x 108.0mm x 36.8mm) | CE, TUV, UKCA |
|
|
1010094SRW-115-2002 |
31 |
|
Технический лист |
SRW-115 (115W) | Box | Not For New Designs | Open Frame | 2 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 5 A | 5 A | - | - | - | - | 115W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.45" H (177.8mm x 108.0mm x 36.8mm) | CE, TUV, UKCA |
|
1010880NXT-225-1003,LS |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 45 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1010885NXT-225-1008,LS |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1010883NXT-225-1006,LS |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1010879NXT-225-1002,LS |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 53 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
