Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010899CHNXT-175-1006,RE STBY CH |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010896CHNXT-175-1003,RE STBY CH |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010894CHNXT-175-1001,RE STBY CH |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010898CHNXT-175-1005,RE STBY CH |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 11.7 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010897CHNXT-175-1004,RE STBY CH |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
1011438GRN-200-3001 |
50 |
|
- |
GRN-200 (200W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 30 A | 6 A | 2 A | - | - | - | 200W | ITE (Commercial), Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | CE, cURus, TUV, UKCA |
|
|
1011439GRN-200-3002 |
50 |
|
- |
GRN-200 (200W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 30 A | 5 A | 2 A | - | - | - | 200W | ITE (Commercial), Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | CE, cURus, TUV, UKCA |
|
|
1011501GRN-200-3003 |
50 |
|
- |
GRN-200 (200W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 24V | -24V | - | - | - | 30 A | 1.5 A | 1.5 A | - | - | - | 200W | ITE (Commercial), Medical | - | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | CE, cURus, TUV, UKCA |
|
VMS-275-48AC/DC CONVERTER 48V 160W |
0 |
|
Технический лист |
VMS-275 (275W) | Bulk | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4.2 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|
1010509CHCOREL-150-3002 CHCO |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | - | -15V | - | - | 15 A | 3 A | 2 A | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010508CHCOREL-150-3001 CHCO |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 15 A | 4 A | 3 A | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010614CHCOREL-150-3004 CHCO |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 6 A | 7 A | 3 A | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010615CHCOREL-150-3003 CHCO |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 22V | -22V | 24V | - | - | - | 3.5 A | 3.5 A | 1 A | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|

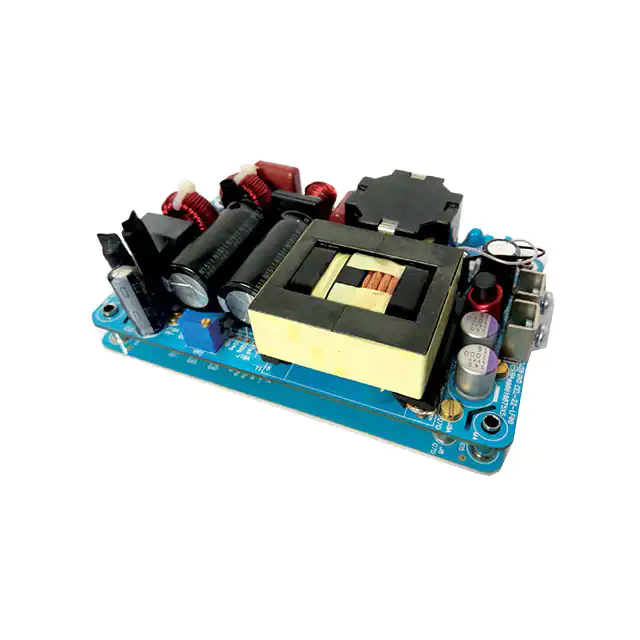

ABC550-1T24AC/DC CONVERTER 24V 150W |
0 |
|
Технический лист |
ABC550 (550W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W (550W Forced Air) | ITE (Commercial) | 3 kV | 91% | -40°C ~ 70°C | DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CE |
|
1010288CHCOSRP-100-4004 CHCO |
50 |
|
- |
SRP-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 15V | -15V | - | - | 12 A | 4 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010286CHCOSRP-100-4002 CHCO |
50 |
|
- |
SRP-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 15V | -15V | - | - | 12 A | 3 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010285CHCOSRP-100-4001 CHCO |
50 |
|
- |
SRP-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 12 A | 3 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010287CHCOSRP-100-4003 CHCO |
50 |
|
- |
SRP-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 12V | -12V | - | - | 12 A | 4 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010437CHCOSRP-100-4005 CHCO |
50 |
|
- |
SRP-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 12V | 8V | -8V | - | - | 12 A | 3 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
1010912NXT-175-1003,LS-RE |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) | CE, cURus, TUV, UKCA |
