Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VOF-150-48AC/DC CONVERTER 48V 150W |
0 |
|
Технический лист |
VOF-150 (150W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 90% | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.1mm) | EN, FCC, SIQ, TUV, UL |
|
|
VOF-150-36AC/DC CONVERTER 36V 150W |
0 |
|
Технический лист |
VOF-150 (150W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 89% | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.1mm) | EN, FCC, SIQ, TUV, UL |
|
PMK150S-12EAC/DC CONVERTER 12V 150W |
31 |
|
Технический лист |
PMK150E (150W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | 4.242 kV | 75% | -10°C ~ 70°C | Universal Input | Chassis Mount | 5.05" L x 3.17" W x 1.60" H (128.3mm x 80.5mm x 40.6mm) | CB, CE, cURus, UL |
|

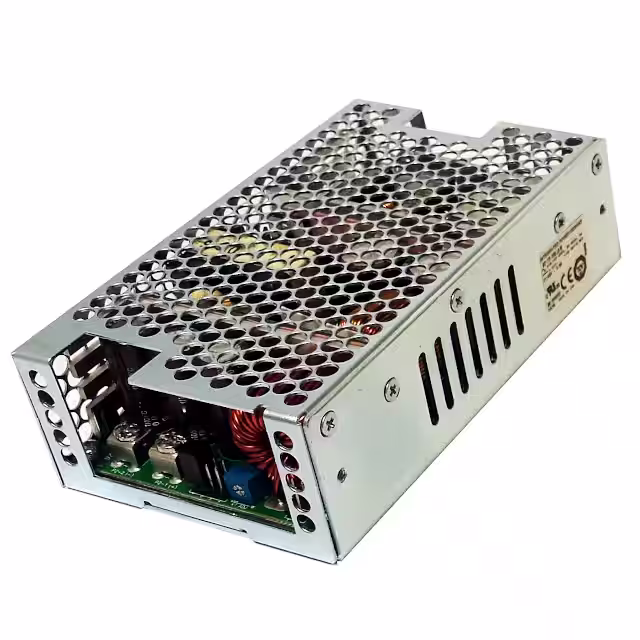

1010850CHCONXT-175-1001 CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010855CHCONXT-175-1006 CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010853CHCONXT-175-1004 CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010851CHCONXT-175-1002 CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010856CHCONXT-175-1007 CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010854CHCONXT-175-1005 CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 11.7 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010852CHCONXT-175-1003 CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1010857CHCONXT-175-1008 CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
|
|
1011765FNCHCOGRN-360-1001 FN PF CHCO |
50 |
|
Технический лист |
GRN-360 (360W) | Tape & Box (TB) | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | - | - | - | - | - | - | 360W | Industrial, ITE (Commercial), Laboratory, Medical | - | 93% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.10" L x 3.16" W x 1.80" H (129.54mm x 80.26mm x 45.72mm) | CE, cURus, TUV, UKCA |
|
1010615CHREL-150-3003 CH |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 22V | -22V | 24V | - | - | - | 3.5 A | 3.5 A | 1 A | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010509CHREL-150-3002 CH |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 15V | - | -15V | - | - | 15 A | 3 A | 2 A | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010614CHREL-150-3004 CH |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 6 A | 7 A | 3 A | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010508CHREL-150-3001 CH |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 15 A | 4 A | 3 A | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
1010286SRP-100-4002 |
50 |
|
- |
SRP-100 (100W) | Box | Active | Chassis | 4 | 100 ~ 240 VAC | 5V | 24V | 15V | -15V | - | - | 12 A | 3 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
DB15-20AC/DC CONVERTER |
988 |
|
Технический лист |
- | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 15V | -15V | - | - | - | - | 200 mA | 200 mA | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
6EB55AC/DC CONVERTER |
497 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 6V | - | - | - | - | - | 550 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
15EB40AC/DC CONVERTER |
496 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 15V | - | - | - | - | - | 400 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
