Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010578REL-185-1005 |
31 |
|
Технический лист |
REL-185 (185W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 12.3 A | - | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA |
|

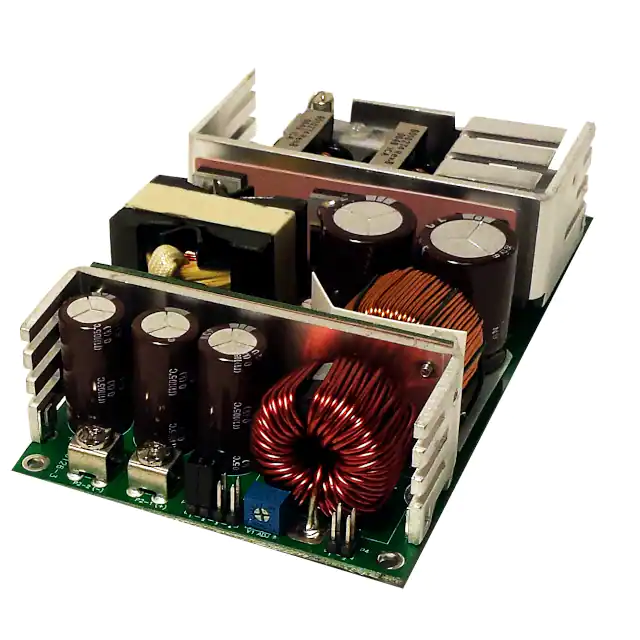

1010850NXT-175-1001 |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) | CE, cURus, TUV, UKCA |
|
|
1010851NXT-175-1002 |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 35 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) | CE, cURus, TUV, UKCA |
|
|
1010855NXT-175-1006 |
30 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) | CE, cURus, TUV, UKCA |
|
|
1010853NXT-175-1004 |
27 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.7mm) | CE, cURus, TUV, UKCA |
|
1010283SRW-100-1006 |
59 |
|
Технический лист |
SRW-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1010282SRW-100-1005 |
50 |
|
Технический лист |
SRW-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1010278SRW-100-1001 |
50 |
|
Технический лист |
SRW-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1010284SRW-100-1007 |
48 |
|
Технический лист |
SRW-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1010280SRW-100-1003 |
29 |
|
Технический лист |
SRW-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.50" H (127.0mm x 83.8mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
MINT1275A1214K01AC/DC CONVERTER 12V 180W |
0 |
|
Технический лист |
MINT1275 (275W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W (275W Forced Air) | Medical | 4 kV | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | CE |
|
|
MINT1275A5614K01AC/DC CONVERTER 56V 180W |
0 |
|
Технический лист |
MINT1275 (275W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 56V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 180W (275W Forced Air) | Medical | 4 kV | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | CE |
|
VOF-275-48AC/DC CONVERTER 48V 160W |
0 |
|
Технический лист |
VOF-275 (275W) | Bulk | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-275-24AC/DC CONVERTER 24V 160W |
0 |
|
Технический лист |
VOF-275 (275W) | Bulk | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
1010028CHCOSRW-65-3003 CHCO |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Enclosed | 3 | 100 ~ 240 VAC | 5V | - | 15V | -15V | - | - | 7 A | 2 A | 2 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010027CHCOSRW-65-3002 CHCO |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Enclosed | 3 | 100 ~ 240 VAC | 5V | - | 12V | -12V | - | - | 7 A | 2 A | 2 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010454CHCOSRW-65-3006 CHCO |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Enclosed | 3 | 100 ~ 240 VAC | 5.25V | 15V | 34V | - | - | - | 6 A | 1 A | 1.5 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010026CHCOSRW-65-3001 CHCO |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Enclosed | 3 | 100 ~ 240 VAC | 5V | - | 12V | -12V | - | - | 5 A | 3 A | 1 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010029CHCOSRW-65-3004 CHCO |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Enclosed | 3 | 100 ~ 240 VAC | 5V | -5V | 12V | - | - | - | 5 A | 4 A | 2 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
ENH-2150-2IPC2U 500W Power Supply |
40 |
|
- |
- | Bulk | Active | Enclosed | 4 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 300 mA | 20 A | 20 A | 41 A | - | - | 662W | ITE (Commercial) | - | 87% | 0°C ~ 50°C | PFC, Universal Input | Chassis Mount | 7.87" L x 3.94" W x 2.76" H (200.0mm x 100.0mm x 70.0mm) | CB, CCC, cUL, cURus, FCC, NEMKO |
