Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010026CHSRW-65-3001 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 3 | 100 ~ 240 VAC | 5V | - | 12V | -12V | - | - | 5 A | 3 A | 1 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010029CHSRW-65-3004 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 3 | 100 ~ 240 VAC | 5V | -5V | 12V | - | - | - | 5 A | 4 A | 2 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010028CHSRW-65-3003 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 3 | 100 ~ 240 VAC | 5V | - | 15V | -15V | - | - | 7 A | 2 A | 2 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010454CHSRW-65-3006 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 3 | 100 ~ 240 VAC | 5.25V | 15V | 34V | - | - | - | 6 A | 1 A | 1.5 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010027CHSRW-65-3002 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 3 | 100 ~ 240 VAC | 5V | - | 12V | -12V | - | - | 7 A | 2 A | 2 A | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|

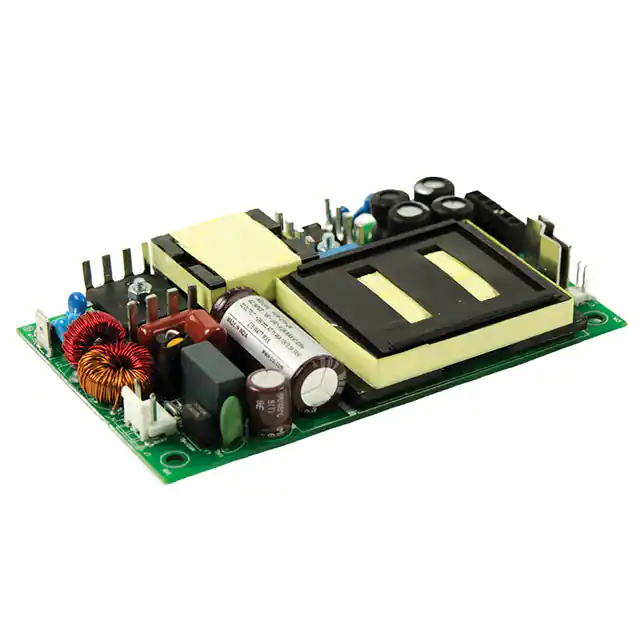

VMS-275-12AC/DC CONVERTER 12V 160W |
0 |
|
Технический лист |
VMS-275 (275W) | Bulk | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4.2 kV | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|
|
VMS-275-24AC/DC CONVERTER 24V 160W |
0 |
|
Технический лист |
VMS-275 (275W) | Bulk | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4.2 kV | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|

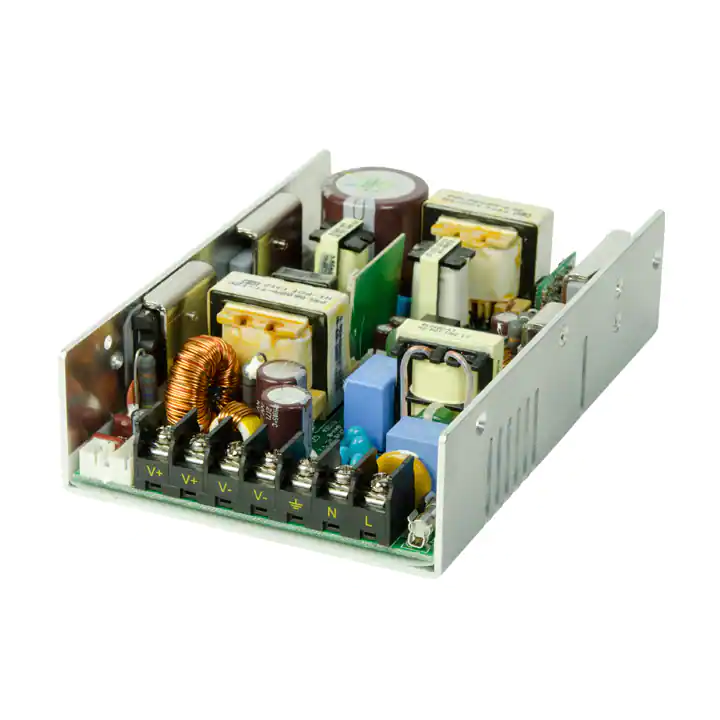

PCM-400-12-UAC/DC CONVERTER 12V 220W |
0 |
|
Технический лист |
PCM-400 (400W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 18.33 A | - | - | - | - | - | 220W (400W Forced Air) | ITE (Commercial) | 3 kV | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
HN5-9/OVP-AGAC/DC CONVERTER 5V 45W |
0 |
|
Технический лист |
Linear N | Bulk | Obsolete | Linear | 1 | 100, 120, 220, 230, 240 VAC | 5V | - | - | - | - | - | 9 A | - | - | - | - | - | 45W | ITE (Commercial) | 4.242 kV | 45% | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 7.00" L x 4.87" W x 3.28" H (177.8mm x 123.7mm x 83.3mm) | CE, CSA, UL |
|
1.5EB50-230AC/DC CONVERTER |
500 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 210 ~ 250 VAC | 1.5V | - | - | - | - | - | 500 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output, Universal Input | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
5EB50-230AC/DC CONVERTER |
500 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 210 ~ 250 VAC | 5V | - | - | - | - | - | 500 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output, Universal Input | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
8EB30-230AC/DC CONVERTER |
498 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 210 ~ 250 VAC | 8V | - | - | - | - | - | 300 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output, Universal Input | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
18EB12-230AC/DC CONVERTER |
495 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 210 ~ 250 VAC | 18V | - | - | - | - | - | 120 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output, Universal Input | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
1EB50-230AC/DC CONVERTER |
493 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 210 ~ 250 VAC | 1V | - | - | - | - | - | 500 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output, Universal Input | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
24EB10-230AC/DC CONVERTER |
485 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 210 ~ 250 VAC | 24V | - | - | - | - | - | 100 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output, Universal Input | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
1010035CHCOSRW-65-2005 CHCO |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 7 A | 1.5 A | - | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010034CHCOSRW-65-2004 CHCO |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 2.5 A | 2 A | - | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010032CHCOSRW-65-2002 CHCO |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Enclosed | 2 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 7 A | 3 A | - | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|

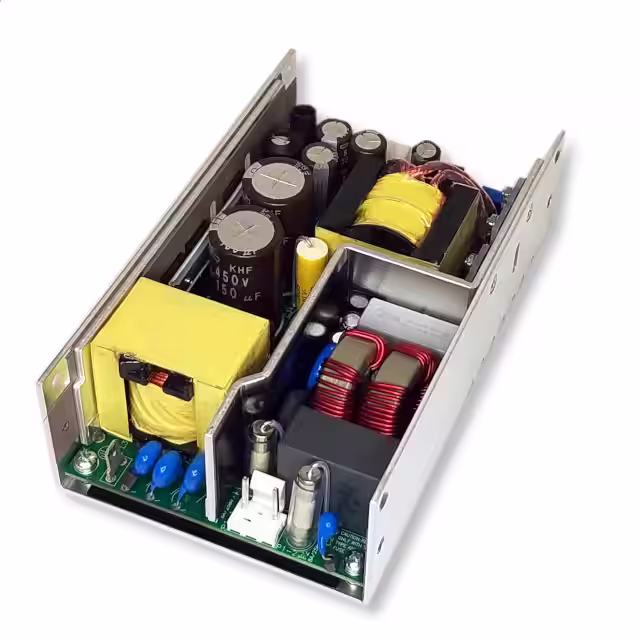

1011647CHGRN-360-1003 CH |
50 |
|
Технический лист |
GRN-360 (360W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 18V | - | - | - | - | - | 20 A | - | - | - | - | - | 360W | Industrial, ITE (Commercial), Laboratory, Medical | - | 93% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.10" L x 3.16" W x 1.80" H (129.54mm x 80.26mm x 45.72mm) | CE, cURus, TUV, UKCA |
|
|
1010021CHSRW-65-4002 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | 12V | 12V | -12V | - | - | 5 A | 1 A | 2 A | 2 A | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
