Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010024CHSRW-65-4005 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -5V | - | - | 5 A | 1 A | 2 A | 2 A | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010020CHSRW-65-4001 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | -5V | 12V | -12V | - | - | 5 A | 3 A | 2 A | 2 A | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010238CHSRW-65-4008 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1 A | 2 A | 2 A | - | - | 80W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010196CHSRW-65-4007 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | 26V | 15V | -15V | - | - | 5 A | 1 A | 2 A | 2 A | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010022CHSRW-65-4003 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1 A | 2 A | 2 A | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010025CHSRW-65-4006 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1 A | 2 A | 2 A | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
|
1010023CHSRW-65-4004 CH |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Chassis | 4 | 100 ~ 240 VAC | 5V | -5V | 15V | -15V | - | - | 5 A | 3 A | 2 A | 2 A | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.23" L x 4.25" W x 1.65" H (158.2mm x 108.0mm x 41.9mm) | CE, TUV, UKCA |
|
PMK150S-12AC/DC CONVERTER 12V 150W |
31 |
|
Технический лист |
PMK150 (150W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 4.242 kV | - | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | - | cURus |
|
|
PMK150S-5AC/DC CONVERTER 5V 150W |
29 |
|
Технический лист |
PMK150 (150W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | ITE (Commercial) | 4.242 kV | - | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | - | cURus |
|
MINT1275A4814K01AC/DC CONVERTER 48V 180W |
0 |
|
Технический лист |
MINT1275 (275W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 180W (275W Forced Air) | Medical | 4 kV | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | CE |
|

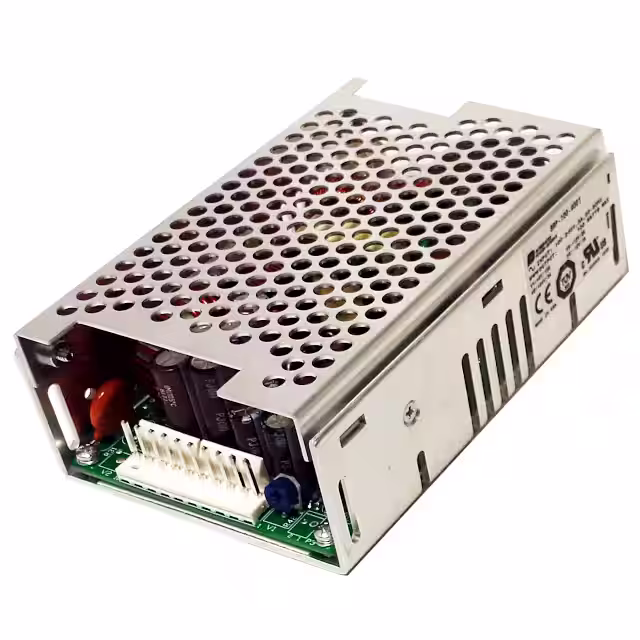

1010290CHCOSRP-100-2001 CHCO |
50 |
|
- |
SRP-100 (100W) | Box | Active | Enclosed | 2 | 100 ~ 240 VAC | 5V | 24V | - | - | - | - | 12 A | 3 A | - | - | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
DB15-15AC/DC CONVERTER |
999 |
|
Технический лист |
- | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 15V | -15V | - | - | - | - | 150 mA | 150 mA | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
DB5-15AC/DC CONVERTER |
984 |
|
Технический лист |
- | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 5V | -5V | - | - | - | - | 150 mA | 150 mA | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
32EB07AC/DC CONVERTER |
498 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 32V | - | - | - | - | - | 70 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.65" H (89.7mm x 64.3mm x 41.9mm) | CE, cURus |
|
1010513REL-150-2004 |
62 |
|
Технический лист |
REL-150 (150W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 7.5 A | 5 A | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA |
|

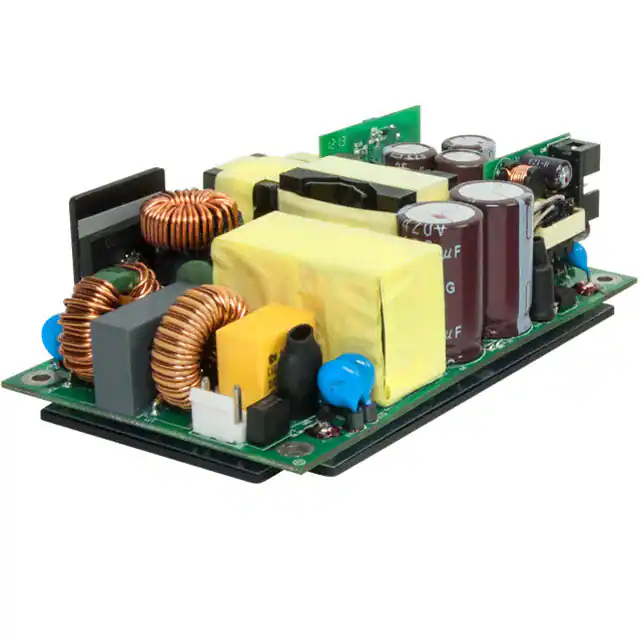

VBM-360-48AC/DC CONVERTER 48V 360W |
0 |
|
Технический лист |
VBM-360 (360W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 7.4 A | - | - | - | - | - | 360W | ITE (Commercial) | 3 kV | 94% | -20°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.60" H (127.0mm x 76.2mm x 40.6mm) | CB Scheme, EN, IEC, UL |
|

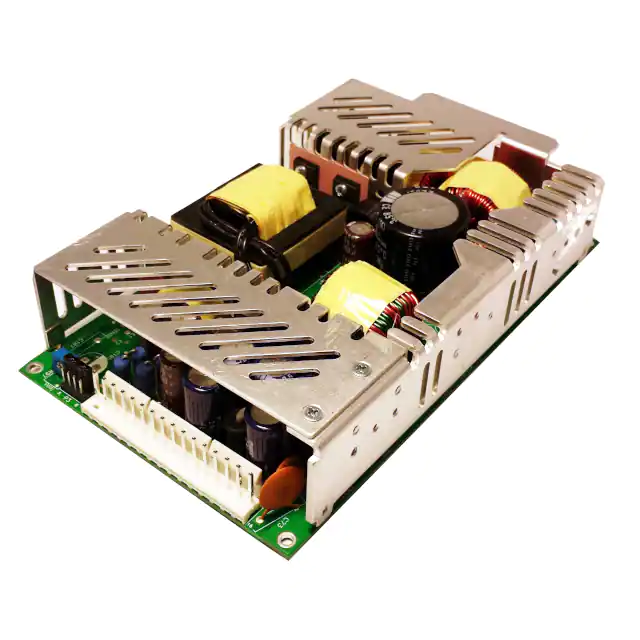

1010822REL-185-1009 |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 6.3V | - | - | - | - | - | 29 A | - | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA |
|
|
1010581REL-185-1008 |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.8 A | - | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA |
|
|
1010575REL-185-1002 |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 37 A | - | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA |
|
|
1010576REL-185-1003 |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 37 A | - | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA |
