Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VOF-185-24AC/DC CONVERTER 24V 111W |
0 |
|
Технический лист |
VOF-185 (185W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 24V | - | - | - | - | - | 4.63 A | - | - | - | - | - | 111W (185W Forced Air) | ITE (Commercial) | 3 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) | CB Scheme, CSA, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-185-15AC/DC CONVERTER 15V 111W |
0 |
|
Технический лист |
VOF-185 (185W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 15V | - | - | - | - | - | 7.4 A | - | - | - | - | - | 111W (185W Forced Air) | ITE (Commercial) | 3 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) | CB Scheme, CSA, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VOF-185-48AC/DC CONVERTER 48V 111W |
0 |
|
Технический лист |
VOF-185 (185W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 48V | - | - | - | - | - | 2.31 A | - | - | - | - | - | 111W (185W Forced Air) | ITE (Commercial) | 3 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) | CB Scheme, CSA, EN, FCC, IEC, SIQ, TUV, UL |
|
HC48-1-A+GAC/DC CONVERTER 48V |
0 |
|
Технический лист |
Linear C | Bulk | Active | Linear | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 1 A | - | - | - | - | - | - | ITE (Commercial) | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.63" L x 4.88" W x 2.50" H (143.0mm x 124.0mm x 63.5mm) | CE, cURus, TUV |
|
|
PMMX300S-28EAC/DC CONVERTER 28V 300W |
254 |
|
Технический лист |
PMMX300S-E (300W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 10.7 A | - | - | - | - | - | 300W | Medical | 5.656 kV | 86% | -20°C ~ 60°C | Universal Input | Chassis Mount | 7.00" L x 4.00" W x 2.08" H (177.8mm x 101.6mm x 52.8mm) | CB, cURus, UL |
|
|
PMMX300S-12EAC/DC CONVERTER 12V 300W |
218 |
|
Технический лист |
PMMX300S-E (300W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | Medical | 5.656 kV | 85% | -20°C ~ 60°C | Universal Input | Chassis Mount | 7.00" L x 4.00" W x 2.08" H (177.8mm x 101.6mm x 52.8mm) | CB, CE, cURus, UL |
|
1011051CHREL-110-3007 CH |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 20V | 12V | - | 12V | - | - | 2.5 A | 2.5 A | 2.5 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010827CHREL-110-3004 CH |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 9V | 24V | 13V | - | - | - | 3 A | 3 A | 2 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010841CHREL-110-3005 CH |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 9.5V | - | 9.5V | - | - | 12 A | 1 A | 1 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010479CHREL-110-3002 CH |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 15V | - | -15V | - | - | 10 A | 2 A | 2 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011318CHREL-110-3006 CH |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 15V | - | 15V | - | - | 7 A | 3.5 A | 2 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010478CHREL-110-3001 CH |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 10 A | 3 A | 3 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
1010032SRW-65-2002 |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 2 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 7 A | 3 A | - | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) | CE, TUV, UKCA |
|
VMS-225-48AC/DC CONVERTER 48V 120W |
0 |
|
Технический лист |
VMS-225 (225W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (225W Forced Air) | Medical | 4.2 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | CB Scheme, EN, FCC, IEC, TUV, UL |
|

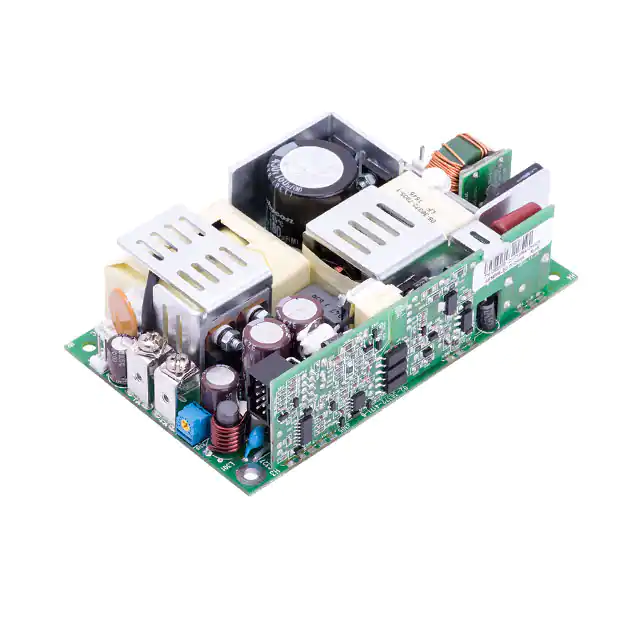

CINT1275A1214K01AC/DC CONVERTER 12V 180W |
0 |
|
Технический лист |
CINT1275 (275W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W (275W Forced Air) | ITE (Commercial) | 4 kV | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) | CE |
|
|
CINT1275A4814K01AC/DC CONVERTER 48V 180W |
0 |
|
Технический лист |
CINT1275 (275W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 180W (275W Forced Air) | ITE (Commercial) | 4 kV | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) | CE |
|
1010993CHCONXT-100-1003,LS-RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010996CHCONXT-100-1006,LS-RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010998CHCONXT-100-1008,LS-RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010994CHCONXT-100-1004,LS-RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
