Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

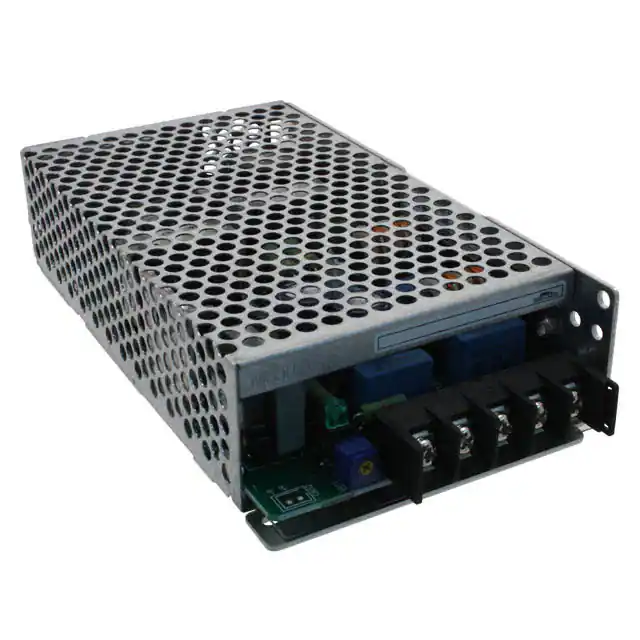

JWS50-28/AAC/DC CONVERTER 28V 50W |
53 |
|
Технический лист |
JWS (50W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 28V | - | - | - | - | - | 2 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 79% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 6.25" L x 3.35" W x 1.45" H (158.8mm x 85.1mm x 36.8mm) | CE |
|
HDM500U-148AC/DC CONVERTER 48V 500W |
103 |
|
Технический лист |
HDM500 (500W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 500W | ITE (Commercial), Medical | 4 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.50" L x 3.25" W x 1.60" H (139.7mm x 82.6mm x 40.6mm) | CB, CE, cURus |
|
1010113CHCOSRW-45-4005 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | -12V | -5V | - | - | 5 A | 1 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010252CHCOSRW-45-4008 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 3.3V | 3.3V | 5V | 12V | - | - | 5 A | 3 A | 3 A | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010448CHCOSRW-45-4012 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 12V | 9V | -12V | - | - | 5 A | 3 A | 1 A | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010112CHCOSRW-45-4004 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 15V | -15V | - | - | 5 A | 1 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010110CHCOSRW-45-4002 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 15V | -15V | - | - | 5 A | 2 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010251CHCOSRW-45-4007 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 8V | 8V | 18V | 18V | - | - | 2 A | 500 mA | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010111CHCOSRW-45-4003 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 5 A | 1 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010109CHCOSRW-45-4001 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | -5V | 12V | -12V | - | - | 5 A | 2 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010361CHCOSRW-45-4009 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 27V | 15V | -15V | - | - | 5 A | 1 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
|
1010114CHCOSRW-45-4006 CHCO |
50 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Enclosed | 4 | 100 ~ 240 VAC | 5V | 15V | 15V | -15V | - | - | 5 A | 2 A | 700 mA | 700 mA | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.15" L x 3.25" W x 1.56" H (130.8mm x 82.6mm x 39.6mm) | CE, TUV, UKCA |
|
CFM351M240AC/DC CONVERTER 24V 350W |
32 |
|
Технический лист |
CFM351M (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | 5.656 kV | 93% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.52" H (165.1mm x 101.6mm x 38.6mm) | CE, cURus, FCC, TUV |
|
1010977CHNXT-100-1003,RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010979CHNXT-100-1005,RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010975CHNXT-100-1001,RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010978CHNXT-100-1004,RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010982CHNXT-100-1008,RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010976CHNXT-100-1002,RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010980CHNXT-100-1006,RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
