Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010478REL-110-3001 |
48 |
|
Технический лист |
REL-110 (110W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | - | -12V | - | - | 10 A | 3 A | 3 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
|
1011318REL-110-3006 |
28 |
|
Технический лист |
REL-110 (110W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 15V | - | 15V | - | - | 7 A | 3.5 A | 2 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CE, cURus, TUV, UKCA |
|

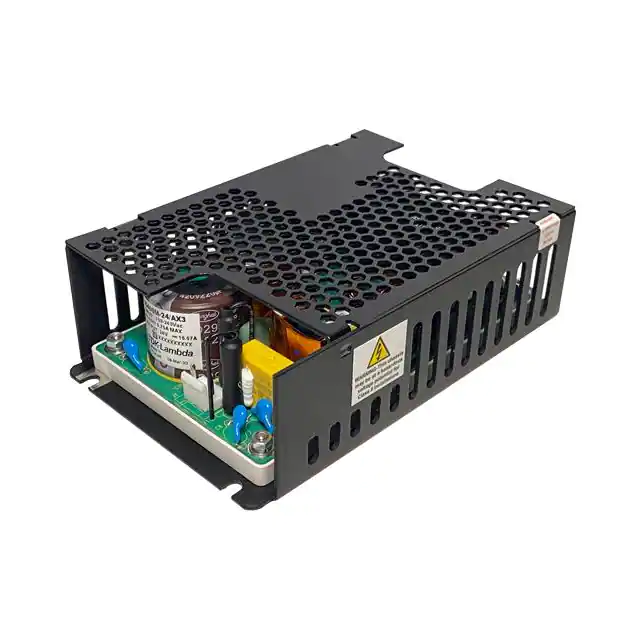

CUS400M-15/AAC/DC CONVERTER 15V 250W |
50 |
|
Технический лист |
CUS400M (400W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | - | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.67" H (142.0mm x 90.0mm x 42.5mm) | CE |
|

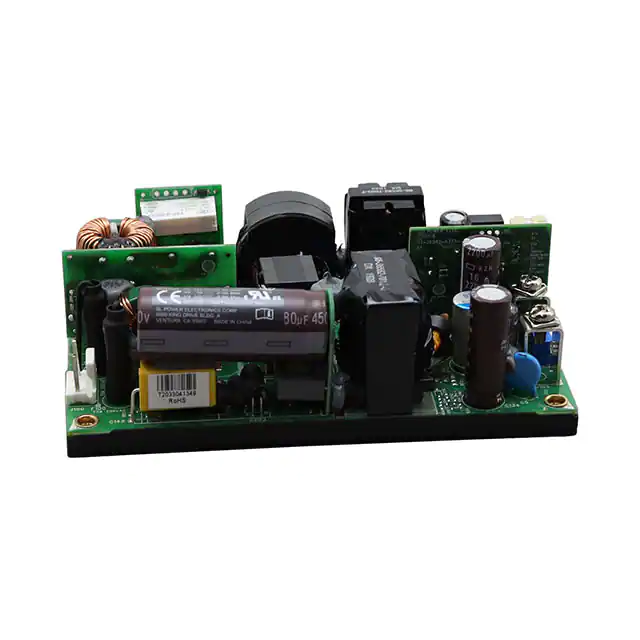

GU300S12KAC/DC CONVERTER 12V 184W |
0 |
|
Технический лист |
GU300 (300W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 15.5 A | - | - | - | - | - | 184W (284W Forced Air) | ITE (Commercial), Medical | 4 kV | 91% | -20°C ~ 70°C (With Derating) | Adjustable Output, PMBus™, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CE, cURus, D-Mark |
|

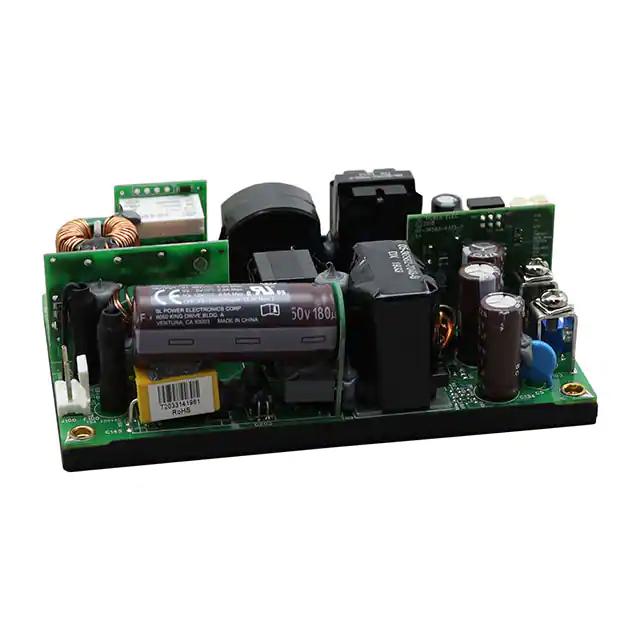

GU300S48KAC/DC CONVERTER 48V 184W |
0 |
|
Технический лист |
GU300 (300W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.8 A | - | - | - | - | - | 184W (284W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -20°C ~ 70°C (With Derating) | Adjustable Output, PMBus™, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CE, cURus, D-Mark |
|
MBC350-1T24LAC/DC CONVERTER 24V 200/350W |
0 |
|
Технический лист |
MBC350 (350W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W (350W Forced Air) | Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CE |
|
|
MBC350-1T48LAC/DC CONVERTER 48V 200W |
0 |
|
Технический лист |
MBC350 (350W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W (350W Forced Air) | Medical | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CE |
|
VGS-600-36AC/DC CONVERTER 36V 631W |
32 |
|
Технический лист |
VGS-600 (600W) | Box | Not For New Designs | Enclosed | 1 | 80 ~ 277 VAC, 110 ~ 390 VDC | 36V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 631W | ITE (Commercial) | 4 kV | 94% | -40°C ~ 70°C | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 7.90" L x 4.00" W x 1.60" H (200.6mm x 101.6mm x 40.6mm) | CE, cURus, UKCA |
|
1010992CHNXT-100-1002,LS-RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010995CHNXT-100-1005,LS-RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010993CHNXT-100-1003,LS-RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010996CHNXT-100-1006,LS-RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010997CHNXT-100-1007,LS-RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010991CHNXT-100-1001,LS-RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010998CHNXT-100-1008,LS-RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010994CHNXT-100-1004,LS-RE CH |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|

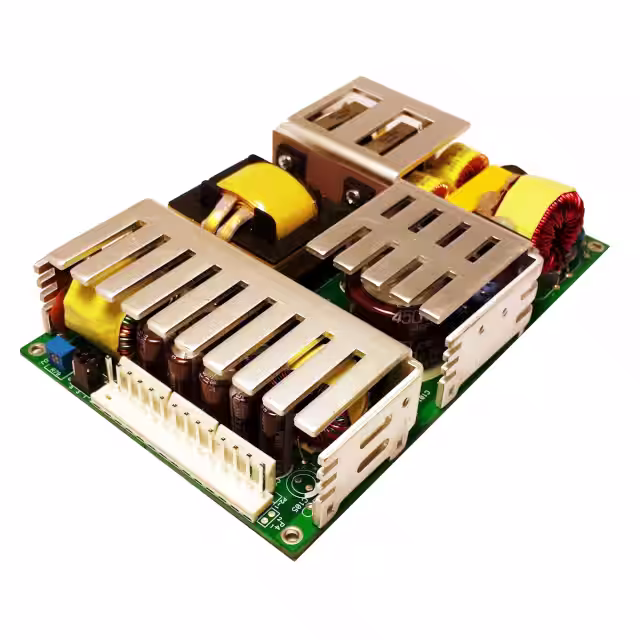

1010518REL-150-1004 |
98 |
|
Технический лист |
REL-150 (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
|
1010515REL-150-1001 |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 2.5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
|
1010521REL-150-1007 |
50 |
|
Технический лист |
REL-150 (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 150W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 3.83" W x 1.32" H (152.4mm x 97.3mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
|
VGS-600-24AC/DC CONVERTER 24V 630W |
28 |
|
Технический лист |
VGS-600 (600W) | Box | Not For New Designs | Enclosed | 1 | 80 ~ 277 VAC, 110 ~ 390 VDC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial) | 4 kV | 94% | -40°C ~ 70°C | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 8.00" L x 4.00" W x 1.60" H (203.2mm x 101.6mm x 40.6mm) | CE, cURus, UKCA |
