Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010987CHCONXT-100-1005,LS CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010984CHCONXT-100-1002,LS CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
1010480CHCOREL-110-2001 CHCO |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 3.3V | 5V | - | - | - | - | 10 A | 6 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010482CHCOREL-110-2003 CHCO |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 10 A | 3 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010481CHCOREL-110-2002 CHCO |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 10 A | 5 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010710CHCOREL-110-2006 CHCO |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 18V | -18V | - | - | - | - | 4 A | 3 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010483CHCOREL-110-2004 CHCO |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 5 A | 4 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1010484CHCOREL-110-2005 CHCO |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 4 A | 3 A | - | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
VF-S320-24A-CF-1AC/DC CONVERTER 24V 320W |
100 |
|
Технический лист |
VF-S320 (320W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 24V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 83% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 6.00" L x 4.00" W x 2.00" H (152.4mm x 101.6mm x 50.8mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
1010977CHCONXT-100-1003,RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010978CHCONXT-100-1004,RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010982CHCONXT-100-1008,RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010976CHCONXT-100-1002,RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010981CHCONXT-100-1007,RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010980CHCONXT-100-1006,RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010975CHCONXT-100-1001,RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|
|
1010979CHCONXT-100-1005,RE CHCO |
50 |
|
Технический лист |
NXT-100 (100W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.81" L x 2.59" W x 1.30" H (122.2mm x 65.8mm x 33.0mm) | CE, cURus, TUV, UKCA |
|

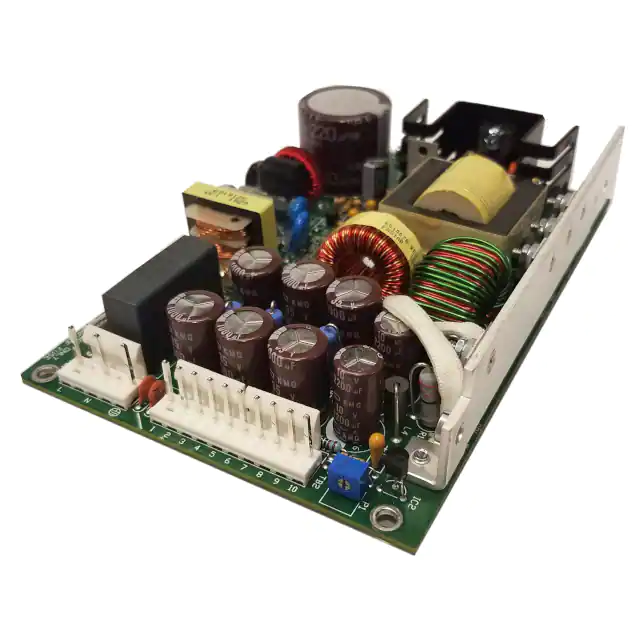

1010039SRW-65-1004 |
50 |
|
Технический лист |
SRW-65 (65W) | Box | Not For New Designs | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | Industrial, ITE (Commercial) | - | 76% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.16" H (152.4mm x 101.6mm x 29.5mm) | CE, TUV, UKCA |
|
1010479REL-110-3002 |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 15V | - | -15V | - | - | 10 A | 2 A | 2 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CE, cURus, TUV, UKCA |
|
|
1010827REL-110-3004 |
50 |
|
Технический лист |
REL-110 (110W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 9V | 24V | 13V | - | - | - | 3 A | 3 A | 2 A | - | - | - | 110W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CE, cURus, TUV, UKCA |
