Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-53250K-C1-R0HEAT SINK 25MM X 25MM X 14.5MM |
225 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.571" (14.50mm) | - | 8.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-53170R-C1-R0HEAT SINK 17MM X 17MM X 19.5MM |
945 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.768" (19.50mm) | - | 9.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61425D-C1-R0MAXIGRIP FANSINK 42.5X42.5X9.5MM |
225 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.374" (9.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X51190D-C1-R0MAXIFLOW 18.25X18.25X9.5MM T766 |
124 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.374" (9.50mm) | - | 16.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

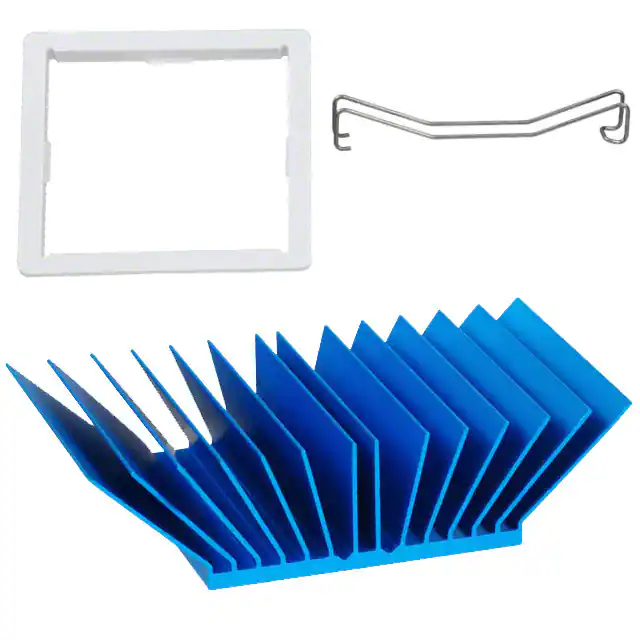

ATS-50425P-C1-R0HEAT SINK 42.5 X 42.5 X 17.5MM |
177 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.689" (17.50mm) | - | 1.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X51210D-C1-R0MAXIFLOW 20.25X20.25X9.5MM T766 |
124 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.374" (9.50mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

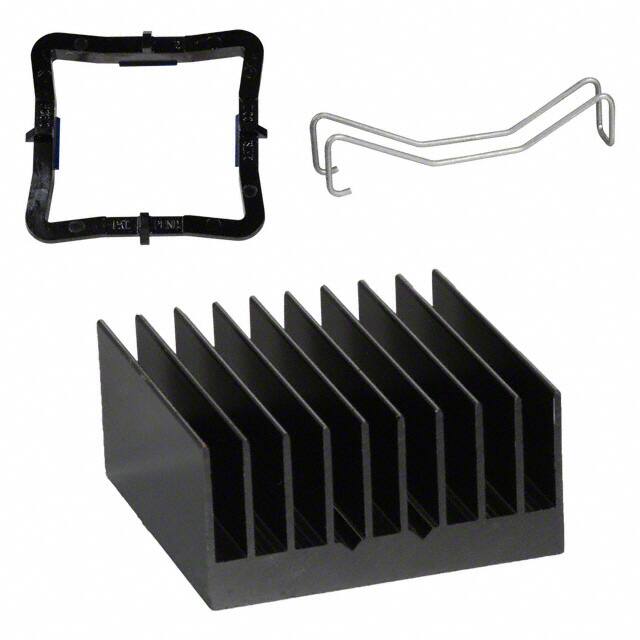

ATS-53310K-C1-R0HEAT SINK 31MM X 31MM X 14.5MM |
103 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.571" (14.50mm) | - | 6.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

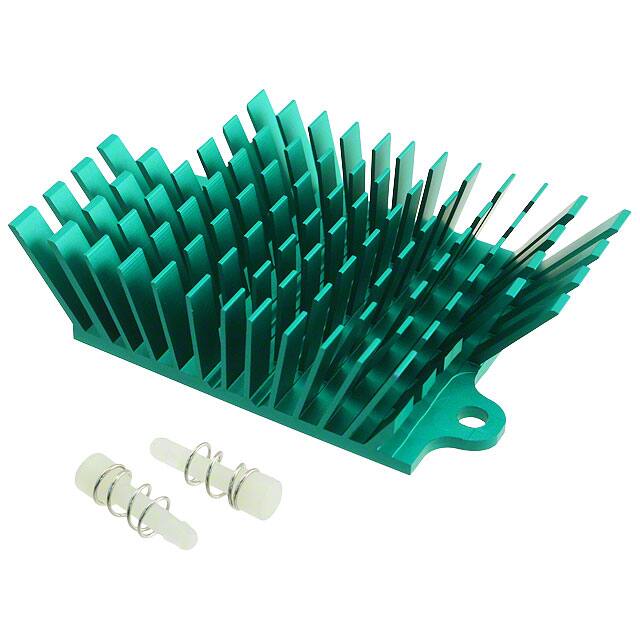

ATS-1042-C1-R0HEATSINK 41X45X15MM NYLONPUSHPIN |
339 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 2.50°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
ATS-X51325R-C1-R0MAXIFLOW 31.75X31.75X19.5MM T766 |
125 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.279" (32.50mm) | 1.279" (32.50mm) | - | 0.768" (19.50mm) | - | 2.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X51250D-C1-R0MAXIFLOW 24.25X24.25X9.5MM T766 |
123 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.374" (9.50mm) | - | 8.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

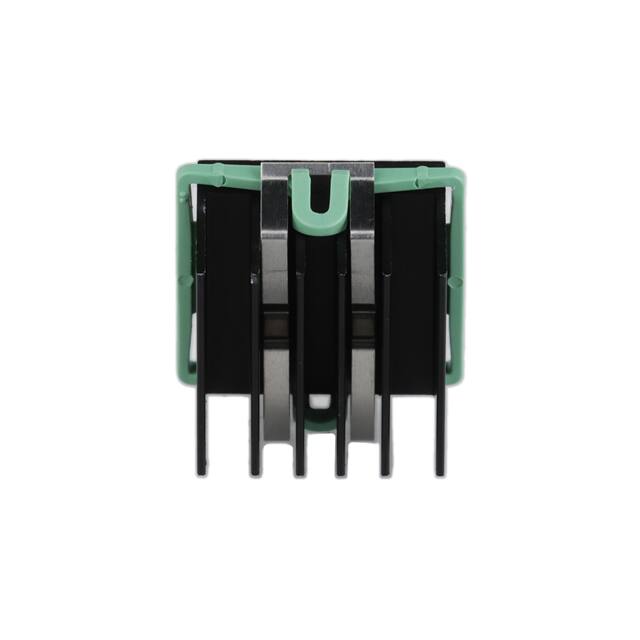

ATS-X53190K-C1-R0STR FIN 18.25X18.25X14.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-51190K-C1-R0HEAT SINK 19MM X 19MM X 14.5MM |
826 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.571" (14.50mm) | - | 10.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-53290R-C1-R0HEAT SINK 29MM X 29MM X 19.5MM |
568 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.768" (19.50mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

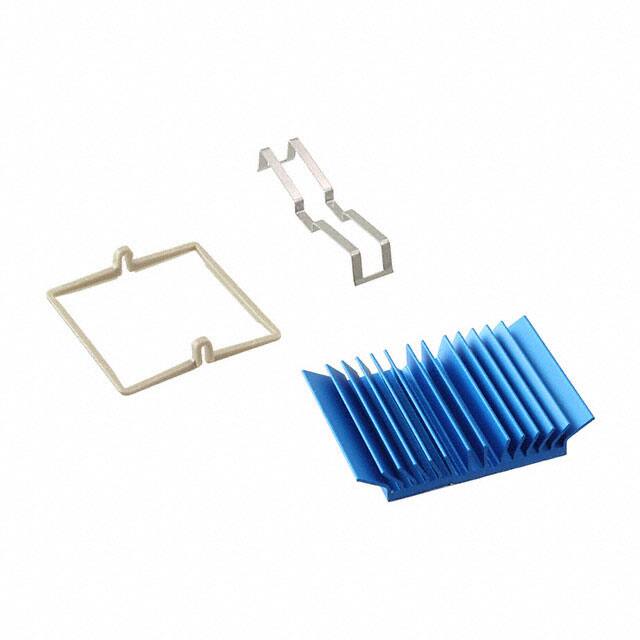

ATS-X50350B-C1-R0SUPERGRIP HEATSINK 35X35X7.5MM |
322 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.295" (7.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-53310R-C1-R0HEAT SINK 31MM X 31MM X 19.5MM |
615 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.768" (19.50mm) | - | 4.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61350R-C1-R0MAXIGRIP FANSINK 35X35X19.5MM |
779 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.768" (19.50mm) | - | 1.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X51170K-C1-R0MAXIFLOW 16.25X16.25X14.5MM T766 |
124 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.571" (14.50mm) | - | 10.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X53270K-C1-R0STR FIN 26.25X26.25X14.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-50170P-C1-R0HEAT SINK 17MM X 17MM X 17.5MM |
1,091 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.689" (17.50mm) | - | 8.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-53330R-C1-R0HEAT SINK 33MM X 33MM X 19.5MM |
198 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.768" (19.50mm) | - | 4.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
