Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-52310P-C1-R0HEAT SINK 31MM X 31MM X 17.5MM |
776 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.689" (17.50mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-48-C2-R0HEATSINK 25X25X35MM L-TAB T766 |
103 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.378" (35.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

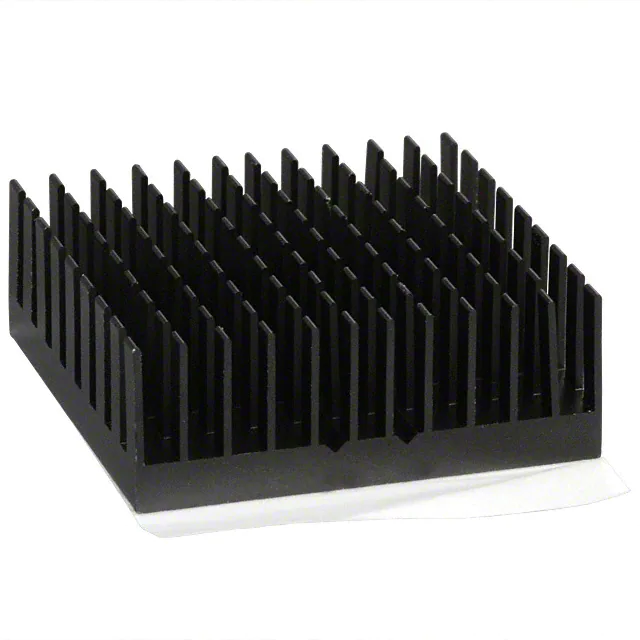

ATS-55400K-C1-R0HEAT SINK 40MM X 40MM X 14.5MM |
118 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.571" (14.50mm) | - | 5.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-05F-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
245 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
TV40GTHM,ZA1831 ISS 3 TV-40G |
185 |
|
Технический лист |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.496" (38.00mm) | 1.102" (28.00mm) | - | 0.866" (22.00mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-50190P-C1-R0HEAT SINK 19MM X 19MM X 17.5MM |
495 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.689" (17.50mm) | - | 7.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-55450K-C1-R0HEAT SINK 45MM X 45MM X 14.5MM |
103 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.571" (14.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-54330R-C1-R0HEAT SINK 33MM X 33MM X 19.5MM |
328 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.768" (19.50mm) | - | 4.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-54375R-C1-R0HEAT SINK 37.5 X 37.5 X 19.5MM |
814 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.768" (19.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-53425D-C1-R0HEAT SINK 42.5 X 42.5 X 9.5MM |
208 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.374" (9.50mm) | - | 8.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-53270K-C1-R0HEAT SINK 27MM X 27MM X 14.5MM |
681 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.571" (14.50mm) | - | 7.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52300G-C1-R0HEAT SINK 30MM X 30MM X 12.5MM |
137 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.492" (12.50mm) | - | 4.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-54450R-C1-R0HEAT SINK 45MM X 45MM X 19.5MM |
104 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.768" (19.50mm) | - | 2.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52310G-C1-R0HEAT SINK 31MM X 31MM X 12.5MM |
451 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.492" (12.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-56000-C3-R0HEAT SINK 30MM X 30MM X 9MM |
502 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.354" (9.00mm) | - | 4.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-07F-41-C2-R0HEATSINK 57.9X60.96X17.78MM T766 |
109 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01D-41-C2-R0HEATSINK 57.9X60.96X17.78MM T766 |
105 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-53300R-C1-R0HEAT SINK 30MM X 30MM X 19.5MM |
549 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.768" (19.50mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-12E-26-C2-R0HEATSINK 70X70X10MM XCUT T766 |
224 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 14.20°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

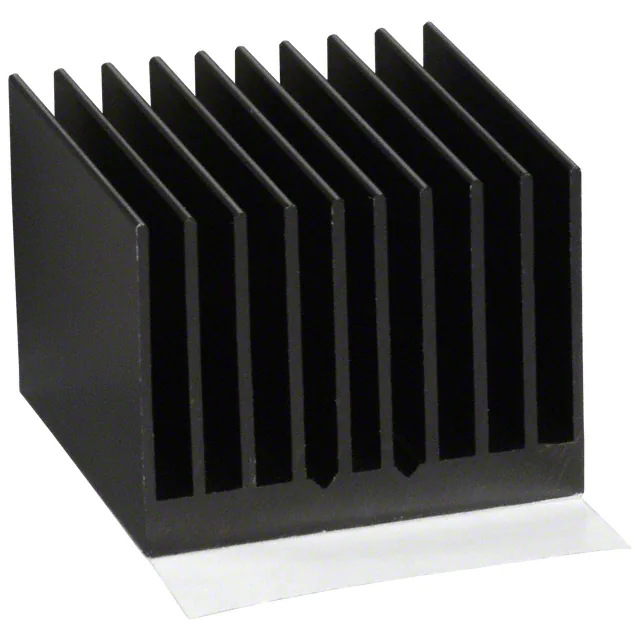

ATS-54325W-C1-R0HEAT SINK 32.5 X 32.5 X 24.5MM |
936 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.965" (24.50mm) | - | 3.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
