Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-X53450D-C1-R0STR FIN 44.25X44.25X9.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

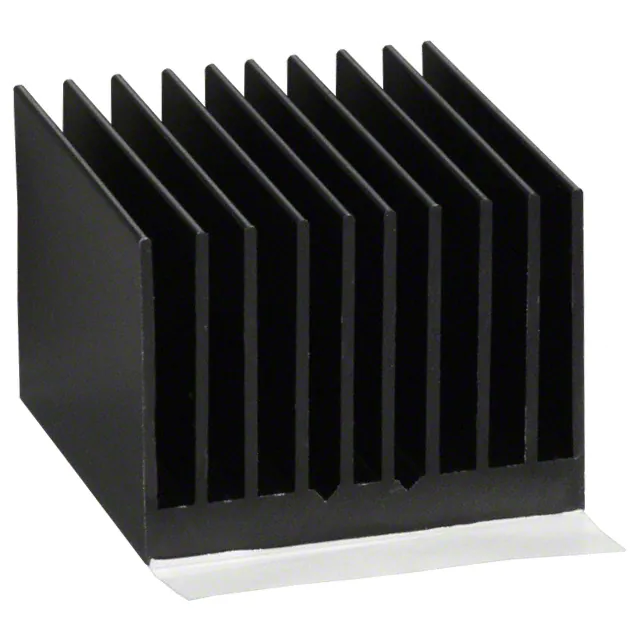

ATS-54330W-C1-R0HEAT SINK 33MM X 33MM X 24.5MM |
110 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.965" (24.50mm) | - | 3.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51310K-C1-R0HEAT SINK 31MM X 31MM X 14.5MM |
234 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.571" (14.50mm) | - | 4.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-26-C2-R0HEATSINK 70X70X10MM XCUT T766 |
113 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 14.20°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

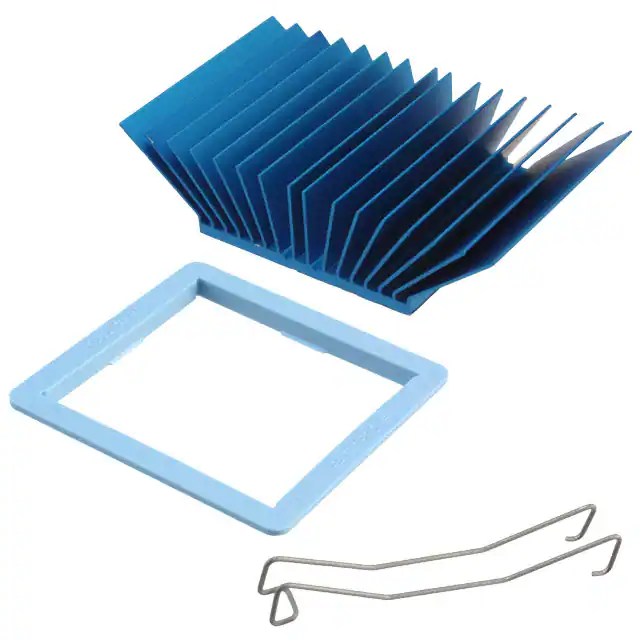

ATS-50450P-C3-R0HEAT SINK 45X45X17.5MM T766 |
340 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.689" (17.50mm) | - | 1.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

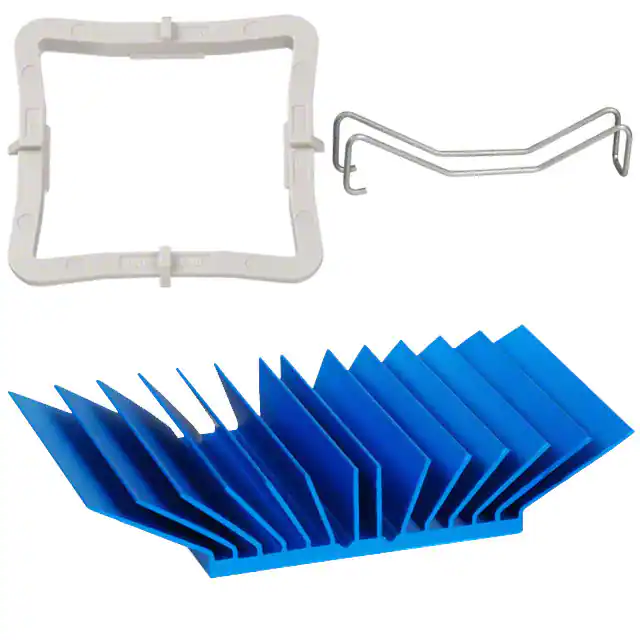

ATS-50350G-C1-R0HEAT SINK 35MM X 35MM X 12.5MM |
105 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.492" (12.50mm) | - | 3.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X51270K-C1-R0MAXIFLOW 26.25X26.25X14.5MM T766 |
121 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.571" (14.50mm) | - | 4.8°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X51425D-C1-R0MAXIFLOW 41.75X41.75X9.5MM T766 |
123 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.374" (9.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X53170B-C1-R0SUPERGRIP HEATSINK 17X17X7.5MM |
997 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.295" (7.50mm) | - | 24.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-1042-C2-R0HEATSINK 41X45X15MM BRASSPUSHPIN |
200 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 2.50°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
ATS-52290P-C1-R0HEAT SINK 29MM X 29MM X 17.5MM |
190 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.689" (17.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-50250P-C1-R0HEAT SINK 25MM X 25MM X 17.5MM |
196 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.689" (17.50mm) | - | 3.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-01H-28-C2-R0HEATSINK 70X70X15MM XCUT T766 |
101 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-53170K-C1-R0HEAT SINK 17MM X 17MM X 14.5MM |
323 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.571" (14.50mm) | - | 13.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51170D-C1-R0HEAT SINK 17MM X 17MM X 9.5MM |
185 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.374" (9.50mm) | - | 18.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50400G-C1-R0SUPERGRIP HEATSINK 40X40X12.5MM |
386 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.492" (12.50mm) | - | 2.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X51330K-C1-R0MAXIFLOW 32.25X32.25X14.5MM T766 |
124 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.299" (33.00mm) | 1.299" (33.00mm) | - | 0.571" (14.50mm) | - | 3.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-61330K-C1-R0MAXIGRIP FANSINK 33X33X14.5MM |
105 |
|
Технический лист |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.571" (14.50mm) | - | 2.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X50190B-C1-R0SUPERGRIP HEATSINK 19X19X7.5MM |
822 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.295" (7.50mm) | - | 16.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-53350D-C1-R0HEAT SINK 35MM X 35MM X 9.5MM |
176 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.374" (9.50mm) | - | 10.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
