Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1277522.25" WIDE X 36" FLATBACK HEATSI |
70 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.250" (57.15mm) | - | 1.250" (31.75mm) | - | - | 0.95°C/W | Aluminum | - |
.JPG)
|
1254216.624WX12" EXTRUSIO 16524 XX7031 |
89 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 6.624" (168.25mm) | - | 1.312" (33.32mm) | - | - | 0.33°C/W | Aluminum | - |
|
1277277.34" WIDE X 12" FLATBACK HEATSI |
96 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 7.340" (186.44mm) | - | 0.875" (22.23mm) | - | - | 0.45°C/W | Aluminum | - |
|
ATS-EXL61-1220-R0HEATSINK AL6063 1220X15X6MM |
10 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 0.591" (15.00mm) | - | 0.236" (6.00mm) | - | 29.00°C/W @ 200 LFM | 57.00°C/W | Aluminum | Degreased |
|
396-2ABHEATSINK 5.5X5X1.38" POWER/IGBT |
27 |
|
Технический лист |
396 | Bulk | Active | Board Level, Extrusion | Power Modules | Bolt On | Rectangular, Fins | 5.500" (139.70mm) | 5.000" (127.00mm) | - | 1.382" (35.10mm) | - | 0.60°C/W @ 500 LFM | 1.50°C/W | Aluminum | Black Anodized |
|
|
ATS-EXL58-1220-R0HEATSINK AL6063 1220X6X8MM |
6 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 0.236" (6.00mm) | - | 0.315" (8.00mm) | - | 45.00°C/W @ 200 LFM | 65.00°C/W | Aluminum | Degreased |
|
512-3UHEATSINK FOR PWR MOD/IGBT/RELAY |
25 |
|
Технический лист |
512 | Bulk | Active | Top Mount | Power Modules | Adhesive | Rectangular, Fins | 3.000" (76.20mm) | 7.200" (182.88mm) | - | 2.410" (61.21mm) | - | - | 0.90°C/W | Aluminum | - |
|
1277904.75" WIDE X 36" CENTER CHANNEL |
7 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.750" (120.65mm) | - | 0.461" (11.70mm) | - | - | 0.83°C/W | Aluminum | - |
|
|
ATS-EXL66-1220-R0HEATSINK AL6063 1220X25.4X4MM |
16 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.000" (25.40mm) | - | 0.157" (4.00mm) | - | 24.80°C/W @ 200 LFM | 55.00°C/W | Aluminum | Degreased |
|
ATS-EXL70-300-R0HEATSINK AL6063 300X36X35.6MM |
45 |
|
Технический лист |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 1.417" (36.00mm) | - | 1.402" (35.60mm) | - | 4.20°C/W @ 200 LFM | 9.70°C/W | Aluminum | Degreased |
|

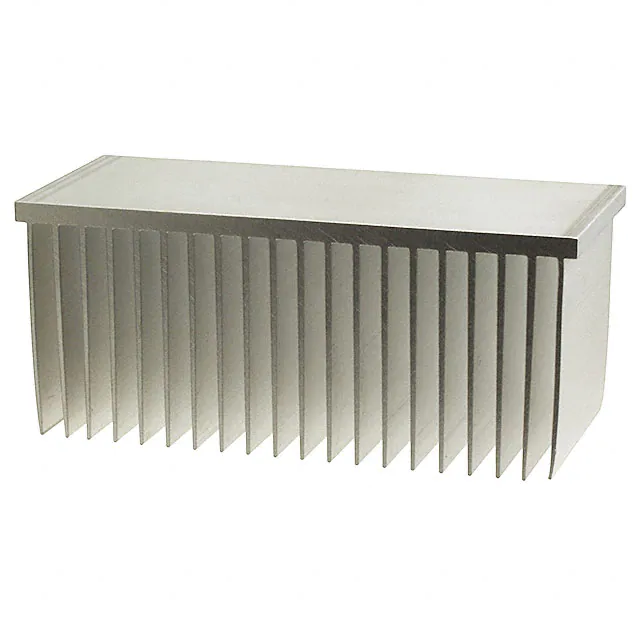

510-3UHEATSINK FOR PWR MOD/IGBT/RELAY |
17 |
|
Технический лист |
510 | Bulk | Active | Top Mount | Power Modules | Adhesive | Rectangular, Fins | 3.000" (76.20mm) | 7.380" (187.45mm) | - | 3.136" (79.65mm) | - | - | 0.56°C/W | Aluminum | - |
|

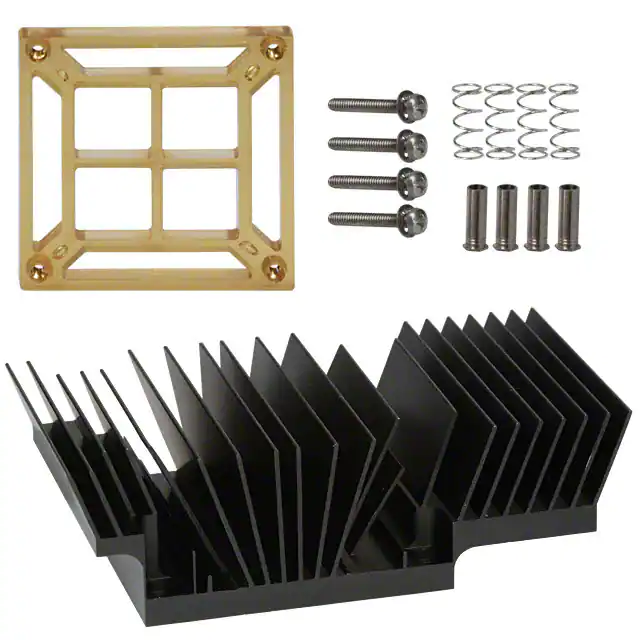

ATS-57001-C1-R0HEAT SINK 56MM X 56MM X 31MM |
99 |
|
Технический лист |
- | Bulk | Active | Top Mount | LGA | Push Pin | Square, Angled Fins | 2.205" (56.00mm) | 2.205" (56.00mm) | - | 1.220" (31.00mm) | - | 1.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1277502.125" WIDE X 36" FLATBACK HEATS |
54 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.125" (53.98mm) | - | 1.000" (25.40mm) | - | - | 1.10°C/W | Aluminum | - |
|
1277354.519" WIDE X 12" FLATBACK W/MOU |
13 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 4.519" (114.78mm) | - | 1.898" (48.21mm) | - | - | 0.60°C/W | Aluminum | - |
|
1277892.82" WIDE X 36" CENTER CHANNEL |
28 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.820" (71.63mm) | - | 0.937" (23.80mm) | - | - | 0.78°C/W | Aluminum | - |
|
1253975WX12" EXTRUSION 16338 XX2065 |
31 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.000" (127.00mm) | - | 1.750" (44.45mm) | - | - | 0.40°C/W | Aluminum | - |
|
ATS-EXL118-300-R0PCIE EXTRUSION PROFILE, AL6063 |
40 |
|
Технический лист |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 1.996" (50.70mm) | - | 0.484" (12.30mm) | - | 4.00°C/W @ 200 LFM | 19.90°C/W | Aluminum | Degreased |
|
1277491.845" WIDE X 36" FLATBACK HEATS |
15 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 1.845" (46.86mm) | - | 1.254" (31.85mm) | - | - | 0.85°C/W | Aluminum | - |
|
1253082.1WX36" EXTRUS 12554 XX8355-100 |
23 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.100" (53.34mm) | - | 1.000" (25.40mm) | - | - | 0.95°C/W | Aluminum | - |
|
|
ATS-EXL59-1220-R0HEATSINK AL6063 1220X14X16MM |
6 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 0.551" (14.00mm) | - | 0.630" (16.00mm) | - | 11.00°C/W @ 200 LFM | 38.00°C/W | Aluminum | Degreased |
