Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1277636.00" WIDE X 36" FLATBACK HEATSI |
22 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.000" (152.40mm) | - | 0.124" (3.15mm) | - | - | 0.70°C/W | Aluminum | - |
|
ATS-EXL67-1220-R0HEATSINK AL6063 1220X27.5X13.5MM |
30 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.083" (27.50mm) | - | 0.531" (13.50mm) | - | 5.80°C/W @ 200 LFM | 21.70°C/W | Aluminum | Degreased |
|

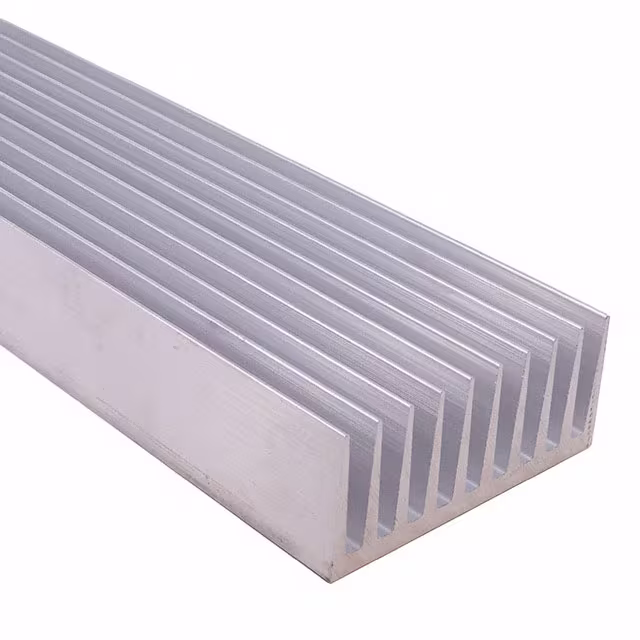

1253384.6WX36" EXTRUSION 12614 |
4 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.600" (116.84mm) | - | 0.900" (22.86mm) | - | - | 0.53°C/W | Aluminum | - |
|
1277737.00" WIDE X 36" FLATBACK HEATSI |
4 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 7.000" (177.80mm) | - | 0.360" (9.14mm) | - | - | 0.67°C/W | Aluminum | - |
|
ATS-EXL104-300-R0HEATSINK AL6063 300X108X34.3MM |
6 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 4.245" (107.82mm) | - | 1.350" (34.29mm) | - | 1.03°C/W @ 200 LFM | 5.09°C/W | Aluminum | Degreased |
|
ATS-EXL103-300-R0HEATSINK AL6063 300X115X33.6MM |
11 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 4.528" (115.00mm) | - | 1.323" (33.60mm) | - | 1.12°C/W @ 200 LFM | 4.61°C/W | Aluminum | Degreased |
|
1277409.00" WIDE X 12" FLATBACK W/ MOU |
17 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 9.000" (228.60mm) | - | 1.020" (25.91mm) | - | - | 0.53°C/W | Aluminum | - |
|
|
ATS-EXL71-1220-R0HEATSINK AL6063 1220X37X8MM |
6 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.457" (37.00mm) | - | 0.315" (8.00mm) | - | 9.50°C/W @ 200 LFM | 36.40°C/W | Aluminum | Degreased |
|
ATS-EXL116-300-R0EXTRUSION 300X51.6X42.5MM |
7 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 2.031" (51.60mm) | - | 1.673" (42.50mm) | - | 1.90°C/W @ 200 LFM | 5.70°C/W | Aluminum | Degreased |
|
ATS-EXL114-300-R0PCIE EXTRUSION PROFILE, AL6063 |
9 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 3.150" (80.00mm) | - | 1.181" (30.00mm) | - | 2.50°C/W @ 200 LFM | 6.20°C/W | Aluminum | Degreased |
|
ATS-EXL102-300-R0HEATSINK AL6063 300X179X27MM |
7 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 7.047" (179.00mm) | - | 1.063" (27.00mm) | - | 1.20°C/W @ 200 LFM | 4.01°C/W | Aluminum | Degreased |
|

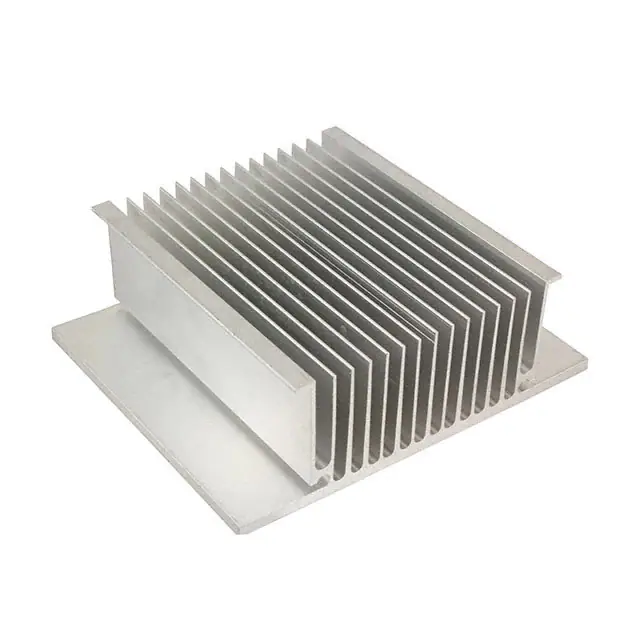

512-6MHEATSINK FOR PWR MOD/IGBT/RELAY |
10 |
|
Технический лист |
512 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 6.000" (152.40mm) | 7.200" (182.88mm) | - | 2.350" (59.69mm) | - | - | 0.65°C/W | Aluminum | - |
|
1277387.62" WIDE X 12" FLATBACK W/MOUN |
8 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 7.620" (193.55mm) | - | 1.655" (42.04mm) | - | - | 0.31°C/W | Aluminum | - |
|
1253263.79WX36" EXTRUSION 16304 XX5079 |
24 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 3.790" (96.27mm) | - | 2.000" (50.80mm) | - | - | 0.38°C/W | Aluminum | - |
|
1277605.748" WIDE X 12" FLATBACK HEATS |
7 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.748" (146.00mm) | - | 0.905" (23.00mm) | - | - | 0.39°C/W | Aluminum | - |
|
1277716.75" WIDE X 36" FLATBACK HEATSI |
2 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.750" (171.45mm) | - | 1.630" (41.40mm) | - | - | 0.33°C/W | Aluminum | - |
|
ATS-EXL119-300-R0PCIE EXTRUSION PROFILE, AL6063 |
16 |
|
Технический лист |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 3.740" (95.00mm) | - | 0.551" (14.00mm) | - | 2.10°C/W @ 200 LFM | 14.70°C/W | Aluminum | Degreased |
|
1277757.34" WIDE X 36" FLATBACK HEATSI |
9 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 7.340" (186.44mm) | - | 0.875" (22.23mm) | - | - | 0.45°C/W | Aluminum | - |
|
1277165.86" X 12" FLATBACK HEATSINK 19 |
15 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.860" (148.84mm) | - | 1.988" (50.50mm) | - | - | 0.24°C/W | Aluminum | - |
|
1253684.125X36" EXTRUSION 2656 XX5138 |
8 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.125" (104.77mm) | - | 1.750" (44.45mm) | - | - | 0.48°C/W | Aluminum | - |
