Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

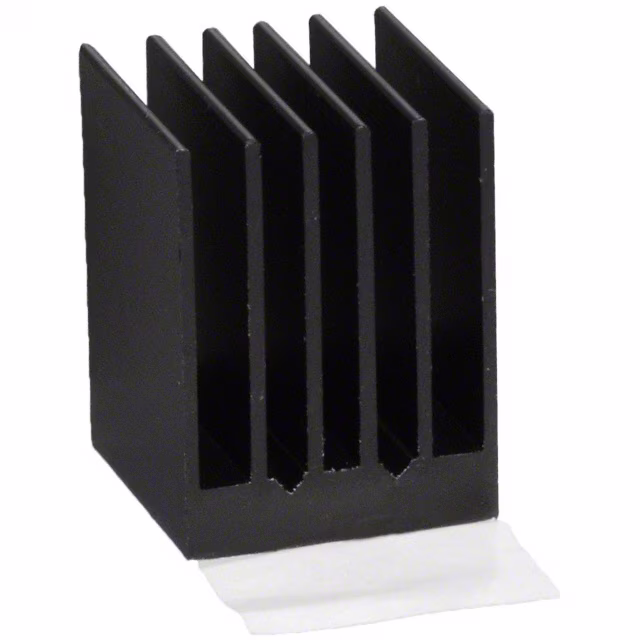

ATS-54190W-C1-R0HEAT SINK 19MM X 19MM X 24.5MM |
31 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.965" (24.50mm) | 0.3W @ 20°C | 6.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

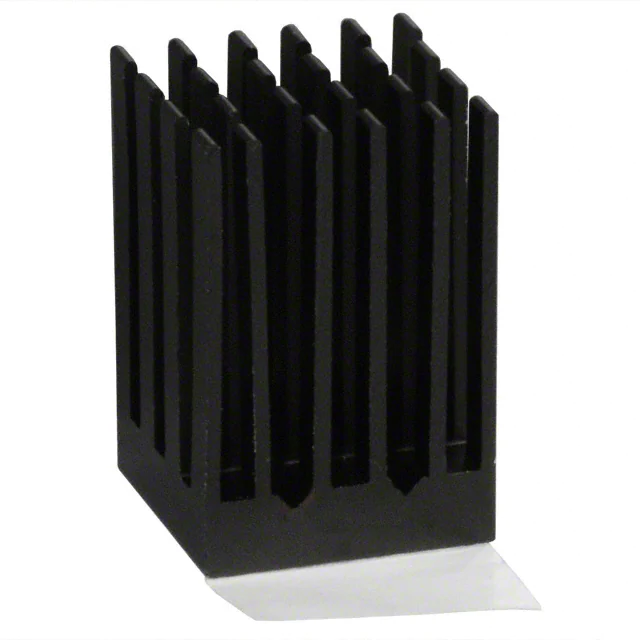

ATS-55170W-C1-R0HEAT SINK 17MM X 17MM X 24.5MM |
57 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.965" (24.50mm) | - | 8.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

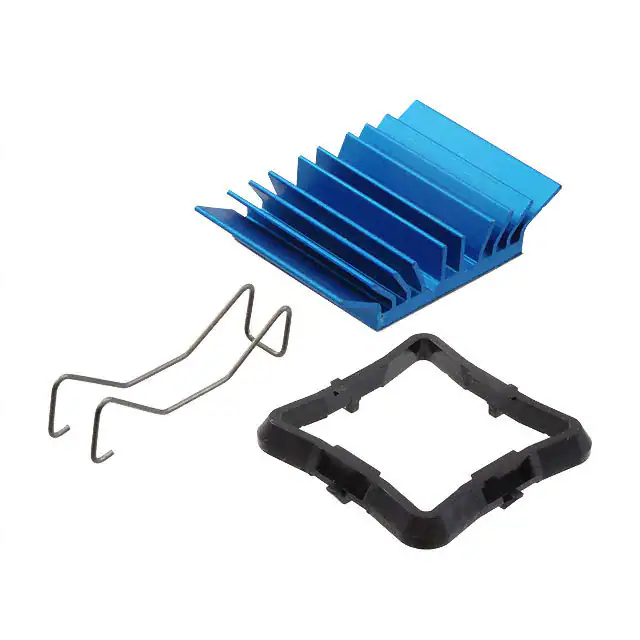

ATS-50250B-C3-R0HEAT SINK PASSIVE BGA SPREAD CLP |
67 |
|
- |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.295" (7.50mm) | - | 8.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-51310D-C1-R0HEAT SINK 31MM X 31MM X 9.5MM |
96 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.374" (9.50mm) | - | 7.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

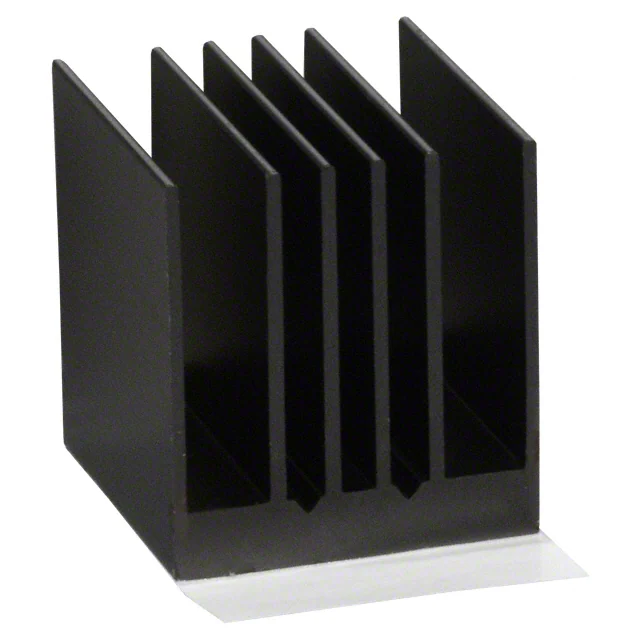

ATS-54230W-C1-R0HEAT SINK 23MM X 23MM X 24.5MM |
64 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.965" (24.50mm) | - | 5.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

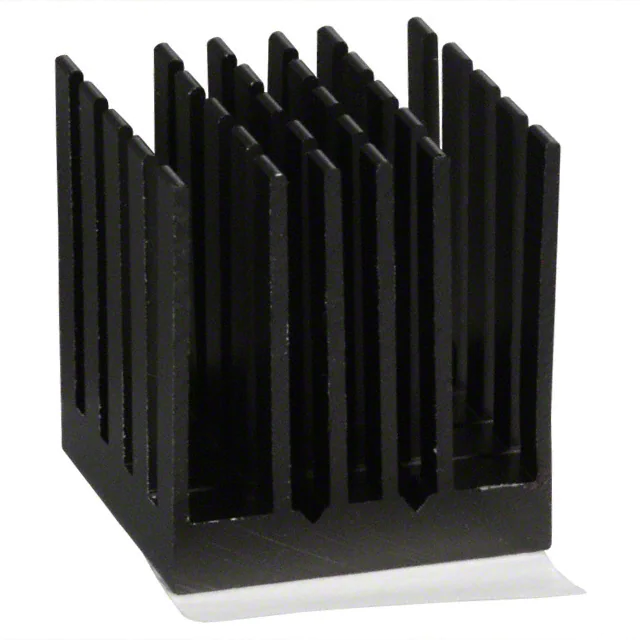

ATS-55230W-C1-R0HEAT SINK 23MM X 23MM X 24.5MM |
100 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.965" (24.50mm) | - | 6.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51270K-C1-R0HEAT SINK 27MM X 27MM X 14.5MM |
98 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.571" (14.50mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-53270R-C1-R0HEAT SINK 27MM X 27MM X 19.5MM |
100 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.768" (19.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

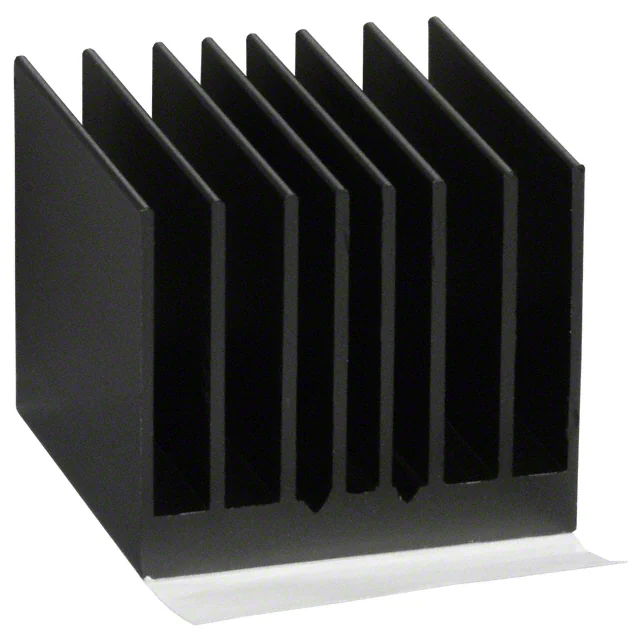

ATS-54300W-C1-R0HEAT SINK 30MM X 30MM X 24.5MM |
31 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.965" (24.50mm) | - | 3.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

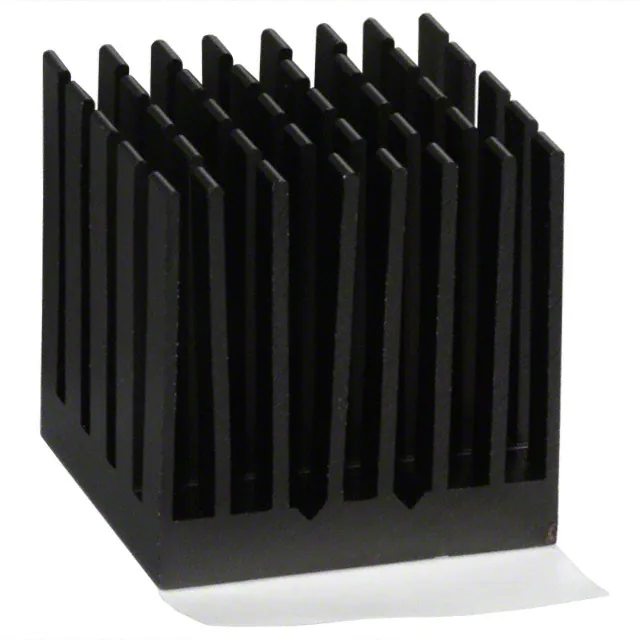

ATS-55250W-C1-R0HEAT SINK 25MM X 25MM X 24.5MM |
100 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.965" (24.50mm) | - | 4.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX070070025-30-C3-R0HEATSINK 70X70X25MM XCUT FP |
67 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-52210P-C1-R0HEAT SINK 21MM X 21MM X 17.5MM |
48 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.689" (17.50mm) | - | 5.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-53170D-C1-R0HEAT SINK 17MM X 17MM X 9.5MM |
23 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.374" (9.50mm) | - | 24.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52230P-C1-R0HEAT SINK 23MM X 23MM X 17.5MM |
100 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.689" (17.50mm) | - | 5.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

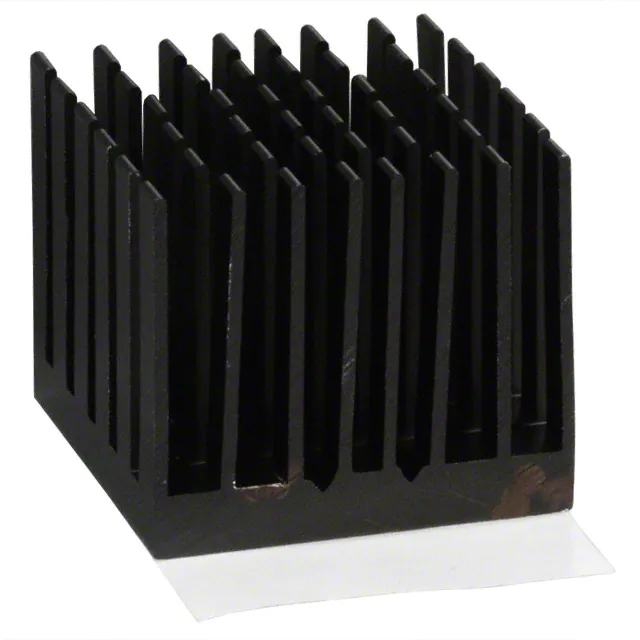

ATS-55290W-C1-R0HEAT SINK 29MM X 29MM X 24.5MM |
96 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.965" (24.50mm) | - | 4.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

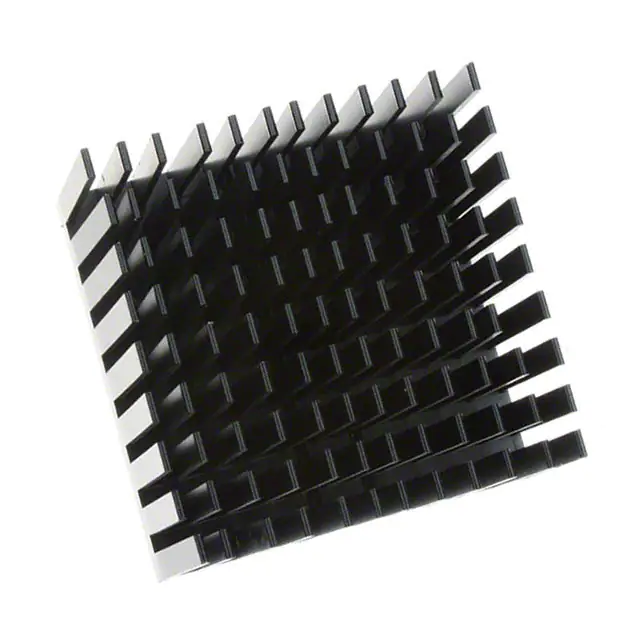

ATS-54425W-C1-R0HEAT SINK 42.5 X 42.5 X 24.5MM |
30 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.965" (24.50mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-53270D-C1-R0HEAT SINK 27MM X 27MM X 9.5MM |
100 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.374" (9.50mm) | - | 14.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51450K-C1-R0HEAT SINK 45MM X 45MM X 14.5MM |
58 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.571" (14.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-28-C2-R0HEATSINK 70X70X15MM XCUT T766 |
95 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-53310D-C1-R0HEAT SINK 31MM X 31MM X 9.5MM |
87 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.374" (9.50mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
