Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

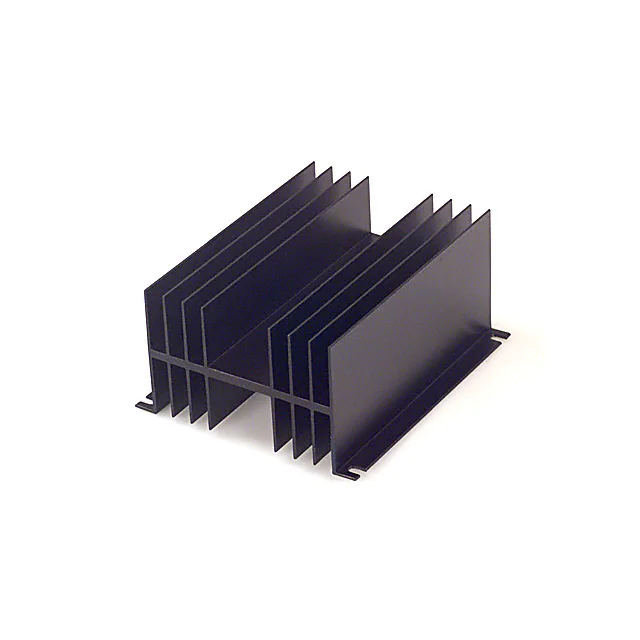

423KHEATSINK POWER NO MNT HOLES BLK |
95 |
|
Технический лист |
423 | Bulk | Active | Board Level, Extrusion | TO-3, DO-5, Stud Mount | Press Fit | Rectangular, Fins | 5.421" (139.70mm) | 4.750" (120.65mm) | - | 2.625" (66.67mm) | 50.0W @ 47°C | 0.50°C/W @ 250 LFM | 0.96°C/W | Aluminum | Black Anodized |
|
|
ATS-NVA-2781-C1-R0ACTIVE HEATSINK 63X40X8MM NVIDIA |
92 |
|
Технический лист |
- | Box | Active | Top Mount | Nvidia Jetson Xavier NX | Bolt On, Thermal Material | Rectangular, Fins | 2.480" (63.00mm) | 1.575" (40.00mm) | - | 0.315" (8.00mm) | - | - | 1.60°C/W | Aluminum | Black Anodized |
|
ATS-61600R-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
69 |
|
Технический лист |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.480" (63.00mm) | 2.480" (63.00mm) | - | 0.768" (19.50mm) | - | - | - | - | - |
|

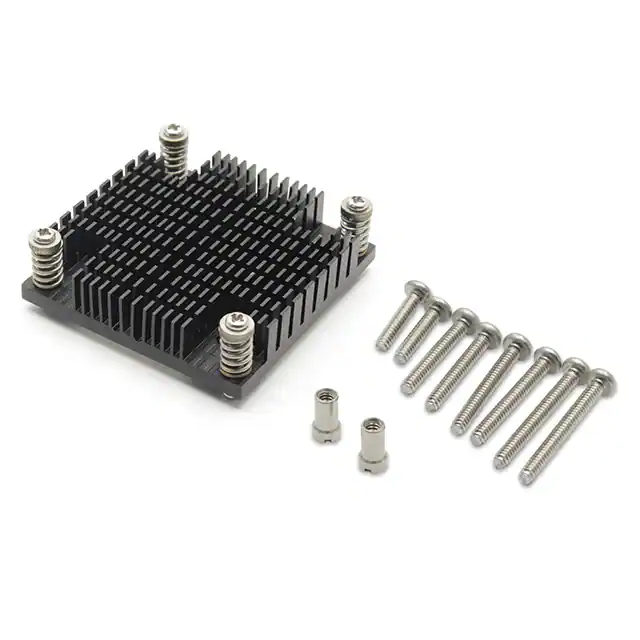

ATS-61600K-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
63 |
|
Технический лист |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.480" (63.00mm) | 2.480" (62.99mm) | - | 0.571" (14.50mm) | - | - | - | - | - |
|
1277176.00" WIDE X 12" FLATBACK HEATSI |
50 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 6.000" (152.40mm) | - | 0.124" (3.15mm) | - | - | 0.70°C/W | Aluminum | - |
|
1277104.00" WIDE X 12" FLATBACK HEATSI |
17 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 4.000" (101.60mm) | - | 0.750" (19.05mm) | - | - | 0.93°C/W | Aluminum | - |
|
1276964.60" WIDE X 12" DC/DC HEATSINK |
14 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 4.600" (116.84mm) | - | 0.930" (23.62mm) | - | - | 0.48°C/W | Aluminum | - |
|
1253795WX12" EXTRUSION 16414 XX7332 |
29 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.000" (127.00mm) | - | 1.500" (38.10mm) | - | - | 0.63°C/W | Aluminum | - |
|
ATS-61700W-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
39 |
|
Технический лист |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.913" (74.00mm) | 2.913" (74.00mm) | - | 0.965" (24.50mm) | - | - | - | - | - |
|
1253193WX12" EXTRUSION 9099 |
50 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 3.000" (76.20mm) | - | 2.000" (50.80mm) | - | - | 0.38°C/W | Aluminum | - |
|
|
PCH-IF-110HEAT SINK 80X100X110MM |
14 |
|
Технический лист |
- | Box | Active | Top Mount | SSR | Bolt On | Rectangular, Fins | 4.330" (109.98mm) | 3.940" (100.08mm) | - | 3.190" (81.03mm) | - | - | - | - | - |
|
1253253.79WX12" EXTRUSION 16304 XX5079 |
51 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 3.790" (96.27mm) | - | 2.000" (50.80mm) | - | - | 0.38°C/W | Aluminum | - |
|
122551HEATSINK EXTRUSION 12.32" |
62 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 12.320" (312.93mm) | 3.420" (86.87mm) | - | 1.630" (41.40mm) | - | 30.00°C/W @ 200 LFM | 0.95°C/W | Aluminum | - |
|
1253734.375WX12" EXTRUSIO 16296 XX1527 |
17 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 4.375" (111.13mm) | - | 1.290" (32.77mm) | - | - | 0.35°C/W | Aluminum | - |
|
|
PCH-H-150HEAT SINK 55X142X150MM |
16 |
|
Технический лист |
- | Box | Active | Top Mount | SSR | Bolt On | Rectangular, Fins | 5.590" (141.99mm) | 5.910" (150.00mm) | - | 2.170" (55.12mm) | - | - | 0.90°C/W | - | - |
|
396-1ABHEATSINK 3X5X1.38" POWER/IGBT |
38 |
|
Технический лист |
396 | Bulk | Active | Board Level | Power Modules | Bolt On | Rectangular, Fins | 3.000" (76.20mm) | 5.000" (127.00mm) | - | 1.382" (35.10mm) | - | 1.10°C/W @ 500 LFM | 1.80°C/W | Aluminum | Black Anodized |
|
1277155.86" X 12" FLATBACK HEATSINK 14 |
32 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.860" (148.84mm) | - | 2.000" (50.80mm) | - | - | 0.28°C/W | Aluminum | - |
|
395-2ABHEATSINK 5.5X5X2.5" POWER/IGBT |
58 |
|
Технический лист |
395 | Bulk | Active | Board Level, Extrusion | Power Modules | Bolt On | Rectangular, Fins | 5.500" (139.70mm) | 5.000" (127.00mm) | - | 2.500" (63.50mm) | - | 0.30°C/W @ 500 LFM | 0.90°C/W | Aluminum | Black Anodized |
|
1276849.333" WIDE X 12" FLATBACK HEATS |
94 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 9.333" (237.06mm) | - | 0.905" (23.00mm) | - | - | 0.26°C/W | Aluminum | - |
|
1253502.28WX36" EXTRUSION 14228 |
29 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.280" (57.91mm) | - | 0.935" (23.75mm) | - | - | 0.07°C/W | Aluminum | - |
