Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ATS-NVP-3353-C2-R0HEATSINK 63X40X8MM NVIDIA JETSON |
74 |
|
Технический лист |
- | Box | Active | Top Mount | Nvidia Jetson TX2 NX Module | Bolt On, Thermal Material | Rectangular, Fins | 2.480" (63.00mm) | 1.575" (40.00mm) | - | 0.315" (8.00mm) | - | - | 1.60°C/W | Aluminum | Black Anodized |
|
1253552.28WX12" EXTRUSION 14362 |
29 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.280" (57.91mm) | - | 0.455" (11.56mm) | - | - | 1.00°C/W | Aluminum | - |
|
1253312.4WX12" EXTRUSION 12613 |
65 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.400" (60.96mm) | - | 0.900" (22.86mm) | - | - | 1.03°C/W | Aluminum | - |
|
ATS-1108-C1-R0FULL BRICK HEATSINK 117X61X6.1MM |
18 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | Full Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 4.598" (116.80mm) | 2.401" (61.00mm) | - | 0.240" (6.10mm) | - | 9.40°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
|
ATS-NVP-2781-C2-R0HEATSINK 63X40X8MM NVIDIA JETSON |
53 |
|
Технический лист |
- | Box | Active | Top Mount | Nvidia Jetson Xavier NX | Bolt On, Thermal Material | Rectangular, Fins | 2.480" (63.00mm) | 1.575" (40.00mm) | - | 0.315" (8.00mm) | - | - | 1.60°C/W | Aluminum | Black Anodized |
|
ATS-X53230B-C1-R0SUPERGRIP HEATSINK 23X23X7.5MM |
39 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.295" (7.50mm) | - | 16.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

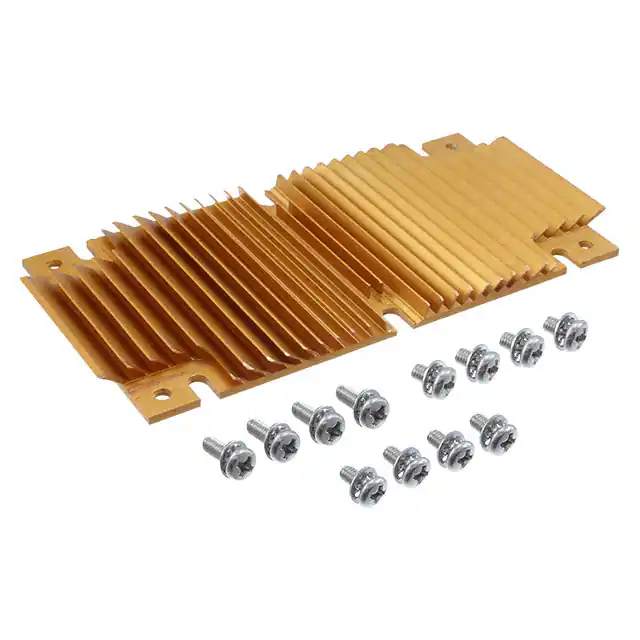

ATS-1148-C1-R0FULL BRICK HEATSINK 61X118X6.1MM |
56 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | Full Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.402" (61.00mm) | 4.646" (118.00mm) | - | 0.240" (6.10mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
1253132.875WX12" EXTRUSIO 16078 XX2013 |
43 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.875" (73.03mm) | - | 1.312" (33.32mm) | - | - | 0.58°C/W | Aluminum | - |
|
HS-ZX-SET-R2ACC HEATSINK MA-ZX*/AX3 |
47 |
|
Технический лист |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-X50270B-C1-R0SUPERGRIP HEATSINK 27X27X7.5MM |
90 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.295" (7.50mm) | - | 7.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
1253072.1WX12" EXTRUS 12554 XX8355-100 |
77 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.100" (53.34mm) | - | 1.000" (25.40mm) | - | - | 0.95°C/W | Aluminum | - |
|
|
PCH-M-120HEAT SINK 67X123X110MM |
25 |
|
Технический лист |
- | Box | Active | Top Mount | SSR | Bolt On | Rectangular, Fins | 4.840" (122.94mm) | 4.330" (109.98mm) | - | 2.640" (67.06mm) | - | - | 1.10°C/W | - | - |
|
ATS-EXL63-300-R0HEATSINK AL6063 300X25X35MM |
11 |
|
Технический лист |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 0.984" (25.00mm) | - | 1.378" (35.00mm) | - | 2.50°C/W @ 200 LFM | 13.00°C/W | Aluminum | Degreased |
|

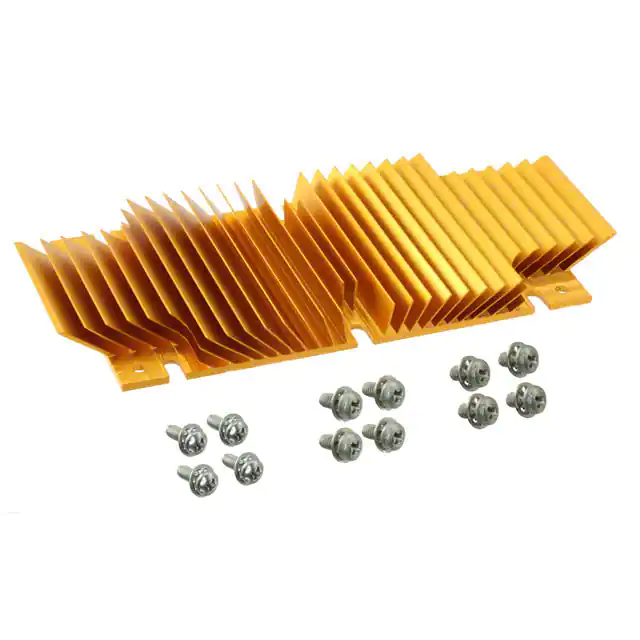

ATS-1149-C1-R0FULL BRICK HEATSINK 61X118X11.4M |
100 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | Full Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.402" (61.00mm) | 4.646" (118.00mm) | - | 0.449" (11.40mm) | - | 1.00°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|

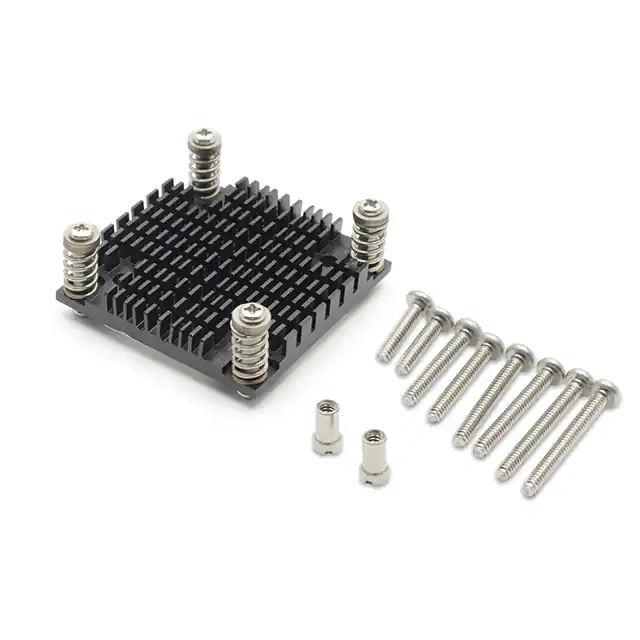

ATS-61500D-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
97 |
|
Технический лист |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.087" (53.02mm) | 2.087" (53.02mm) | - | 0.374" (9.50mm) | - | - | - | - | - |
|
ATS-61500K-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
6 |
|
Технический лист |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.087" (53.02mm) | 2.087" (53.02mm) | - | 0.571" (14.50mm) | - | - | - | - | - |
|

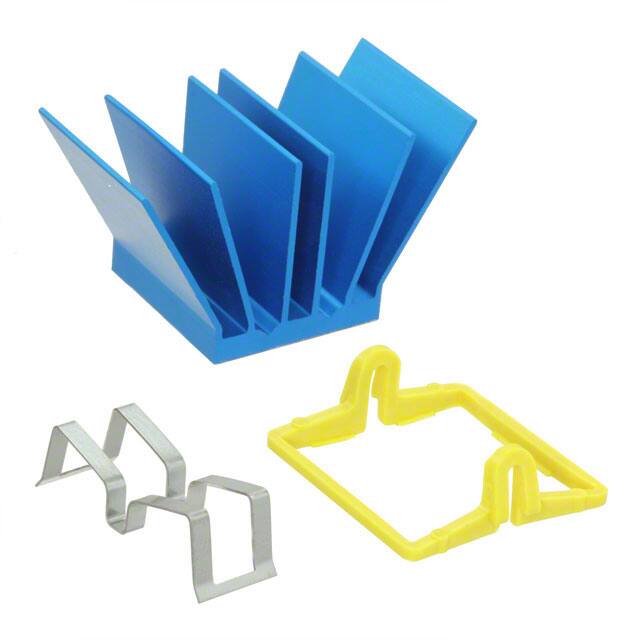

ATS-X50170P-C1-R0SUPERGRIP HEATSINK 17X17X17.5MM |
79 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.689" (17.50mm) | - | 8.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
SKV606021-CUCOPPER HEATSINK 60X60X21MM |
95 |
|
Технический лист |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.827" (21.00mm) | - | 0.80°C/W @ 300 LFM | 7.20°C/W | Copper | - |
|
ATS-EXL73-300-R0HEATSINK AL6063 300X45X10MM |
62 |
|
Технический лист |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 6.80°C/W @ 200 LFM | 18.60°C/W | Aluminum | Degreased |
|
1253012.80WX12" EXTRUSION 11201 XX6998 |
31 |
|
Технический лист |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.800" (71.12mm) | - | 1.250" (31.75mm) | - | - | 0.73°C/W | Aluminum | - |
