Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSB24-252510HEAT SINK, BGA,25 X 25 X 10 MM |
322 |
|
Технический лист |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | 4.14W @ 75°C | 6.50°C/W @ 200 LFM | 18.10°C/W | Aluminum Alloy | Black Anodized |
|
6237BGBOARD LEVEL HEATSINK .375"TO-220 |
631 |
|
Технический лист |
- | Bulk | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 0.700" (17.78mm) | 0.900" (22.86mm) | - | 0.375" (9.52mm) | 2.0W @ 50°C | 14.00°C/W @ 200 LFM | 25.00°C/W | Aluminum | Black Anodized |
|
HSE04-251265-2HEAT SINK, EXTRUSION, TO-218/TO- |
144 |
|
Технический лист |
HSE | Bag | Active | Top Mount | TO-218, TO-220 | Bolt On | Rectangular, Fins | 0.984" (25.00mm) | 0.472" (12.00mm) | - | 0.256" (6.50mm) | 2.47W @ 75°C | 16.60°C/W @ 200 LFM | 30.38°C/W | Aluminum Alloy | Black Anodized |
|
3084MINI ALUMINUM HEAT SINK FOR RASP |
672 |
|
Технический лист |
- | Bulk | Active | Top Mount | Raspberry Pi, Raspberry Pi 3 | Thermal Tape, Adhesive (Included) | Square, Fins | 0.512" (13.00mm) | 0.512" (13.00mm) | - | 0.118" (3.00mm) | - | - | - | Aluminum | - |
|
HSE-B20254-035HHEAT SINK, EXTRUSION, TO-220,25. |
469 |
|
Технический лист |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 5.8W @ 75°C | 3.28°C/W @ 200 LFM | 12.93°C/W | Aluminum Alloy | Black Anodized |
|

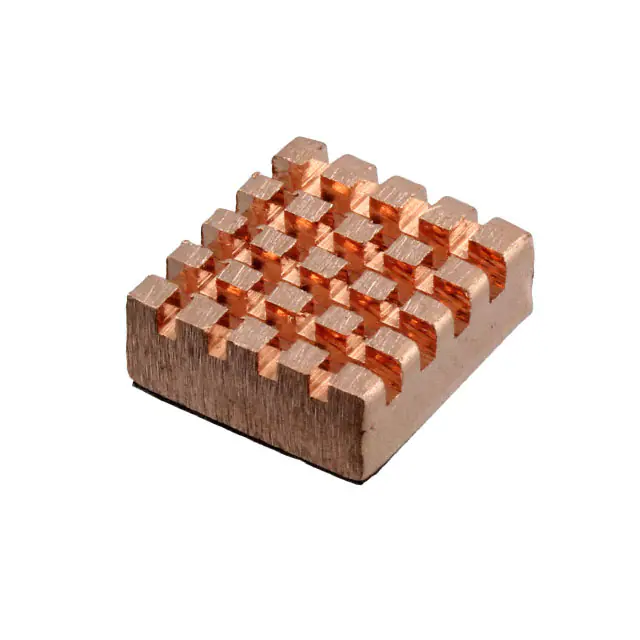

FIT0367RASPBERRY PI COPPER HEATSINK |
693 |
|
Технический лист |
- | Bulk | Active | Top Mount | Raspberry Pi | Thermal Tape, Adhesive (Included) | Rectangular | 0.520" (13.20mm) | 0.476" (12.10mm) | - | - | - | - | - | Copper | - |
|

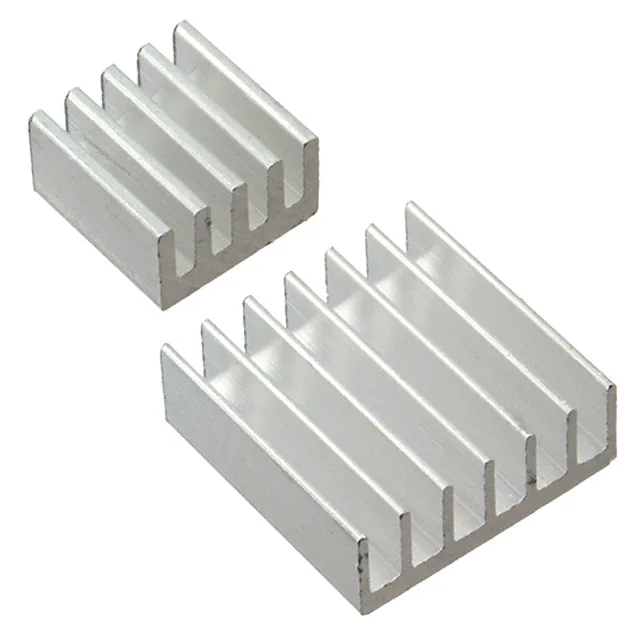

114990125HEAT SINK KIT FOR RASPBERRY PI |
418 |
|
Технический лист |
- | Bulk | Active | Top Mount Kit | Raspberry Pi B+ | Adhesive | Square, Fins | 2.598" (66.00mm) | 2.598" (66.00mm) | - | 2.598" (66.00mm) | - | - | - | Aluminum | - |
|
TGH-0190-01ALUMINIUM HEAT SINK 19X19MM |
93 |
|
Технический лист |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.197" (5.00mm) | - | - | - | Aluminum | Black Anodized |
|
|
ATS015015003-SF-4BHEATSINK 15X15X3MM |
100 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.591" (15.00mm) | 0.590" (15.00mm) | - | 0.118" (3.00mm) | - | 63.31°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
V8818QHEATSINK ALUM ANOD |
72 |
|
Технический лист |
- | Tray | Active | Board Level | SOT-32, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.575" (40.00mm) | 0.748" (19.00mm) | - | 0.844" (21.44mm) | - | - | 8.80°C/W | Aluminum | Black Anodized |
|
|
ATS010010007-SF-1FHEATSINK 10X10X7MM |
46 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.276" (7.00mm) | - | 44.41°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS012012006-MF-2EMAXIFLOW HEATSINK 12X12X6MM |
37 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.236" (6.00mm) | - | 39.81°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
M46165B021000GMAX CLIP HEATSINK |
66 |
|
Технический лист |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Fins | 1.620" (41.15mm) | 1.181" (30.00mm) | - | 1.909" (48.50mm) | - | - | - | Aluminum | Black Anodized |
|
|
ATS044044004-PF028PINFIN HEATSINK 43.5X43.5X3.8MM |
33 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.713" (43.50mm) | 1.713" (43.50mm) | - | 0.150" (3.81mm) | - | 8.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
537-95ABHEATSINK DC DC 1/4 BRICK VERT |
70 |
|
Технический лист |
537 | Bulk | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.950" (24.13mm) | - | 2.10°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
FIT0506PURE COPPER HEATSINK PACK OF 5 ( |
47 |
|
Технический лист |
LattePanda | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Rectangular | 0.520" (13.20mm) | 0.480" (12.19mm) | - | 0.189" (4.80mm) | - | - | - | Copper | - |
|
|
FIT0980RASPBERRY PI 5 ALUMINUM FAN |
28 |
|
- |
- | Bulk | Active | Top Mount with Fan | Raspberry Pi 5 | Push Pin | Rectangular, Pin Fins | 2.559" (65.00mm) | 1.772" (45.00mm) | - | 0.709" (18.00mm) | - | - | - | Aluminum Alloy | - |
|
FIT0816RASPBERRYPISINGLECOOLINGFANKIT ( |
79 |
|
- |
- | Bulk | Active | Top Mount | Raspberry Pi 3B, 3B+, 4B | Thermal Tape, Adhesive (Included) | Square, Pin Fins | - | - | - | - | - | - | - | Aluminum | Black Anodized |
|
ATS-FPS058037011-32-C2-R0HEATSINK 57.9X36.83X11.43MM FP |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.450" (11.43mm) | - | 21.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

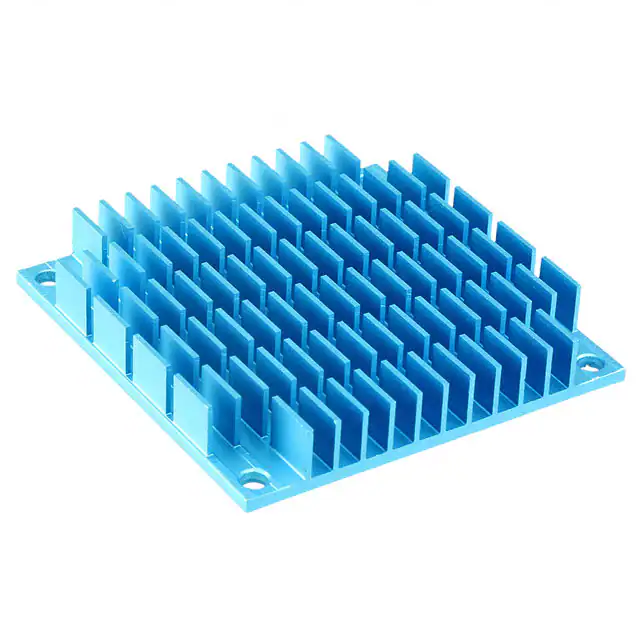

ATS-CPX060060010-129-C2-R0HEATSINK 60X60X10MM XCUT CP |
66 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 8.65°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
