Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G3NE-220TL-US DC12SSR RELAY SPST-NO 20A 75-264V |
2 |
|
Технический лист |
G3NE | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 9.6 ~ 14.4VDC | 75 V ~ 264 V | 20 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
|
G3NE-220TL-US DC24SSR RELAY SPST-NO 20A 75-264V |
1 |
|
Технический лист |
G3NE | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 19.2 ~ 28.8VDC | 75 V ~ 264 V | 20 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
MCX380D5SSR RELAY SPST-NO 5A 48-530V |
0 |
|
Технический лист |
MCX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 15VDC | 48 V ~ 530 V | 5 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|
RV8S-S-A240-D6SSR RELAY SPST-NO 2A 24-280V |
2 |
|
Технический лист |
RV8 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4.5 ~ 12VDC | 24 V ~ 280 V | 2 A | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
G3RV-202SL DC24SSR RELAY SPST-NO 2A 100-240V |
0 |
|
Технический лист |
G3RV | Bulk | Active | Socketable | SPST-NO (1 Form A) | AC | 24VDC | 100 V ~ 240 V | 2 A | - | Plug In | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
RV8S-L-A240-D6SSR RELAY SPST-NO 2A 24-280V |
5 |
|
Технический лист |
RV8 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4.5 ~ 12VDC | 24 V ~ 280 V | 2 A | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
ASR-SV240D20RW-LSSR RELAY SPST-NO 20A 24-280V |
1 |
|
Технический лист |
SV | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 24 V ~ 280 V | 20 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
RV8S-S-A240-A120SSR RELAY SPST-NO 2A 24-280V |
3 |
|
Технический лист |
RV8 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 96 ~ 132VAC | 24 V ~ 280 V | 2 A | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
ASR-SH480D25ZWSSR RELAY SPST-NO 25A 24-530V |
5 |
|
Технический лист |
SH | Box | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 530 V | 25 A | - | PC Pin | -30°C ~ 100°C | 4-SIP | CE, cURus | - | - |
|
EL240A5-05SSR RELAY SPST-NO 5A 24-280V |
1 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 8VDC | 24 V ~ 280 V | 5 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
G3S-201PL-PD DC24SSR RELAY SPST-NO 1.2A 75-264V |
2 |
|
Технический лист |
G3S | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 19.2 ~ 28.8VDC | 75 V ~ 264 V | 1.2 A | - | PC Pin | -30°C ~ 100°C | - | CSA, UR | - | - |
|
|
G3S-201PL-PD-US DC12SSR RELAY SPST-NO 1.2A 75-264V |
2 |
|
Технический лист |
G3S | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 9.6 ~ 14.4VDC | 75 V ~ 264 V | 1.2 A | - | PC Pin | -30°C ~ 100°C | - | CSA, UR | - | - |
|
1127530000SSR RELAY SPST-NO 1A 24-240V |
2 |
|
Технический лист |
TERMSERIES | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 24 V ~ 240 V | 1 A | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|
|
G3NE-210T-US DC12SSR RELAY SPST-NO 10A 75-264V |
0 |
|
Технический лист |
G3NE | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 9.6 ~ 14.4VDC | 75 V ~ 264 V | 10 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
|
EL240A5R-05SSR RELAY SPST-NO 5A 24-280V |
4 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 8VDC | 24 V ~ 280 V | 5 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
|
EL240A5R-24SSR RELAY SPST-NO 5A 24-280V |
0 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 21 ~ 27VDC | 24 V ~ 280 V | 5 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
|
G3NE-220T-US DC24SSR RELAY SPST-NO 20A 75-264V |
3 |
|
Технический лист |
G3NE | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 19.2 ~ 28.8VDC | 75 V ~ 264 V | 20 A | - | Quick Connect - 0.110"/0.250" | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|

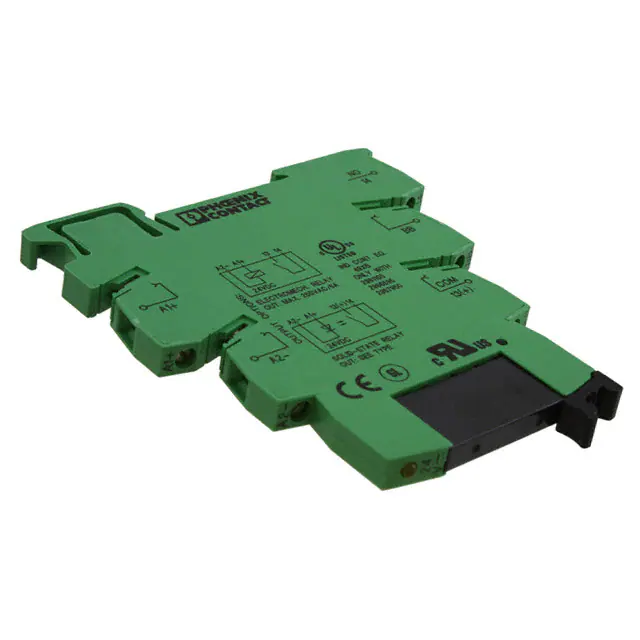

2967947SSR RELAY SPST-NO 750MA 24-253V |
2 |
|
Технический лист |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 24VDC | 24 V ~ 253 V | 750 mA | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|
CMXE60D5SSR RELAY SPST-NO 5A 0-60V |
0 |
|
Технический лист |
CMX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 20 ~ 28VDC | 0 V ~ 60 V | 5 A | 100 mOhms | PC Pin | -10°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|

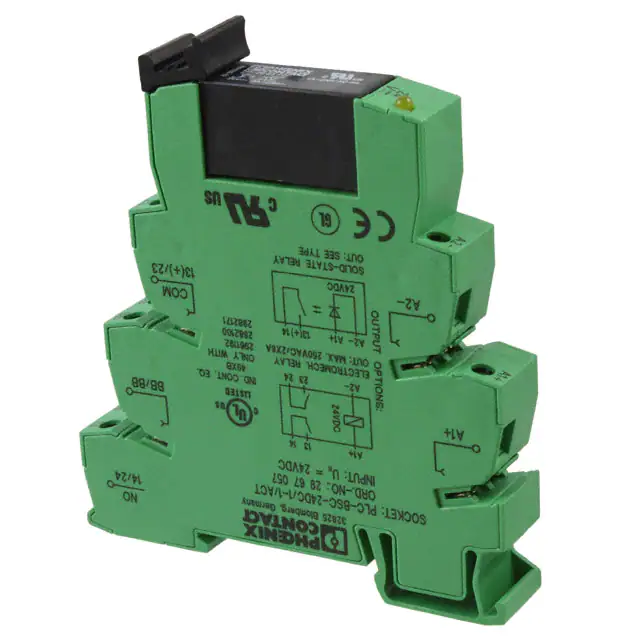

2982760SSR RELAY SPST-NO 2A 24-253V |
0 |
|
Технический лист |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 24VDC | 24 V ~ 253 V | 2 A | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
