Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84137850NSSR RELAY SPST-NO 10A 5-200V |
1 |
|
Технический лист |
GND | Box | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 5 V ~ 200 V | 10 A | - | Screw Terminal | -25°C ~ 90°C | - | CE, cURus | - | - |
|
HA4850SSR RELAY SPST-NO 50A 48-530V |
0 |
|
Технический лист |
HA48 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 48 V ~ 530 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|

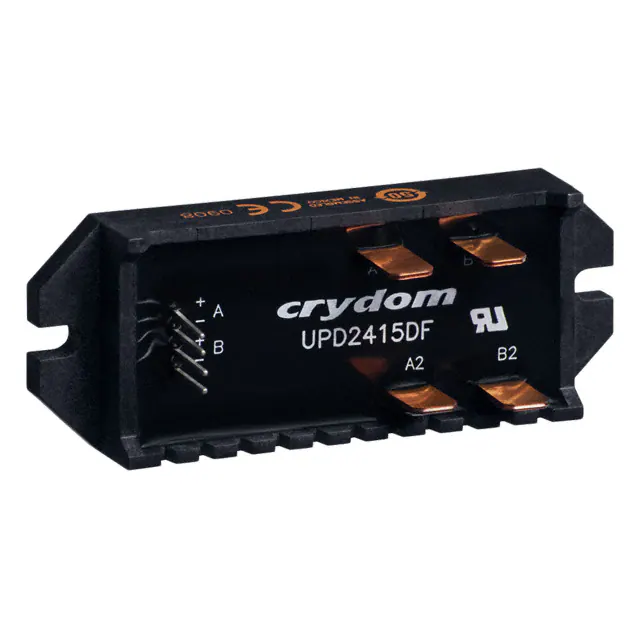

UPD2415DFSSR RELAY SPST-NO 15A 24-280V |
0 |
|
Технический лист |
UPD24D | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) x 2 | AC, Zero Cross | 3 ~ 15VDC | 24 V ~ 280 V | 15 A | - | Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C | - | CE, cURus | - | - |
|
G3PJ-215B-PU DC12-24SSR RELAY SPST-NO 18A 24-240V |
0 |
|
Технический лист |
G3PJ | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 12 ~ 24VDC | 24 V ~ 240 V | 18 A | - | Spring Terminal | -30°C ~ 80°C | - | CE, cULus, TUV | - | - |
|
77.31.9.024.8050SSR RELAY SPST-NO 30A 48-480V |
1 |
|
Технический лист |
77 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 48 V ~ 480 V | 30 A | - | Screw Terminal | -20°C ~ 80°C | Module | CE, cULus, EAC, UKCA | - | - |
|
84137130NSSR RELAY SPST-NO 75A 48-660V |
1 |
|
Технический лист |
GN | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 75 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, VDE | - | - |
|
CWD4850PHSSR RELAY SPST-NO 50A 48-660V |
0 |
|
Технический лист |
CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
77.31.8.230.8050SSR RELAY SPST-NO 30A 48-480V |
0 |
|
Технический лист |
77 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 230VAC | 48 V ~ 480 V | 30 A | - | Screw Terminal | -20°C ~ 80°C | Module | CE, cULus, EAC, UKCA | - | - |
|
CWU4850PSSR RELAY SPST-NO 50A 48-660V |
0 |
|
Технический лист |
CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 20 ~ 280VAC, 20 ~ 48VDC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|

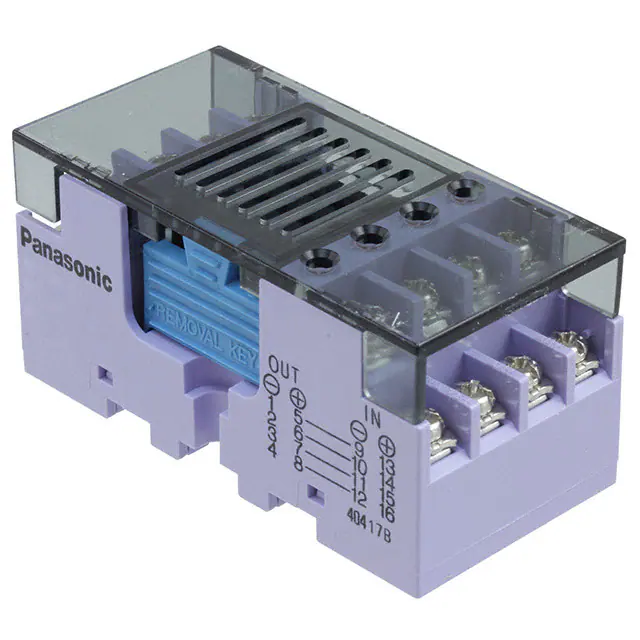

RT3SP2-24VSSR RELAY SPST-NO 300MA 0-400V |
1 |
|
Технический лист |
RT-3 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) x 4 | AC, DC | 24VDC | 0 V ~ 400 V | 300 mA | - | Screw Terminal | -20°C ~ 55°C | - | - | - | - |
|
HA6050-10SSR RELAY SPST-NO 50A 48-660V |
0 |
|
Технический лист |
HA60 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 90 ~ 280VAC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
G3PE-235BL DC12-24SSR RELAY SPST-NO 35A 100-240V |
1 |
|
Технический лист |
G3PE | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 12 ~ 24VDC | 100 V ~ 240 V | 35 A | - | Screw Terminal | -30°C ~ 100°C | - | CE, CSA, TUV, UR | - | - |
|
G3HD-202SN-VD DC12-24VSSR RELAY SPST-NO 2.5A 19-264V |
1 |
|
Технический лист |
G3HD | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 9.6 ~ 28.8VDC | 19 V ~ 264 V | 2.5 A | - | Plug In | -30°C ~ 80°C | - | CE, CSA, UR, VDE | - | - |
|
ASR-SI480A100RY-LHUSSR RELAY SPST-NO 100A 48-530V |
0 |
|
Технический лист |
SI | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 90 ~ 280VAC | 48 V ~ 530 V | 100 A | - | Screw Terminal | -30°C ~ 80°C | - | CCC, CE, cURus, TUV | - | - |
|
84138150NSSR RELAY SPST-NO 90A 24-500V |
0 |
|
Технический лист |
GN+ | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 500 V | 90 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, VDE | - | - |
|

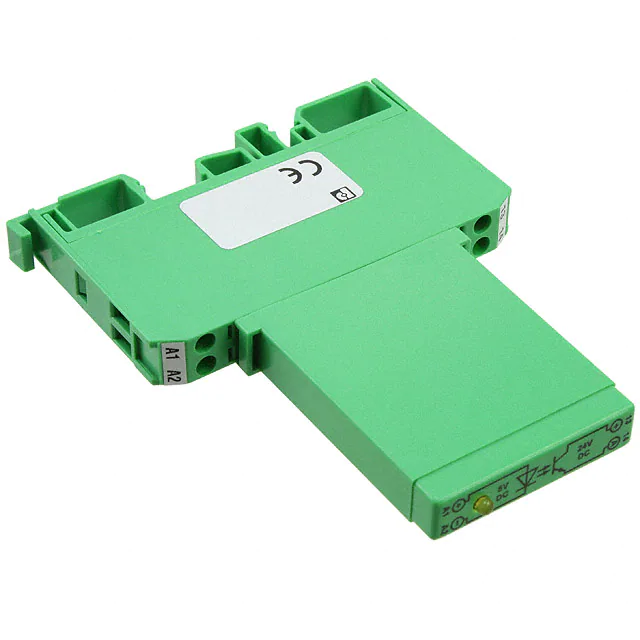

2944203SSR RELAY SPST-NO 1A 5-36V |
1 |
|
Технический лист |
EMG10-OV | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 5 V ~ 36 V | 1 A | - | Screw Terminal | -20°C ~ 50°C | - | EAC | - | - |
|

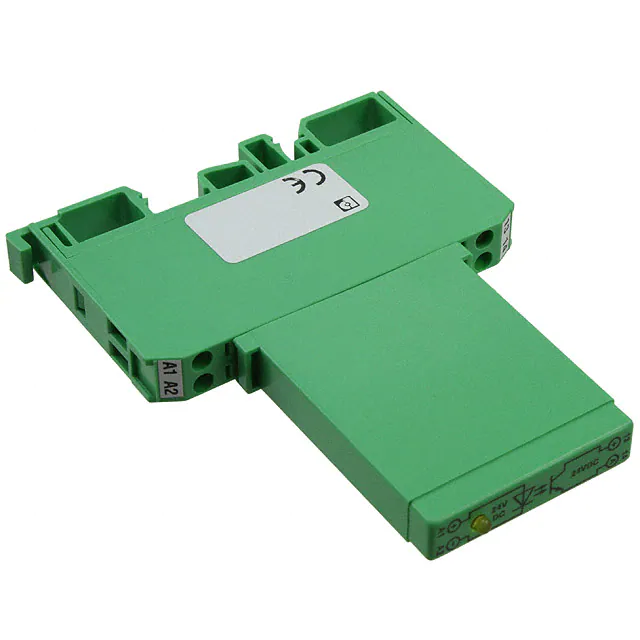

2944229SSR RELAY SPST-NO 1A 5-36V |
1 |
|
Технический лист |
EMG10-OV | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 5 V ~ 36 V | 1 A | - | Screw Terminal | -20°C ~ 50°C | - | EAC | - | - |
|
|
G3PJ-225B-PU DC12-24SSR RELAY SPST-NO 27A 24-240V |
1 |
|
Технический лист |
G3PJ | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 12 ~ 24VDC | 24 V ~ 240 V | 27 A | - | Spring Terminal | -30°C ~ 80°C | - | CE, cULus, TUV | - | - |
|
SSR3T-480D25SSR RELAY SPST-NO 25A 48-480V |
0 |
|
Технический лист |
SSR3 | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 480 V | 25 A | - | Screw Terminal | -30°C ~ 100°C | - | CE, cURus, UKCA | - | - |
|
G3NA-475B-UTU-2 DC5-24SSR RELAY SPST-NO 75A 180-528V |
0 |
|
Технический лист |
G3NA | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 5 ~ 24VDC | 180 V ~ 528 V | 75 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
