Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR10D24SSR RELAY SPST-NO 24A 1-100V |
0 |
|
Технический лист |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 100 V | 24 A | 26 mOhms | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|
84137120SSR RELAY SPST-NO 50A 48-660V |
0 |
|
Технический лист |
GN | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
SOM040200SSR RELAY SPST-NO 40A 0-110V |
0 |
|
Технический лист |
- | Box | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 0 V ~ 110 V | 40 A | 46 mOhms | Screw Terminal | -40°C ~ 100°C | - | cURus | - | - |
|
CC2425W3VSSR RELAY SPST-NO 25A 24-280V |
1 |
|
Технический лист |
Evolution Dual | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) x 2 | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
|
CC2425W2VSSR RELAY SPST-NO 25A 24-280V |
0 |
|
Технический лист |
Evolution Dual | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) x 2 | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
|
CC2425W2VHSSR RELAY SPST-NO 25A 24-280V |
0 |
|
Технический лист |
Evolution Dual | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) x 2 | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
DC100D20SSR RELAY SPST-NO 20A 1-72V |
0 |
|
Технический лист |
PowerPlus DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 72 V | 20 A | 12 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|

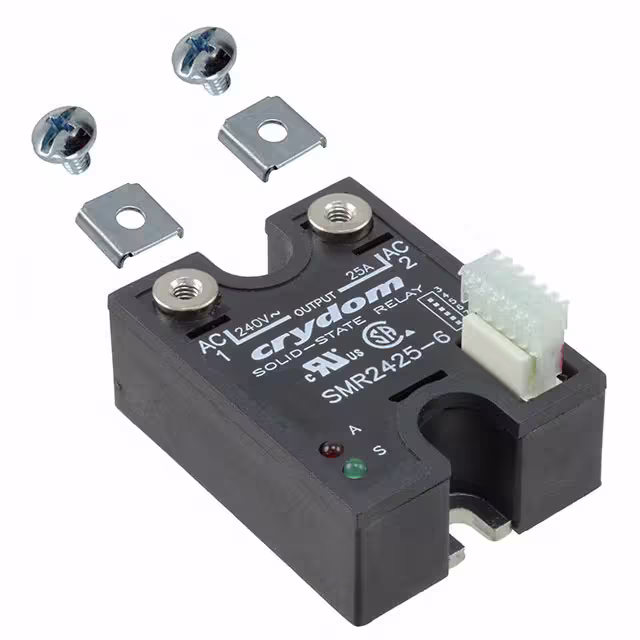

SMR2425-6SSR RELAY 25A 60-280V |
0 |
|
Технический лист |
SMR24-6 | Bulk | Active | Chassis Mount | - | AC, Zero Cross | 8 ~ 32VDC | 60 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE | - | - |
|
DC400D10SSR RELAY SPST-NO 10A 1-300V |
1 |
|
Технический лист |
PowerPlus DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 300 V | 10 A | 155 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
|
DC100D60SSR RELAY SPST-NO 60A 1-72V |
0 |
|
Технический лист |
PowerPlus DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 72 V | 60 A | 6 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
CWD4890PSSR RELAY SPST-NO 90A 48-660V |
0 |
|
Технический лист |
CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 90 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
MCPC1225DSSR RELAY SPST-NO 25A 48-140V |
0 |
|
Технический лист |
MCPC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 4 ~ 20mA | 48 V ~ 140 V | 25 A | - | Screw Terminal | -20°C ~ 80°C | - | CE, UR | - | - |
|
|
MCPC2425ESSR RELAY SPST-NO 25A 180-280V |
0 |
|
Технический лист |
MCPC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 8 ~ 32VDC | 180 V ~ 280 V | 25 A | - | Screw Terminal | -20°C ~ 80°C | - | CE, UR | - | - |
|
PMP4850WSSR RELAY SPST-NO 50A 345-530V |
0 |
|
Технический лист |
PMP | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 4 ~ 20mA, 0 ~ 10VDC | 345 V ~ 530 V | 50 A | - | Screw Terminal | -25°C ~ 70°C | - | CE, cURus, EMC, IEC | - | - |
|

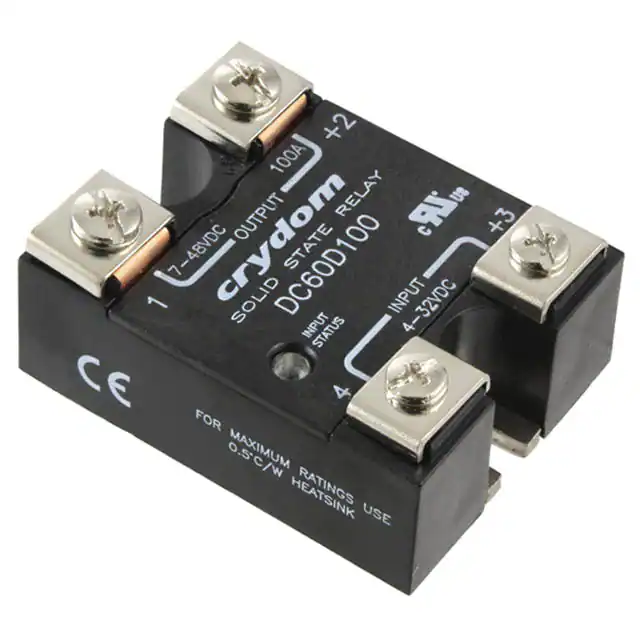

DC60D100SSR RELAY SPST-NO 100A 1-48V |
0 |
|
Технический лист |
PowerPlus DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 48 V | 100 A | 5.6 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
84134180SSR RELAY SPST-NO 125A 48-660V |
0 |
|
Технический лист |
GN | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 125 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
CMRA6055SSR RELAY SPST-NO 55A 48-660V |
0 |
|
Технический лист |
CMRA60 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 140VAC | 48 V ~ 660 V | 55 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus | - | - |
|
AQH0223AXSSR RELAY SPST-NO 300MA 0-600V |
0 |
|
Технический лист |
AQ-H | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC | 1.21VDC | 0 V ~ 600 V | 300 mA | - | Gull Wing | -30°C ~ 85°C | 8-SMD | cURus, VDE | - | - |
|
|
AQH0223ASSR RELAY SPST-NO 300MA 0-600V |
4 |
|
Технический лист |
AQ-H | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC | 1.21VDC | 0 V ~ 600 V | 300 mA | - | Gull Wing | -30°C ~ 85°C | 8-SMD | cURus, VDE | - | - |
|
|
AQH3213AZSSR RELAY SPST-NO 1.2A 0-600V |
0 |
|
Технический лист |
AQ-H | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, Zero Cross | 1.21VDC | 0 V ~ 600 V | 1.2 A | - | Gull Wing | -30°C ~ 85°C | 8-SMD | cURus, VDE | - | - |
