DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM4649IY#PBFDC DC CONVERTER 0.6-3.3V 33W |
2,611 |
|
Технический лист |
µModule® | 68-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 16V | 0.6 ~ 3.3V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 68-BGA (15x9) | - | - | - |
|
PTH12010WAHDC DC CONVERTER 1.2-5.5V 12A |
126 |
|
Технический лист |
PTH12010 | 10-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 12A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | 1.37" L x 0.62" W x 0.36" H (34.8mm x 15.7mm x 9.1mm) | - | - | - | - |
|
PKR2111ASIDC DC CONVERTER 5V 10W |
702 |
|
Технический лист |
PKR 2000A (15W) | 18-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -45°C ~ 110°C (With Derating) | 85% | - | - | Surface Mount | 1.88" L x 1.11" W x 0.31" H (47.8mm x 28.1mm x 8.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
REC5-1205SRW/H4/ADC DC CONVERTER 5V 5W |
776 |
|
Технический лист |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 81% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TES 2N-2423DC DC CONVERTER +/-15V 2W |
353 |
|
Технический лист |
TES 2N (2W) | 16-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | - | - |
|
TES 2N-1223DC DC CONVERTER +/-15V 2W |
227 |
|
Технический лист |
TES 2N (2W) | 16-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | - | - |
|
|
REC5-2405SRWZ/H2/ADC DC CONVERTER 5V 5W |
362 |
|
Технический лист |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 82% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|

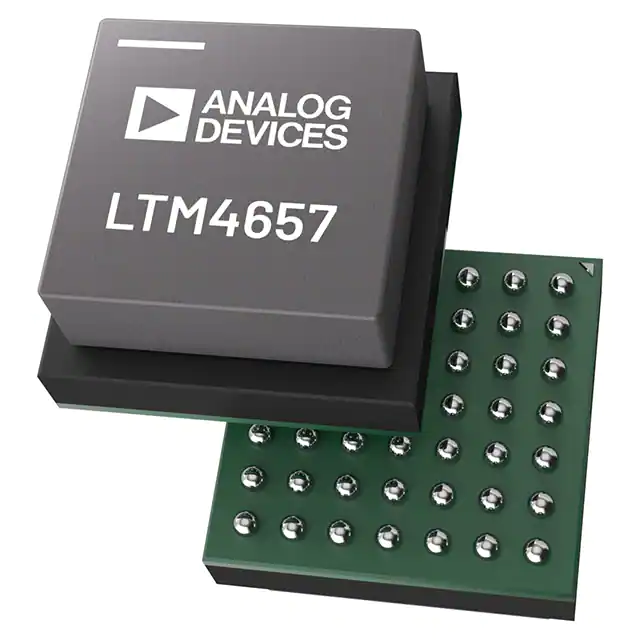

LTM4657IY20VIN, 8A STEP-DOWN DC/DC UMODUL |
109 |
|
Технический лист |
- | 49-BFBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.1V | 20V | 0.5 ~ 5.5V | - | - | - | 8A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.15" H (6.3mm x 6.3mm x 3.9mm) | 49-BGA (6.25x6.25) | - | - | - |
|

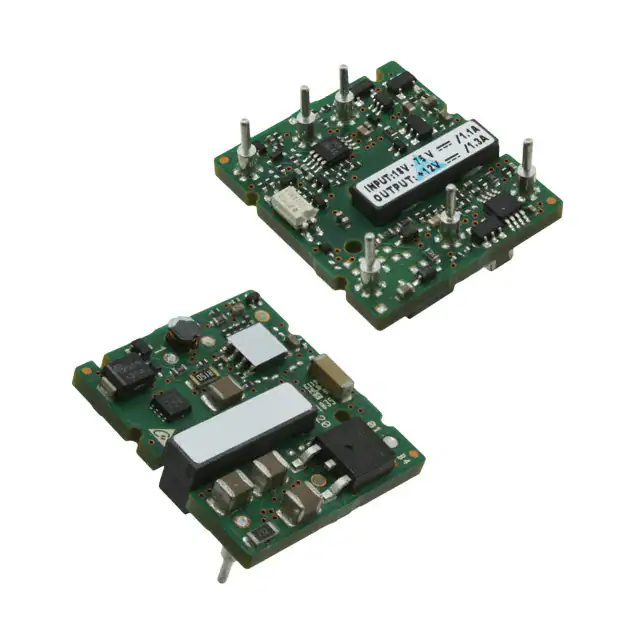

S36SE3R305NRFBDC DC CONVERTER 3.3V 17W |
358 |
|
Технический лист |
Delphi S36SE (17W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 5A | 17 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 123°C | 86.5% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm) | - | Enable, Active Low | - | - |
|
|
LTM8080EY#PBFULTRALOW NOISE UMODULE REGULATOR |
0 |
|
Технический лист |
LTM®, uModule® | 48-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.5V | 40V | 0 ~ 8V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.35" L x 0.25" W x 0.13" H (9.0mm x 6.3mm x 3.3mm) | 48-BGA (9x6.25) | - | - | - |
|
LTM8045IYDC DC CONVERTER +/-2.5 +/-15V |
121 |
|
Технический лист |
µModule® | 40-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.8V | 18V | -2.5 ~ -15V, 2.5 ~ 15V | - | - | - | 700mA | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.25" W x 0.19" H (11.3mm x 6.3mm x 4.9mm) | 40-BGA (11.25x6.25) | - | - | - |
|
TMR 3-4822WIDC DC CONVERTER +/-12V 3W |
124 |
|
Технический лист |
TMR 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
LTM8057EY#PBFDC DC CONVERTER 2.5-12V 5W |
712 |
|
Технический лист |
µModule® | 38-BBGA Module | Tray | Active | Isolated Module | 1 | 3.1V | 31V | 2.5 ~ 12V | - | - | - | 440mA | - | 3 kV | ITE (Commercial) | UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.19" H (11.3mm x 9.0mm x 4.9mm) | 38-BGA (11.25x9) | - | - | - |
|
|
LTM8067EY#PBFDC DC CONVERTER 2.5-24V |
319 |
|
Технический лист |
µModule® | 38-BBGA Module | Tray | Active | Isolated Module | 1 | 2.8V | 40V | 2.5 ~ 24V | - | - | - | 450mA | - | 2 kV | ITE (Commercial) | UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.19" H (11.3mm x 9.0mm x 4.9mm) | 38-BGA (11.25x9) | - | - | - |
|
LTM8032EV#PBFDC DC CONVERTER 0.8-10V |
600 |
|
Технический лист |
µModule® | 71-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 10V | - | - | - | 2A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | 71-LGA (15x9) | - | - | - |
|
TMR 6-2415WIDC DC CONVERTER 24V 6W |
1,793 |
|
Технический лист |
TMR 6WI (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 250mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 84°C | 87% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TMR 6-2410WIDC DC CONVERTER 3.3V 5W |
810 |
|
Технический лист |
TMR 6WI (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.5A | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TMR 6-2412WIDC DC CONVERTER 12V 6W |
139 |
|
Технический лист |
TMR 6WI (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 87% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|

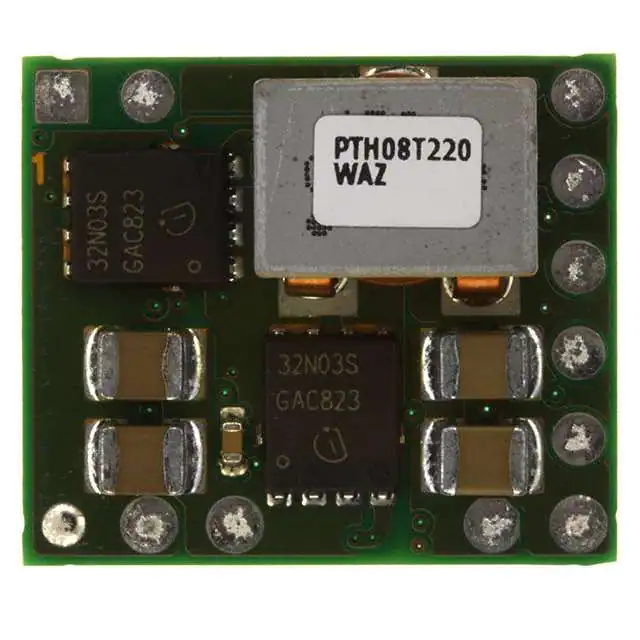

PTH08T220WAZTDC DC CONVERTER 0.69-5.5V |
222 |
|
Технический лист |
PTH08T220W | 11-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 16A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.87" L x 0.75" W x 0.36" H (22.1mm x 19.1mm x 9.1mm) | - | - | - | - |
|
LTM8078IYDC DC CONVERTER 3.3V 5V |
29 |
|
Технический лист |
LTM®, uModule® | 49-FBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3V | 40V | 3.3V | 5V | - | - | 1.4A, 1.4A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.09" H (6.3mm x 6.3mm x 2.2mm) | 49-BGA (6.25x6.25) | - | - | - |
