DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASA01F18-LSDC DC CONVERTER 3.3V 6W |
3,032 |
|
Технический лист |
ASA (6W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
LTM8031IV#PBFDC DC CONVERTER 0.8-10V |
253 |
|
Технический лист |
µModule® | 71-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 10V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | 71-LGA (15x9) | - | - | - |
|
DP7007G-R100DC DC CONVERTER 0.7-5.5V |
310 |
|
Технический лист |
dPWER® | Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 8V | 14V | 0.7 ~ 5.5V | - | - | - | 7A | - | - | ITE (Commercial) | Digital, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | - | - | - | Surface Mount | 0.87" L x 0.49" W x 0.26" H (22.2mm x 12.5mm x 6.5mm) | - | - | - | - |
|

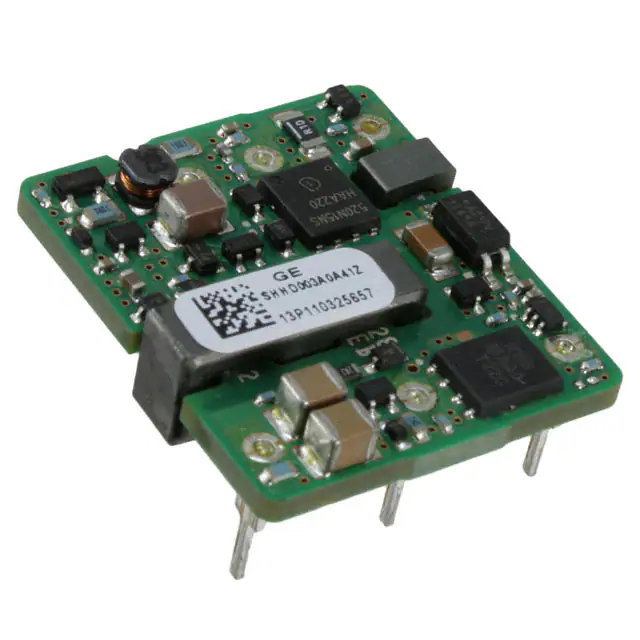

SHHD003A0A41ZDC DC CONVERTER 5V 15W |
15,875 |
|
Технический лист |
Hammerhead™ SHHD003A0A (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|

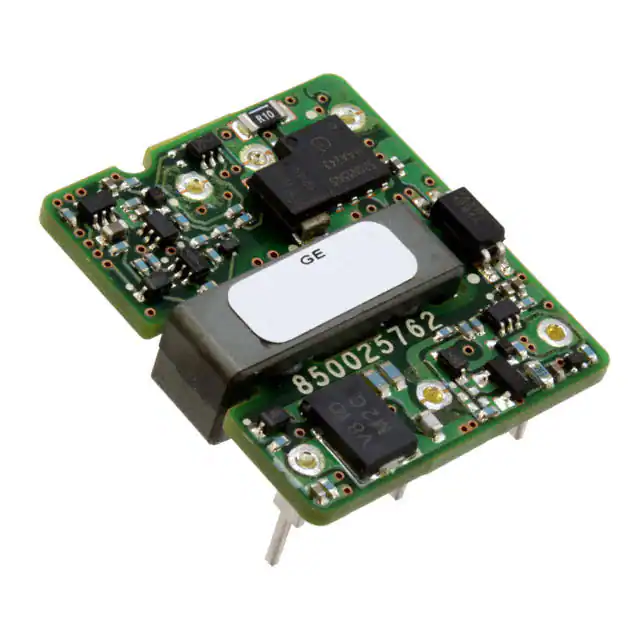

SHHD001A3B41ZDC DC CONVERTER 12V 15W |
7,279 |
|
Технический лист |
Hammerhead™ SHHD001A3B (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.3A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|

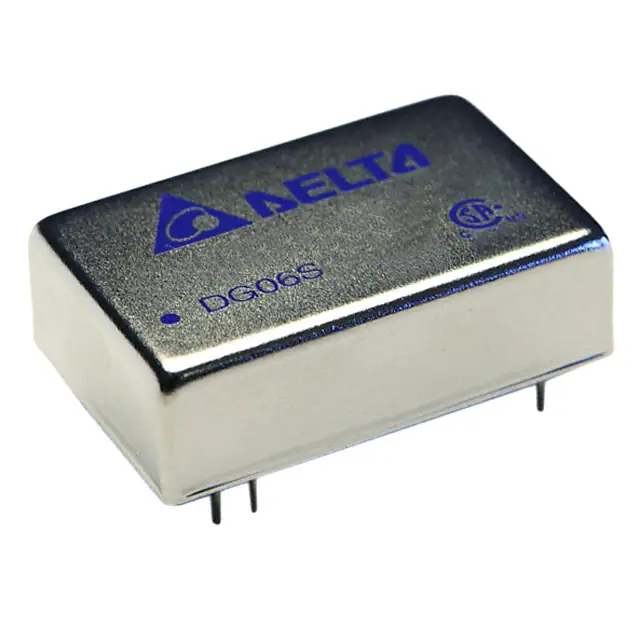

DG06S1205ADC DC CONVERTER 5V 6W |
1,224 |
|
Технический лист |
DG06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 71°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|

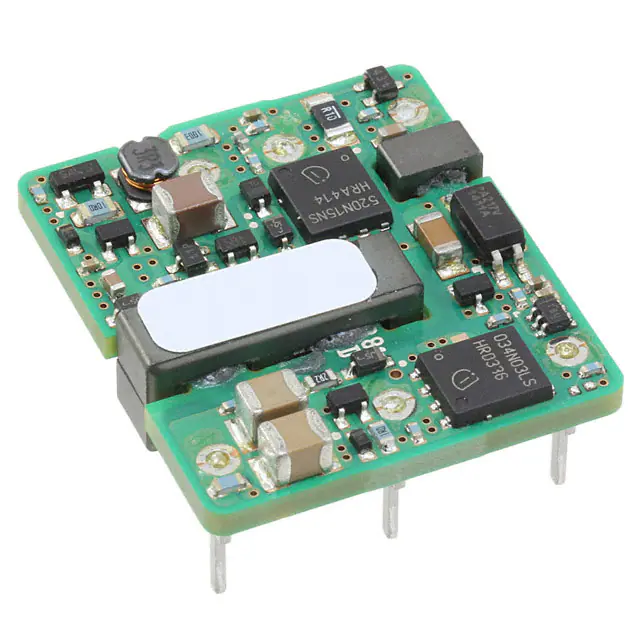

SSTW003A0A41ZDC DC CONVERTER 5V 15W |
1,463 |
|
Технический лист |
Barracuda™ SSTW003A0A (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 3A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|

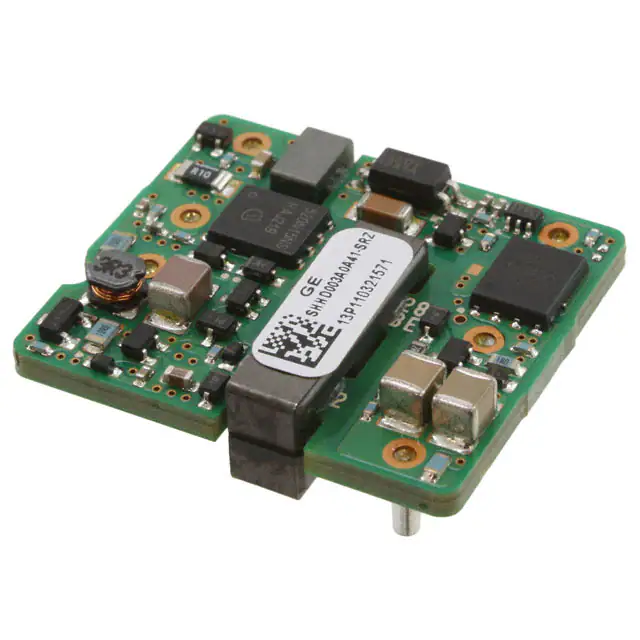

SHHD003A0A41-SRZDC DC CONVERTER 5V 15W |
298 |
|
Технический лист |
Hammerhead™ SHHD003A0A (15W) | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|
LTM8073IY#PBFDC DC CONVERTER 0.8-15V |
0 |
|
Технический лист |
µModule® | 48-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.4V | 60V | 0.8 ~ 15V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.35" L x 0.25" W x 0.13" H (9.0mm x 6.3mm x 3.3mm) | 48-BGA (9x6.25) | - | - | - |
|
REC5-1212SRW/H6/ADC DC CONVERTER 12V 5W |
800 |
|
Технический лист |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 420mA | 5 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TMR 3-2423DC DC CONVERTER +/-15V 3W |
314 |
|
Технический лист |
TMR 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
PTH08T241WADDC DC CONVERTER 0.69-5.5V |
321 |
|
Технический лист |
PTH08T241W | 11-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.87" L x 0.62" W x 0.34" H (22.1mm x 15.7mm x 8.6mm) | - | - | - | - |
|
TMR 3-2411WIRDC DC CONVERTER 5V 3W |
237 |
|
Технический лист |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
LTM4608EV#PBFDC DC CONVERTER 0.6-5V |
1,886 |
|
Технический лист |
µModule® | 68-BLGA, Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 5V | - | - | - | 8A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 85°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | 68-LGA (15x9) | - | - | - |
|
|
LTM4608AEV#PBFDC DC CONVERTER 0.6-5V |
496 |
|
Технический лист |
µModule® | 68-BLGA, Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 5V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 98% | - | - | Surface Mount | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | 68-LGA (15x9) | - | - | - |
|
|
LTM8003IY#PBFDC DC CONVERTER 0.97-18V |
270 |
|
Технический лист |
µModule® | 48-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.4V | 40V | 0.97 ~ 18V | - | - | - | 3.5A | - | - | ITE (Commercial) | - | -40°C ~ 150°C | - | - | - | Surface Mount | 0.35" L x 0.25" W x 0.13" H (9.0mm x 6.3mm x 3.3mm) | 48-BGA (9x6.25) | - | - | - |
|
|
LTM8003IY-3.3#PBFDC DC CONVERTER 3.3V |
164 |
|
Технический лист |
µModule® | 48-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.4V | 40V | 3.3V | - | - | - | 3.5A | - | - | ITE (Commercial) | - | -40°C ~ 150°C | - | - | - | Surface Mount | 0.35" L x 0.25" W x 0.13" H (9.0mm x 6.3mm x 3.3mm) | 48-BGA (9x6.25) | - | - | - |
|
LTM4618EV#PBFDC DC CONVERTER 0.8-5V |
19 |
|
Технический лист |
µModule® | 84-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 26.5V | 0.8 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.17" H (15.0mm x 9.0mm x 4.3mm) | 84-LGA (15x9) | - | - | - |
.jpg)
|
REC3-1212DRW/H6/A/MDC DC CONVERTER +/-12V 3W |
146 |
|
Технический лист |
ECONOLINE REC3-DRW (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
RS-1212D/H3DC DC CONVERTER +/-12V 2W |
365 |
|
Технический лист |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
