DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM4604AIV#PBFDC DC CONVERTER 0.8-5V |
0 |
|
Технический лист |
µModule® | 66-LGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.38V | 5.5V | 0.8 ~ 5V | - | - | - | 4A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.59" L x 0.35" W x 0.09" H (15.0mm x 9.0mm x 2.3mm) | 66-LGA (15x9) | - | - | - |
|
TEL 5-2423DC DC CONVERTER +/-15V 6W |
625 |
|
Технический лист |
TEL 5 (5W) | 23-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
ABXS001A4X41-SRZDC DC CONVERTER 32-54V 65W |
449 |
|
Технический лист |
BoostLynx™ (65W) | 8-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 16V | 32 ~ 54V | - | - | - | 1.35A | 65 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C (With Derating) | 93.8% | - | - | Surface Mount | 1.10" L x 0.45" W x 0.33" H (27.9mm x 11.4mm x 8.4mm) | 8-SMD | Enable, Active Low | - | - |
|
TDN 1-2423WISMDC DC CONVERTER +/-15V 1.1W |
112 |
|
Технический лист |
TDN 1WISM (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 35mA, 35mA | 1.1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 81% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
AG5810DC DC CONVERTER 12V, 24V 60W |
267 |
|
Технический лист |
Ag5810 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 2 | 36V | 57V | 12V | 24V | - | - | 5A | 60 W | - | - | SCP | -20°C ~ 70°C | 88% | - | - | Through Hole | 2.76" L x 1.18" W x 0.45" H (70.0mm x 30.0mm x 11.5mm) | - | - | - | 60950-1 |
|

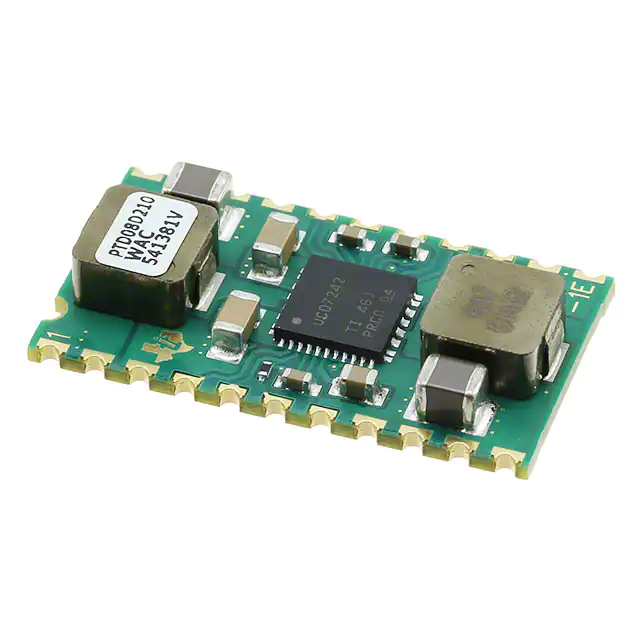

PTD08D210WACDC DC CNVRTR 0.7-3.6V 0.7-3.6V |
500 |
|
Технический лист |
Powertrain™ | 22-SMD Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.75V | 14V | 0.7 ~ 3.6V | 0.7 ~ 3.6V | - | - | 10A, 10A | - | - | ITE (Commercial) | OCP, OTP | -40°C ~ 85°C | 96% | - | - | Surface Mount | 1.10" L x 0.60" W x 0.24" H (27.9mm x 15.2mm x 6.0mm) | - | - | - | - |
|
LTM4625IYDC DC CONVERTER 0.6-5.5V |
180 |
|
Технический лист |
µModule® | 25-PowerBBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 20V | 0.6 ~ 5.5V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 91% | - | - | Surface Mount | 0.25" L x 0.25" W x 0.20" H (6.3mm x 6.3mm x 5.0mm) | 25-BGA (6.25x6.25) | - | - | - |
|
ISC0324S3V3DC DC CONVERTER 3.3V 3W |
1,584 |
|
Технический лист |
ISC03 (3W) | 16-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 100°C | 75% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.31" H (24.0mm x 13.7mm x 8.0mm) | - | Enable, Active High | - | 62368-1 |
|
LTM8083IY#PBF36VIN, 1.5A BUCK-BOOST UMODULE |
1,069 |
|
Технический лист |
- | 49-FBGA Module | Tray | Active | - | 1 | 3V | 36V | 1 ~ 36V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.10" H (6.3mm x 6.3mm x 2.4mm) | 49-BGA (6.25x6.25) | - | - | - |
|
LTM4658IV#PBFLOW VIN, HIGH EFFICIENCY 10A STE |
147 |
|
Технический лист |
LTM®, uModule® | 25-BFLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.25V | 5.5V | 0.5 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | Adjustable Output, Load Sharing | -40°C ~ 125°C | - | - | - | Surface Mount | 0.16" L x 0.16" W x 0.17" H (4.0mm x 4.0mm x 4.3mm) | 25-LGA (4x4) | - | - | - |
|
SKM10B-15DC DC CONVERTER 15V 10W |
278 |
|
Технический лист |
SKM10 (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 666mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
SKA15B-05DC DC CONVERTER 5V 15W |
183 |
|
Технический лист |
SKA15 (15W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1 kV | ITE (Commercial) | OVP, SCP | -40°C ~ 71°C (With Derating) | 78% | - | - | Through Hole | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) | - | - | - | - |
|

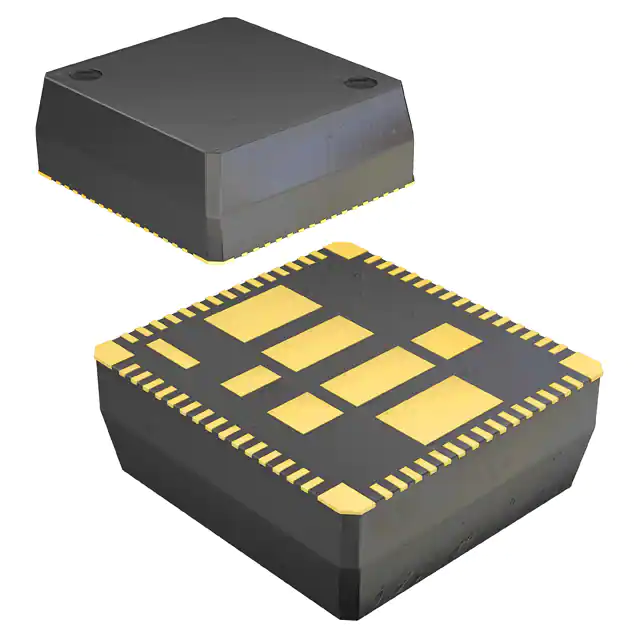

LMZ31530RLGTDC DC CONVERTER 0.6-3.6V 108W |
4,997 |
|
Технический лист |
SIMPLE SWITCHER® | 72-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 14.5V | 0.6 ~ 3.6V | - | - | - | 30A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 96% | - | - | Surface Mount | 0.64" L x 0.60" W x 0.23" H (16.2mm x 15.2mm x 5.9mm) | 72-BQFN (15x15) | - | - | - |
|
ITQ4812SADC DC CONVERTER 12V 6W |
255 |
|
Технический лист |
ITQ (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 87% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
|
ITQ2412SADC DC CONVERTER 12V 6W |
162 |
|
Технический лист |
ITQ (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 87% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
LMZ23608TZE/NOPBDC DC CONVERTER 0.8-6V |
439 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-11, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 0.8 ~ 6V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 93% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.23" H (15.0mm x 15.0mm x 5.9mm) | - | - | - | - |
|
|
LMZ23608TZ/NOPBDC DC CONVERTER 0.8-6V |
110 |
|
Технический лист |
SIMPLE SWITCHER® | TO-PMOD-11, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 0.8 ~ 6V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 93% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.23" H (15.0mm x 15.0mm x 5.9mm) | - | - | - | - |
|
DJ06S2424ADC DC CONVERTER 24V 6W |
1,246 |
|
Технический лист |
DJ06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 250mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
R-625.0PDC DC CONVERTER 5V 10W |
291 |
|
Технический лист |
INNOLINE R-6xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 32V | 5V | - | - | - | 2A | 10 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.27" L x 0.36" W x 0.59" H (32.2mm x 9.1mm x 15.0mm) | - | Enable, Active High | - | - |
|
|
LTM4705EY#PBF20V, DUAL 5A UMODULE REGULATOR |
141 |
|
Технический лист |
- | 63-BFBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.1V | 20V | 0.6 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.30" L x 0.25" W x 0.13" H (7.5mm x 6.3mm x 3.2mm) | 63-BGA (6.25x7.5) | - | - | - |
