DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEN 30-2423WINDC DC CONVERTER +/-15V 30W |
37 |
|
Технический лист |
TEN 30WIN (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 75°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
TEN 30-2422WINDC DC CONVERTER +/-12V 30W |
31 |
|
Технический лист |
TEN 30WIN (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 75°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
THN 30-4811WIR39 WATT DC/DC CONVERTER, RAILWAY |
34 |
|
Технический лист |
THN 30WIR (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5.1V | - | - | - | 6A | 31 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 62368-1 |
|
THM 30-1213DC DC CONVERTER 15V 30W |
31 |
|
Технический лист |
THM 30 (30W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 2A | 30 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 88.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THN 30-2423DC DC CONVERTER +/-15V 30W |
48 |
|
Технический лист |
THN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
BWR-5/700-D48A-CDC DC CONVERTER +/-5V 7W |
218 |
|
Технический лист |
BWR (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 700mA, 700mA | 7 W | 1 kV | ITE (Commercial) | - | -40°C ~ 100°C | 81% | - | - | Through Hole | 2.00" L x 1.00" W x 0.38" H (50.8mm x 25.4mm x 9.7mm) | - | - | - | - |
|

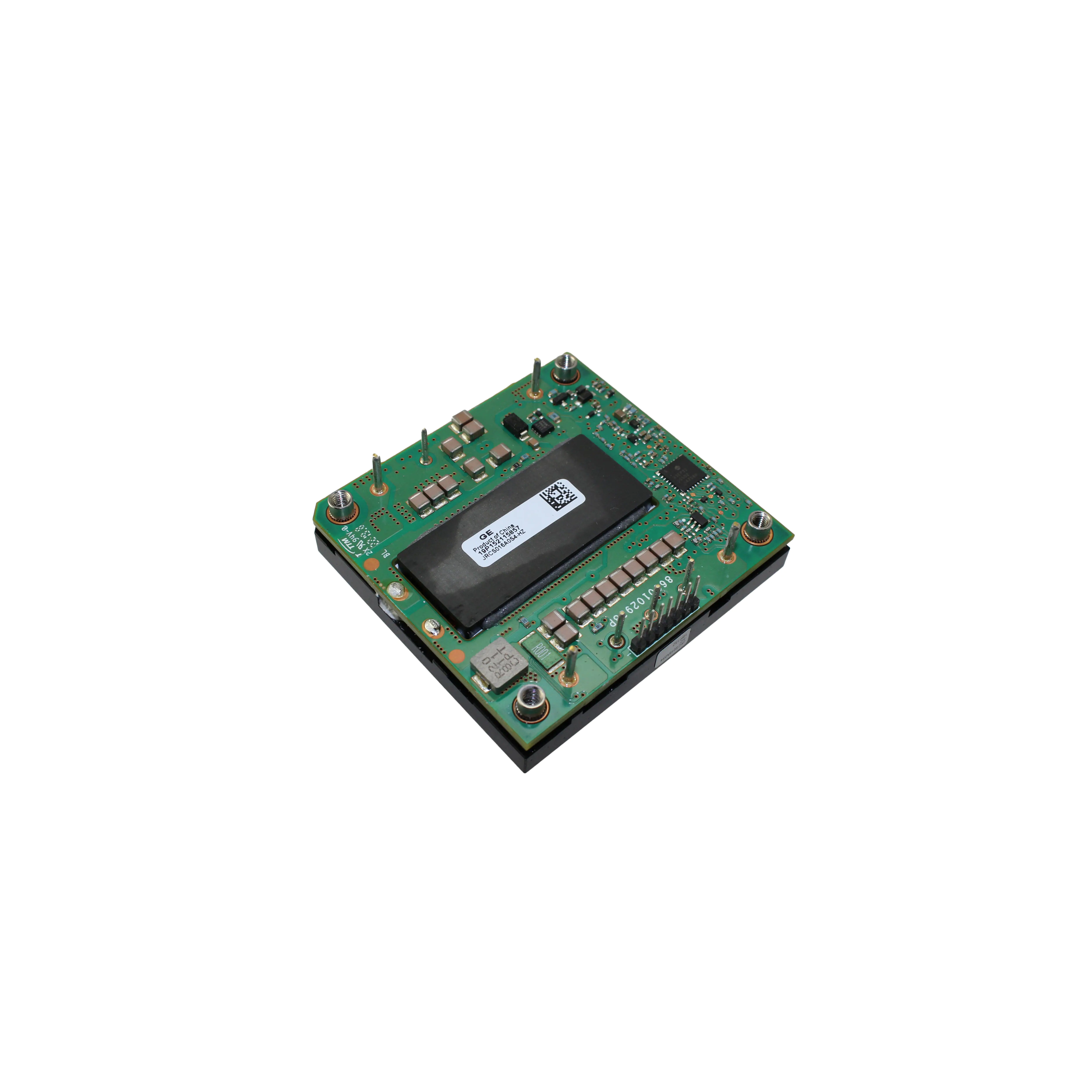

JRCS016A0S4-HZDC DC CONVERTER 18.5-60 V 400W |
38 |
|
Технический лист |
JRCS016 | Half Brick | Tray | Active | Non-Isolated PoL Module | 1 | 18V | 85V | 18.5 ~ 60V | - | - | - | 6.7A | 400 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.39" L x 2.27" W x 0.51" H (60.7mm x 57.7mm x 13.0mm) | Half Brick | Enable, Active High | - | - |
|
AXA05A18-LDC DC CONVERTER 5V 25W |
173 |
|
Технический лист |
AXA (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 30-2413DC DC CONVERTER 15V 30W |
32 |
|
Технический лист |
TEN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
IRE-12/10-Q12PF-CDC DC CONVERTER 12V 120W |
101 |
|
Технический лист |
IRE-Q12 (120W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 10A | 120 W | 2.828 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 92% | - | - | Through Hole | 2.41" L x 1.45" W x 0.50" H (61.2mm x 36.8mm x 12.7mm) | Eighth Brick | Enable, Active High | cURus | - |
|
|
IRE-5/24-Q12PF-CDC DC CONVERTER 5V 120W |
67 |
|
Технический лист |
IRE-Q12 (120W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 24A | 120 W | 2.828 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 92% | - | - | Through Hole | 2.41" L x 1.45" W x 0.50" H (61.2mm x 36.8mm x 12.7mm) | Eighth Brick | Enable, Active High | cURus | - |
|
VHB75W-Q24-S5DC DC CONVERTER 5V 75W |
68 |
|
Технический лист |
VHB75W (75W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 15A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 82% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | EN, UL | 55032 Class A; 60950-1; 61000-3-2; 61000-6-1; 61000-6-2; 61000-6-3 |
|
|
VHB75W-Q48-S5DC DC CONVERTER 5V 75W |
53 |
|
Технический лист |
VHB75W (75W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 15A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | EN, UL | 55032 Class A; 60950-1; 61000-3-2; 61000-6-1; 61000-6-2; 61000-6-3 |
|
CQE50W-48S05DC DC CONVERTER 5V 50W |
128 |
|
Технический лист |
CQE50W (50W) | Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CE | 60950-1 |
|
|
CQE50W-24S15DC DC CONVERTER 15V 50W |
30 |
|
Технический лист |
CQE50W (50W) | Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 3.33A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 91.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CE | 60950-1 |
|
|
CQE50W-48S12DC DC CONVERTER 12V 50W |
29 |
|
Технический лист |
CQE50W (50W) | Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.16A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CE | 60950-1 |
|
LTM4620IY#PBFDC DC CNVRTR 0.6-2.5V 0.6-2.5V |
367 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.6 ~ 2.5V | 0.6 ~ 2.5V | - | - | 13A, 13A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.20" H (15.0mm x 15.0mm x 5.0mm) | 144-BGA (15x15) | - | - | - |
|
PKM4613NHPIDC DC CONVERTER 12V 600W |
66 |
|
Технический лист |
PKM4000NH (600W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.45" H (57.9mm x 36.8mm x 11.4mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
.jpg)
|
MGFW804812DC DC CONVERTER +/-12V 82W |
81 |
|
Технический лист |
MGFW (80W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 76V | 12V or 24V | -12V | - | - | 3.4A, 3.4A | 82 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) | - | - | CE, cURus, DEMKO | - |
|
|
MGFS802412DC DC CONVERTER 12V 80W |
63 |
|
Технический лист |
MGFS (80W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.7A | 80 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) | - | - | CE, cURus, DEMKO | - |
