DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP30-243.3SEDC DC CONVERTER 3.3V 30W |
40 |
|
Технический лист |
POWERLINE RP30-E (30W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 80% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
TEN 20-2423WIRDC DC CONVERTER +/-15V 20W |
116 |
|
Технический лист |
TEN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|

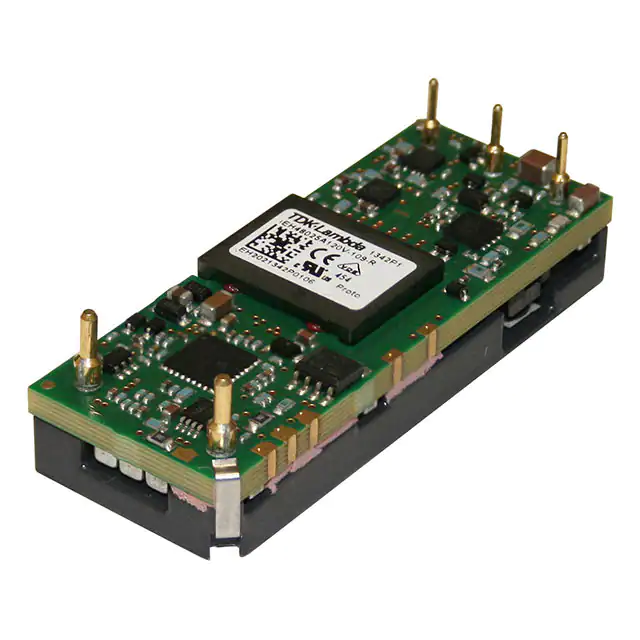

IEH48025A120V-109-RDC DC CONVERTER 12V 300W |
148 |
|
Технический лист |
iEH (300W) | 8-DIP Module, 5 Leads, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 124°C | 94.6% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) | - | - | - | - |
|
CC30-2405SFP-EDC DC CONVERTER 5V 30W |
27 |
|
Технический лист |
CC-P-E (30W) | 20-DIP Module, 17 Leads | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 6A | 30 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.51" L x 1.32" W x 0.33" H (38.4mm x 33.5mm x 8.3mm) | - | Enable, Active Low | - | - |
|
TEN 30-2412WIDC DC CONVERTER 12V 30W |
114 |
|
Технический лист |
TEN 30WI (30W) | 7-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10V | 40V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | - | - | - |
|
|
TEN 30-4813WIDC DC CONVERTER 15V 30W |
53 |
|
Технический лист |
TEN 30WI (30W) | 7-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | - | - | - |
|
CQB50W12-72S48DC DC CONVERTER 48V 50W |
277 |
|
Технический лист |
CQB50W12 (50W) | Module | Tray | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 1.05A | 50 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 |
|
JWL4024S05DC DC CONVERTER 5V 40W |
158 |
|
Технический лист |
JWL (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 8A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|
|
JWL4048S12DC DC CONVERTER 12V 40W |
142 |
|
Технический лист |
JWL (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 3.33A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|
THN 30-7225WIR53 WATT DC/DC CONVERTER, RAILWAY |
37 |
|
Технический лист |
THN 30WIR (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 24V | -24V | - | - | 625mA, 625mA | 30 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 62368-1 |
|
CQB75W-24S24DC DC CONVERTER 24V 75W |
83 |
|
Технический лист |
CQB75W (75W) | Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 3.12A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | CE, cURus | 60950-1 |
|

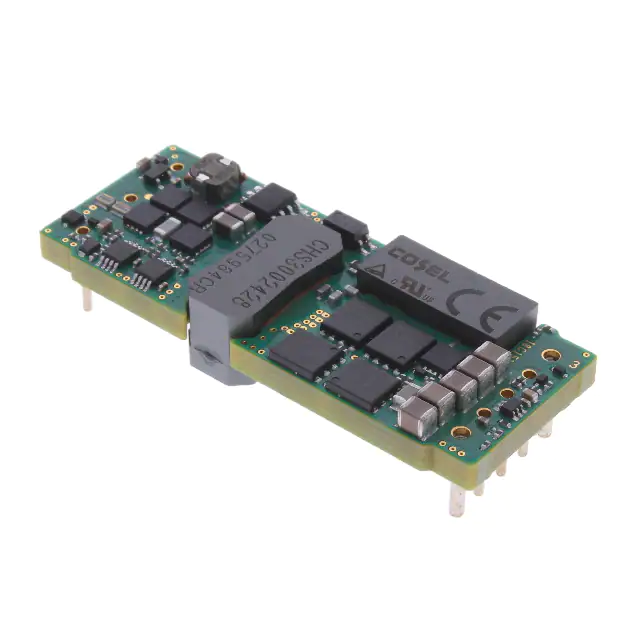

CHS3002428DC DC CONVERTER 28V 252W |
62 |
|
Технический лист |
CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 9A | 252 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm) | - | Enable, Active Low | CE, cURus, TUV | - |
|
LTM4600HVMPV#PBFDC DC CONVERTER 0.6-5V |
123 |
|
Технический лист |
µModule® | 104-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 10A | - | - | ITE (Commercial) | - | -55°C ~ 125°C | 92% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 104-LGA (15x15) | - | - | - |
|
VG15-24S250DC DC CONVERTER 250V 15W |
43 |
|
- |
VG15 (15W) | 4-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 18V | 36V | 250V | - | - | - | 60mA | 15 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 82% | - | - | Through Hole | 2.00" L x 1.00" W x 0.50" H (50.8mm x 25.4mm x 12.7mm) | 4-DIP | - | - | - |
|
PXE30-48S05DC DC CONVERTER 5V 30W |
69 |
|
Технический лист |
PXE (30W) | 8-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C | 89% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) | - | - | - | - |
|
|
PXE30-24S05DC DC CONVERTER 5V 30W |
49 |
|
Технический лист |
PXE (30W) | 8-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C | 88% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) | - | - | - | - |
|
|
TEN 30-4822WIDC DC CONVERTER +/-12V 30W |
39 |
|
Технический лист |
TEN 30WI (30W) | 7-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | - | - | - |
|

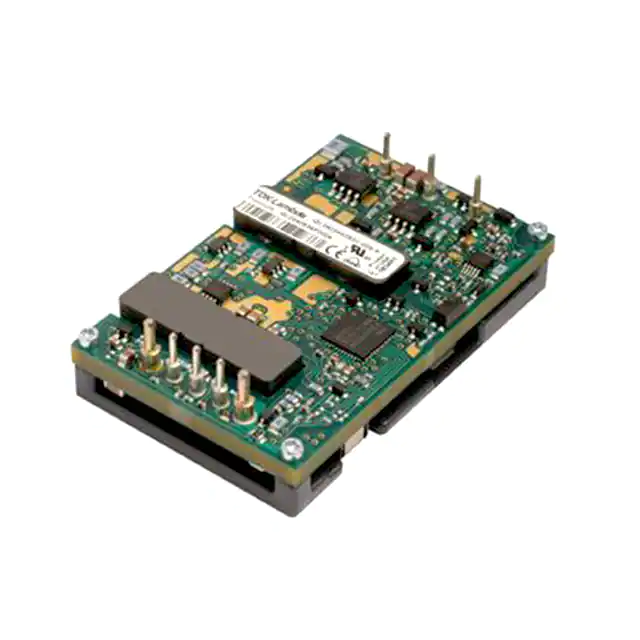

IQL48011A280V-009-RDC DC CONVERTER 28V 308W |
366 |
|
Технический лист |
iQL (308W) | 8-DIP Module, 1/4 Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 28V | - | - | - | 11A | 308 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 115°C | 92.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | - | Enable, Active Low | - | - |
|
IQL48060A025V-008-RDC DC CONVERTER 2.5V 150W |
72 |
|
Технический лист |
iQL (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 60A | 150 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 115°C | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | Quarter Brick | - | CB, CE | - |
|

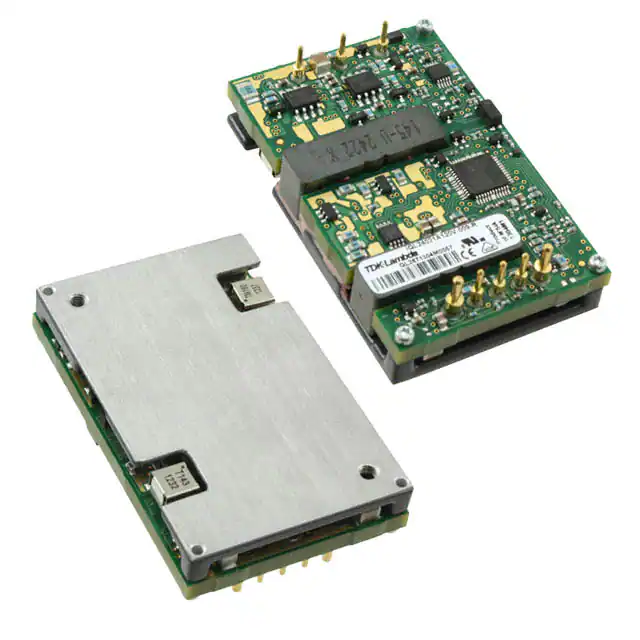

IQL24021A120V-009-RDC DC CONVERTER 12V 252W |
65 |
|
Технический лист |
iQL (252W) | 8-DIP Module | Bulk | Active | Intermediate Bus Converter | 1 | 20V | 36V | 12V | - | - | - | 21A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 118°C | 92% | - | - | Through Hole | 1.86" L x 1.45" W x 0.52" H (47.2mm x 36.8mm x 13.2mm) | - | Enable, Active Low | - | - |
