DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PXB15-48WS05/NTDC DC CONVERTER 5V 15W |
98 |
|
Технический лист |
PXB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | - | - |
|
TON 15-4810DC DC CONVERTER 3.3V 12W |
30 |
|
Технический лист |
TON 15 (15W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 3.5A | 12 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.10" L x 0.94" W x 0.33" H (27.9mm x 23.9mm x 8.5mm) | - | - | - | - |
|
JHM2012S05DC DC CONVERTER 5V 20W |
59 |
|
Технический лист |
JHM20 (20W) | 6-DIP Module, 5 Leads | Box | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 4A | 20 W | 4 kV | Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
.jpg)
|
MGFW402412DC DC CONVERTER +/-12V 41W |
114 |
|
Технический лист |
MGFW (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V or 24V | -12V | - | - | 1.7A, 1.7A | 41 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CE, cURus, DEMKO | - |
|

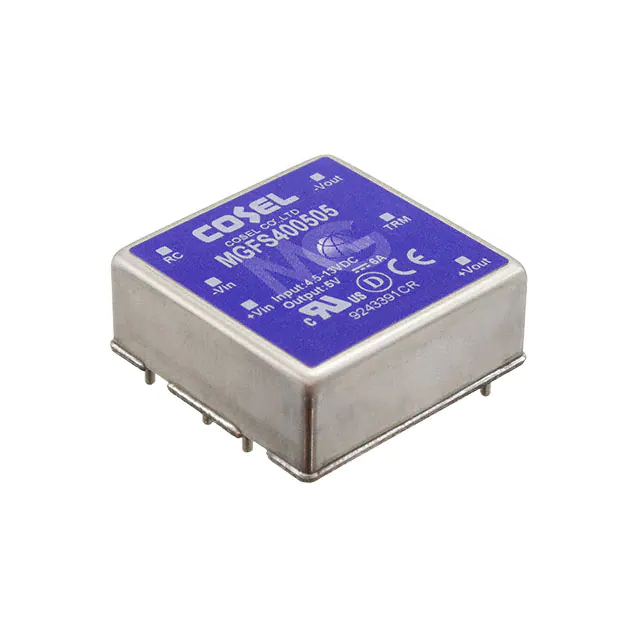

MGFS400505DC DC CONVERTER 5V 30W |
99 |
|
Технический лист |
MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 13V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CE, cURus, DEMKO | - |
|
|
MGFS402415DC DC CONVERTER 15V 41W |
39 |
|
Технический лист |
MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2.7A | 41 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CE, cURus, DEMKO | - |
|

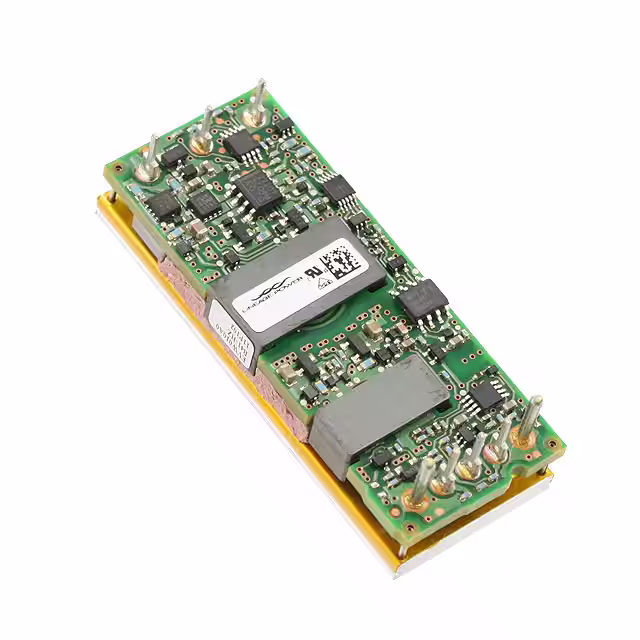

EVW010A0B41-HZDC DC CONVERTER 12V 120W |
448 |
|
Технический лист |
EVW010A0B | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93.5% | - | - | Through Hole | 2.28" L x 0.90" W x 0.31" H (57.9mm x 22.9mm x 7.8mm) | - | Enable, Active Low | - | - |
|
TEN 25-4823WIDC DC CONVERTER +/-15V 30W |
80 |
|
Технический лист |
TEN 25WI (30W) | 7-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.60" W x 0.37" H (50.8mm x 40.6mm x 9.3mm) | - | - | - | - |
|
TEN 40-2411EDC DC CONVERTER 5V 40W |
41 |
|
Технический лист |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|
LTM8026MPV#PBFDC DC CONVERTER 1.2-24V |
113 |
|
Технический лист |
µModule® | 81-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.11" H (15.0mm x 11.3mm x 2.8mm) | 81-LGA (15x11.25) | - | - | - |
|
AXA02B18-LDC DC CONVERTER 12V 25W |
460 |
|
Технический лист |
AXA (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.09A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 20-4823WINDC DC CONVERTER +/-15V 20W |
311 |
|
Технический лист |
TEN 20WIN (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 665mA, 665mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THP 3-2411DC DC CONVERTER 5V 3W |
137 |
|
Технический лист |
THP 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 40V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|
THM 10-2415WIDC DC CONVERTER 24V 10W |
67 |
|
Технический лист |
THM 10WI (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 416mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
RP15-2405SFDC DC CONVERTER 5V 15W |
29 |
|
Технический лист |
POWERLINE RP15-F (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
LTM4631EY#PBFDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
37 |
|
Технический лист |
µModule® | 144-BBGA | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 10A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.11" H (16.0mm x 16.0mm x 2.7mm) | 144-BGA (16x16) | Enable, Active High | - | - |
|
0RCY-D4T12FGDC-DC 36-75V IN 12V 20A OUT 240W |
502 |
|
Технический лист |
0RCY-D4T12F (240W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 20A | 240 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 95.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.48" H (58.4mm x 22.9mm x 12.2mm) | Eighth Brick | Enable, Active Low | CSA, UL | - |
|
LTM4609IY#PBFDC DC CONVERTER 0.8-34V |
97 |
|
Технический лист |
µModule® | 141-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 0.8 ~ 34V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 85°C | 98% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.13" H (15.0mm x 15.0mm x 3.4mm) | 141-BGA (15x15) | - | - | - |
|
PXD10-24WD12DC DC CONVERTER +/-12V 10W |
91 |
|
Технический лист |
PXD (10W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | - | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
CC15-2405SFP-EDC DC CONVERTER 5V 15W |
59 |
|
Технический лист |
CC-P-E (15W) | 20-DIP Module, 17 Leads | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.51" L x 1.17" W x 0.27" H (38.4mm x 29.6mm x 6.8mm) | - | Enable, Active Low | - | - |
