DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

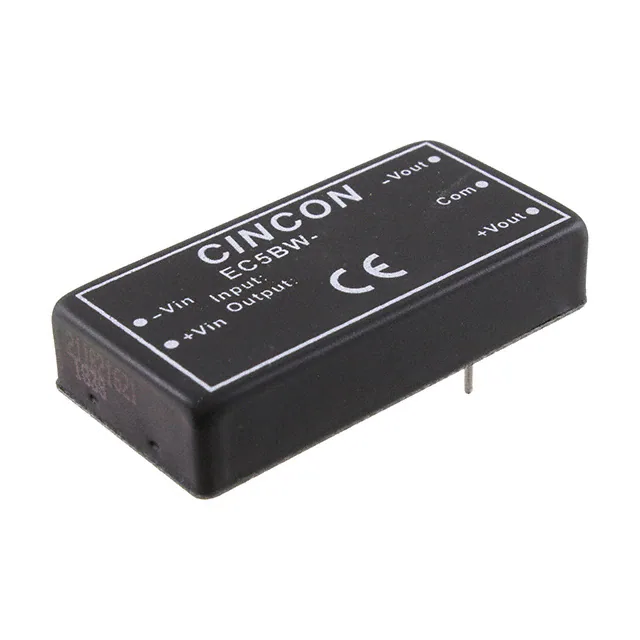

EC5BW-24S05DC DC CONVERTER 5V 15W |
116 |
|
Технический лист |
EC5BW (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
MGXS62412DC DC CONVERTER 12V 6W |
252 |
|
Технический лист |
MGX (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 6V | 60V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
S24SE05006NDFADC DC CONVERTER 5V 30W |
425 |
|
Технический лист |
S24SE (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active Low | - | - |
|
TDR 3-0511SMDC DC CONVERTER 5V 3W |
142 |
|
Технический лист |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|

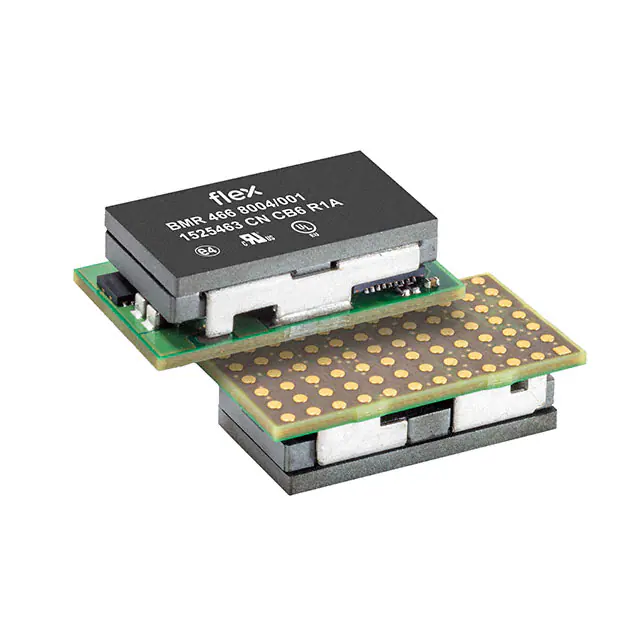

BMR4668004/001DC DC CONVERTER 0.6-1.8V 108W |
856 |
|
Технический лист |
BMR466 (108) | 84-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 1.8V | - | - | - | 60A | 108 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 150°C (With Derating) | 93.6% | - | - | Surface Mount | 0.98" L x 0.55" W x 0.28" H (25.0mm x 14.0mm x 7.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
JTF1248D12DC DC CONVERTER +/-12V 12W |
185 |
|
Технический лист |
JTF (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 500mA, 500mA | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|

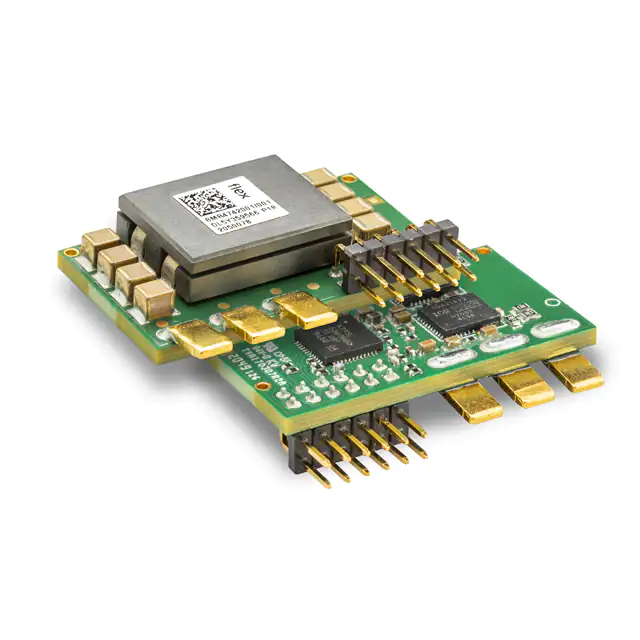

BMR4742001/0016-15VIN; 0.6-3.3VOUT; 80A; NON-I |
196 |
|
Технический лист |
- | 15-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 15V | 0.6 ~ 3.3V | - | - | - | 80A | 264 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense, Standby Output | -40°C ~ 125°C (With Derating) | 95.1% | - | - | Through Hole | 1.30" L x 0.34" W x 0.75" H (33.0mm x 8.6mm x 19.0mm) | - | Enable, Active High | cURus, UL | 62368-1 |
|
LTM8052IY#PBFDC DC CONVERTER 1.2-24V |
126 |
|
Технический лист |
µModule® | 81-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.11" H (15.0mm x 11.3mm x 2.8mm) | 81-BGA (15x11.25) | - | - | - |
|

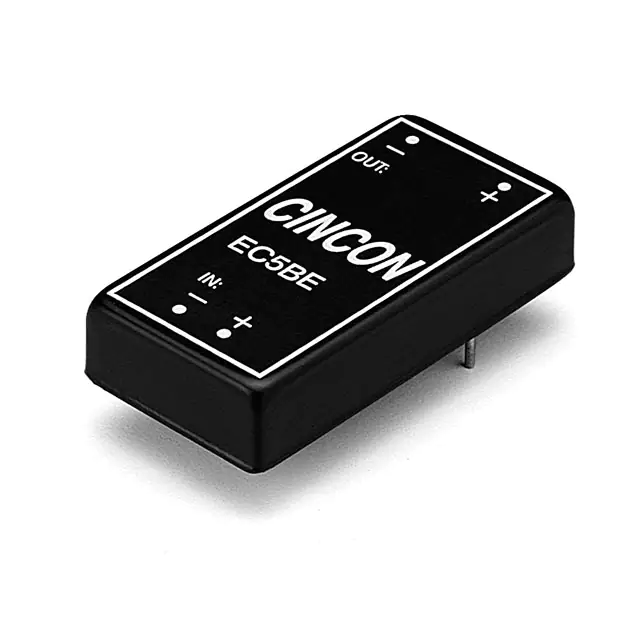

EC5BE11DC DC CONVERTER 5V 15W |
280 |
|
Технический лист |
EC5BE (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
|
S24SE3R306PDFADC DC CONVERTER 3.3V 20W |
138 |
|
Технический лист |
S24SE (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 6A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
SIL40C2-00SADJ-VJDC DC CONVERTER 0.6-5V 200W |
210 |
|
Технический лист |
SIL40C2 (200W) | 11-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 13.8V | 0.6 ~ 5V | - | - | - | 40A | 200 W | - | ITE (Commercial) | Remote On/Off, OVP, SCP | 0°C ~ 70°C | 94% | - | - | Through Hole | 1.20" L x 0.43" W x 1.10" H (30.5mm x 10.9mm x 27.9mm) | - | - | - | - |
|
EHHD006A0B41ZDC DC CONVERTER 12V 72W |
140 |
|
Технический лист |
Hammerhead™ EHHD006A0B (72W) | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 6A | 72 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92.5% | - | - | Through Hole | 2.28" L x 0.90" W x 0.31" H (57.9mm x 22.9mm x 7.8mm) | - | Enable, Active Low | - | - |
|
MPM3690GBF-30A-TDC DC CONVERTER 2X3.3V |
140 |
|
Технический лист |
MPM | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4V | 16V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | - | - | 18A, 18A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 125°C (TJ) | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.2mm) | 144-BGA (16x16) | Enable, Active Floating | - | - |
|
LTM4601AHVEV#PBFDC DC CONVERTER 0.6-5V |
66 |
|
Технический лист |
µModule® | 133-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 133-LGA (15x15) | - | - | - |
|
TSR 3-2450ADC DC CONVERTER 3-6V 18W |
149 |
|
Технический лист |
TSR-3 | 5-SIP Module | Box | Active | Linear Regulator Replacement | 1 | 10V | 30V | 3 ~ 6V | - | - | - | 3A | 18 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 0.65" L x 0.41" W x 0.24" H (16.5mm x 10.4mm x 6.2mm) | - | - | - | - |
|

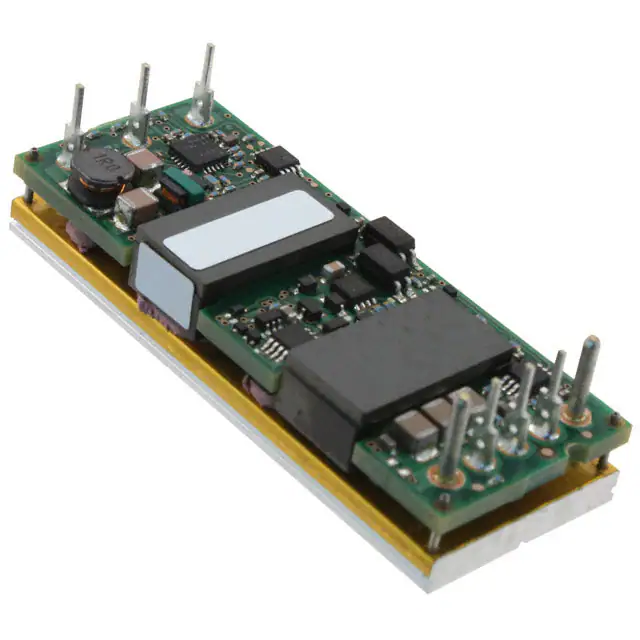

ESTW004A2C41-HZDC DC CONVERTER 15V 63W |
1,478 |
|
Технический лист |
STINGRAY™ ESTW004A2C | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 4.2A | 63 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.28" L x 0.90" W x 0.47" H (57.9mm x 22.8mm x 12.0mm) | - | Enable, Active Low | - | - |
|
JWK1024S24DC DC CONVERTER 24V 10W |
165 |
|
Технический лист |
JWK10 (10W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 410mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 100°C | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|
TEN 5-2413WIDC DC CONVERTER 15V 6W |
311 |
|
Технический лист |
TEN 5WI (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
RPA50S-4812SW/PDC DC CONVERTER 12V 50W |
163 |
|
Технический лист |
RPA50S-W (50W) | Sixteenth Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.2A | 50 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 54°C | 89% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.3mm) | - | - | - | - |
|
LTM4602HVEV#PBFDC DC CONVERTER 0.6-5V |
130 |
|
Технический лист |
µModule® | 104-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 104-LGA (15x15) | - | - | - |
