Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGN2CM-DC24RELAY GEN PURPOSE DPDT 30A 24V |
0 |
|
Технический лист |
MGN | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 83.3 mA | Non Latching | - | Screw Terminal | - | Class F | 18 VDC | - | 30 ms | 30 ms | -40°C ~ 115°C | - | cURus | General Purpose | - | - |
|
MY4ZH-AC110/120RELAY GEN PURPOSE 4PDT 3A 120V |
0 |
|
Технический лист |
MY | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 125VAC, 125VDC - Max | 330VA, 72W | 9.2 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 60°C | Silver Alloy | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
MY4ZH-AC24RELAY GEN PURPOSE 4PDT 3A 24V |
0 |
|
Технический лист |
MY | Bulk | Active | Socketable | 24VAC | 4PDT (4 Form C) | 3 A | 125VAC, 125VDC - Max | 330VA, 72W | 46 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -25°C ~ 60°C | Silver Alloy | CE, CSA, UR, VDE | General Purpose | - | - |
|
MK2KP DC6RELAY GEN PURPOSE DPDT 5A 6V |
0 |
|
- |
MKK | Bulk | Active | Socketable | 6VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 72W | 390 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 4.8 VDC | - | 30 ms | 30 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|
|
KAP-11DY-12RELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
- |
KAP | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 100 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 9 VDC | - | - | - | -45°C ~ 85°C | Silver (Ag) | - | General Purpose | - | - |
|

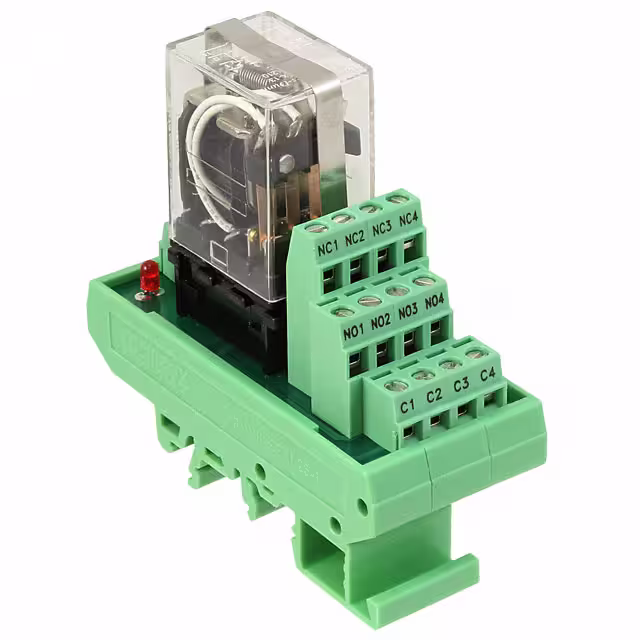

5604028RELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
Технический лист |
UMK | Bulk | Obsolete | DIN Rail | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 36.9 mA | Non Latching | Diode, Socket Included | Screw Terminal | - | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | - | General Purpose | - | - |
|
|
3TX71300AF13OPEN PWR RELAY,SPST-NO-DM,40A,12 |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300AH13OPEN PWR RELAY,SPST-NO-DM,40A,24 |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300AC13OPEN PWR RELAY,SPST-NO-DM,40A,24 |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300QF13OPEN PWR RELAY,SPST-NC-DM,40A,12 |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
R10-E2Y4-V700RELAY GEN PURPOSE 4PDT 3A 24V |
0 |
|
Технический лист |
R10 | Bulk | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
ARB-120-ADARELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Технический лист |
ARB | Box | Discontinued | Socketable | 120VAC/DC | DPDT (2 Form C) | 10 A | 240VAC - Nom | - | - | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | - | General Purpose | - | - |
|
288-320RELAY GEN PURPOSE 16A 24V |
0 |
|
Технический лист |
288 | Box | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 21.8 mA | Non Latching | - | Spring Terminal | - | - | - | - | 8 ms | 2 ms | -25°C ~ 40°C | Silver Tin Oxide (AgSnO) | EAC | General Purpose | - | - |
|
KHU-17A18-120RELAY GEN PURPOSE 4PDT 3A 120V |
0 |
|
Технический лист |
KH | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 11 mA | Non Latching | - | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
PRD-6058110-50 AMP HEAVY DUTY |
0 |
|
- |
PRD | Bulk | Obsolete | Chassis Mount | - | - | 50 A | 600VAC, 125VDC - Nom | - | - | Non Latching | - | - | - | Class B | - | - | 40 ms | 20 ms | - | - | CSA, UL | General Purpose | - | - |
|
|
8501RS24P14V20RELAY 240VAC 3A TYPE R +OPTIONS |
0 |
|
- |
Square D 8501R | Box | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 300VAC - Max | 900VA | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
R10-E1W4-115VRELAY GEN PURPOSE 4PDT 7.5A 115V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 115VAC | 4PDT (4 Form C) | 7.5 A | 120VAC - Nom | - | 12.8 mA | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
R10-E7P2-J1.0KRELAY GEN PURPOSE DPDT 3A 12V |
0 |
|
Технический лист |
R10 | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 45 mA | Non Latching | - | PC Pin | - | - | 8.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
AEP510X0RELAY AUTO SPST 10A 100V |
0 |
|
Технический лист |
AEP | Bulk | Last Time Buy | Chassis Mount | 100VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 400VDC - Nom | 27700VA | 12 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Hermetically | - | 75 VDC | 8 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - | cURus | General Purpose | - | - |
|
AEP31048RELAY AUTO SPST 10A 48V |
0 |
|
Технический лист |
AEP | Bulk | Last Time Buy | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 400VDC - Nom | 2770VA | 26 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 36 VDC | 3.84 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - | cURus | General Purpose | - | - |
