Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3RQ31182AB00RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 12 ms | 14 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
PRD-11AY1-240RELAY GEN PURPOSE DPDT 25A 240V |
0 |
|
Технический лист |
PRD | Bulk | Obsolete | Chassis Mount | 240VAC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 43 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 204 VAC | 24 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
MK2KP AC24RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
- |
MKK | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 72W | 66 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 19.2 VAC | - | 30 ms | 30 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MK2KP DC125RELAY GEN PURPOSE DPDT 5A 125V |
0 |
|
- |
MKK | Bulk | Active | Socketable | 125VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 72W | 21.6 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 100 VDC | - | 30 ms | 30 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|
8501RS43P14V20PLUG IN RELAY, TYPE R, MINIATURE |
0 |
|
Технический лист |
Square D 8501R | Box | Active | Socketable | 120VAC | 3PDT (3 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
199APX-342199APX342 - KOHLER |
0 |
|
Технический лист |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LZS:PT5D5R24PLUG-IN RELAY COMPACT UNIT |
0 |
|
- |
SIRIUS LZS | Box | Active | DIN Rail | 24VAC | 4PDT (4 Form C) | - | - | - | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | 21.6 VAC | - | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, EAC, UKCA, VDE | General Purpose | - | - |
|

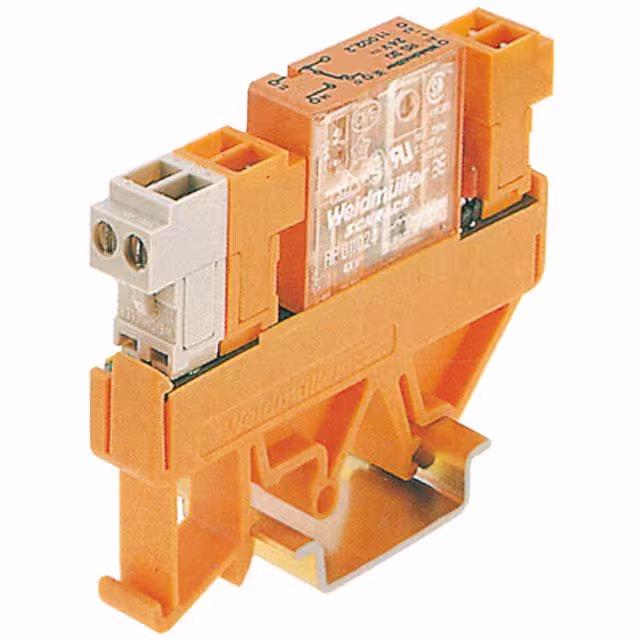

1100860000RELAY GEN PURPOSE SPDT 3A 230V |
0 |
|
Технический лист |
RS | Bulk | Obsolete | DIN Rail | 230VAC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | 3.2 mA | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 10 ms | 9 ms | -25°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | CE | General Purpose | - | - |
|
|
ARLEV200-ETRELAY GEN PURPOSE SPST 500A 48V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-FTRELAY GEN PURPOSE SPST 500A 72V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-CTRELAY GEN PURPOSE SPST 500A 24V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-BTRELAY GEN PURPOSE SPST 500A 12V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LZS:PT2D5L24PLUG-IN RELAY COMPACT UNIT |
0 |
|
- |
SIRIUS LZS | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 4 A | 250VAC, 24VDC - Max | 1000VA, 96W | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | 21.6 VDC | - | 15 ms | 18 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, EAC, UKCA, VDE | General Purpose | - | - |
|
789-329RELAY GEN PURPOSE SPDT 12A 24V |
0 |
|
Технический лист |
789 | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 12 A | 250VAC - Max | 3000VA | 19 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 5 ms | -20°C ~ 40°C | Silver Tin Oxide (AgSnO) | EAC | General Purpose | - | - |
|
|
R10-E2521-1RELAY DRY CIR 8A PCB |
0 |
|
- |
R10 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
8501CO7V08POWER RELAY, TYPE C, 2 HP, 30A R |
0 |
|
Технический лист |
Square D 8501C | Box | Obsolete | Chassis Mount | 208VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | CE, CSA, UL | General Purpose | - | - |
|
KAP-11AY-120RELAY GEN PURPOSE DPDT 5A 120V |
0 |
|
- |
KAP | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
KAP-11AY-24RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
- |
KAP | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 84 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
2042-3849RELAY GEN PURP DPDT 5A 24-230V |
0 |
|
Технический лист |
2042 | Box | Active | Socketable | 24 ~ 230VAC/DC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 49.1 mA | Non Latching | Lighted Indicator | Plug In | - | - | - | - | 8 ms | 6 ms | -40° ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
2042-3869RELAY GEN PURPOSE 5A 24-230V |
0 |
|
Технический лист |
2042 | Box | Active | Socketable | 24 ~ 230VAC/DC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 1250VA | 2.8 mA | Non Latching | Lighted Indicator | Plug In | - | - | - | - | 8 ms | 6 ms | -40° ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
