Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3RQ30182AM080AA0RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 5 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
199X13OPEN PWR RY, DPDT, 40A, 24VDC |
0 |
|
Технический лист |
SE | Box | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 40 A | 600VDC - Max | 24000W | 82.8 mA | Non Latching | - | Screw Terminal | - | - | 20.4 VDC | 2.4 VDC | - | - | -55°C ~ 55°C | Silver Alloy | CE, CSA, cULus | General Purpose | - | - |
|
K10P-11AT5-240RELAY GEN PURPOSE DPDT 15A 240V |
0 |
|
Технический лист |
K10 | Bulk | Obsolete | Chassis Mount | 240VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 6 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | 24 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
LZX:MT328024PLUG-IN RELAY. 3 CO CONTACTS. |
0 |
|
- |
SIRIUS LZX | Box | Active | Socketable | 24VAC | 3PDT (3 Form C) | - | - | - | - | Non Latching | Lighted Indicator | Plug In | - | - | 21.6 VAC | - | - | - | -40°C ~ 50°C | Silver Nickel (AgNi) | CE, EAC, UKCA, UL, VDE | General Purpose | - | - |
|
|
LZX:MT323024PLUG-IN RELAY, 3CO WITH LED 28MM |
0 |
|
Технический лист |
SIRIUS LZX | Box | Active | Socketable | 24VDC | 3PDT (3 Form C) | - | - | - | - | Non Latching | Lighted Indicator | Plug In | - | - | 21.6 VDC | - | - | - | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, CSA, EAC, UKCA, UL, VDE | General Purpose | - | - |
|
ARB-120-ABARELAY GEN PURPOSE SPDT 10A 120V |
0 |
|
Технический лист |
ARB | Box | Discontinued | Socketable | 120VAC/DC | SPDT (1 Form C) | 10 A | 240VAC - Nom | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | - | General Purpose | - | - |
|
|
ARLEV200-ESRELAY GEN PURPOSE SPST 500A 48V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-FSRELAY GEN PURPOSE SPST 500A 72V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-FRELAY GEN PURPOSE SPST 500A 72V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-CSRELAY GEN PURPOSE SPST 500A 24V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-ERELAY GEN PURPOSE SPST 500A 48V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-CRELAY GEN PURPOSE SPST 500A 24V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-BRELAY GEN PURPOSE SPST 500A 12V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARLEV200-BSRELAY GEN PURPOSE SPST 500A 12V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PRD-11AG1-120RELAY GEN PURPOSE DPDT 30A 120V |
0 |
|
Технический лист |
PRD | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
R10-E1W2-V52RELAY GEN PURPOSE DPDT 7.5A 6V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 6VDC | DPDT (2 Form C) | 7.5 A | 120VAC - Nom | - | 115 mA | Non Latching | - | Plug In | - | - | 4.5 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
9406621001RELAY GEN PURPOSE DPDT 4A 115V |
0 |
|
Технический лист |
RS | Bulk | Obsolete | DIN Rail | 115VAC/DC | DPDT (2 Form C) | 4 A | 250VAC - Max | 1000VA | 5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 13 ms | 10 ms | -25°C ~ 40°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
KHAU-11A11-120RELAY GEN PURPOSE DPDT 3A 120V |
0 |
|
Технический лист |
KHA | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 3 A | 240VAC - Nom | - | 11 mA | Non Latching | - | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

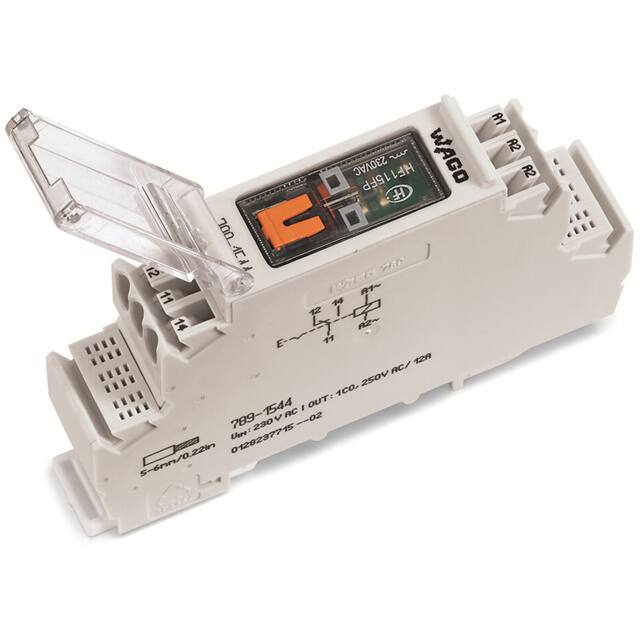

789-1544RELAY GEN PURPOSE SPDT 12A 230V |
0 |
|
Технический лист |
789 | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 12 A | 250VAC - Max | 3000VA | 3.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 8 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | EAC | General Purpose | - | - |
|
3RQ31181AB00RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 24VAC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 12 ms | 14 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
