Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T77V1D10-05RELAY GEN PURPOSE SPST 10A 5V |
417 |
|
Технический лист |
T77 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 90 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
3-1415535-7RELAY GEN PURPOSE SPST 5A 24V |
500 |
|
Технический лист |
REL, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 400VAC - Max | 2000VA | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
JW2ASN-B-DC24VRELAY GEN PURPOSE DPST 5A 24V |
1,956 |
|
Технический лист |
JW | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 22 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-1A-E-ASI DC48RELAY GEN PURPOSE SPST 16A 48V |
875 |
|
Технический лист |
G2RL | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
J115F11CH24VDCS61.5URELAY GEN PURPOSE SPDT 50A 24V |
781 |
|
Технический лист |
J115F | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
RTE44024RELAY GEN PURPOSE DPST 8A 24V |
2,467 |
|
Технический лист |
RT2, SCHRACK | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RT334005RELAY GEN PURPOSE SPST 16A 5V |
4,790 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
T9GV1L14-18RELAY GEN PURPOSE SPST 30A 18V |
3,858 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 13.5 VDC | 1.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|

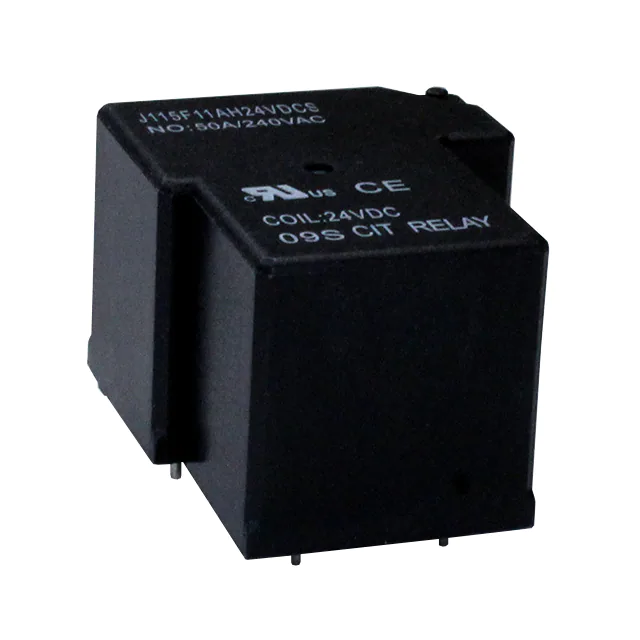

J115F11AH24VDCSH1.5URELAY GEN PURPOSE SPST 50A 24V |
555 |
|
Технический лист |
J115F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
J115F31C110VDCS.9RELAY GEN PURPOSE SPDT 40A 110V |
213 |
|
Технический лист |
J115F3 | Tray | Active | Chassis Mount | 110VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 8.2 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
G6RN-1 DC18RELAY GEN PURPOSE SPDT 8A 18V |
244 |
|
Технический лист |
G6RN | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 8 A | 250VAC, 30VDC - Max | 2000VA, 240W | 11.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 12.6 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CSA, cURus, UR, VDE | General Purpose | - | - |
|
RTB14012RELAY GEN PURPOSE SPDT 12A 12V |
2,537 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
AP2CD02400GRELAY GEN PURPOSE INDUSTRIAL |
1,964 |
|
- |
- | Box | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | - | - | - | Non Latching | - | PC Pin | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
8869870000RELAY GEN PURPOSE DPDT 8A 12V |
13 |
|
Технический лист |
RCI | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 33.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cULus, VDE | General Purpose | - | - |
|
J1511CT24VDC.9DRELAY GEN PURPOSE SPDT 20A 24V |
185 |
|
Технический лист |
J151 | Tray | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
T9GV1L24-22RELAY GEN PURPOSE SPST 30A 22V |
20,851 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 22VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 41 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 16.5 VDC | 2.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
AZSR131-1AE-24DRELAY EV CHG SOLAR SPST 35A 24V |
334 |
|
Технический лист |
AZSR131 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 35 A | 277VAC - Max | 9695VA | 58.5 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV | EV Charging, Solar | - | - |
|
|
J116F11A5VDCS1.5RELAY GEN PURPOSE SPST 50A 5V |
519 |
|
Технический лист |
J116F1 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 294.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
ALZ51B24WRELAY GEN PURPOSE SPST 16A 24V |
164 |
|
Технический лист |
ALZ | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
G6RL-1A DC24RELAY GEN PURPOSE SPST 10A 24V |
7,384 |
|
Технический лист |
G6RL | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 9.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
