Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RTE24006RELAY GEN PURPOSE DPDT 8A 6V |
2,215 |
|
Технический лист |
RT2, SCHRACK | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.2 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|

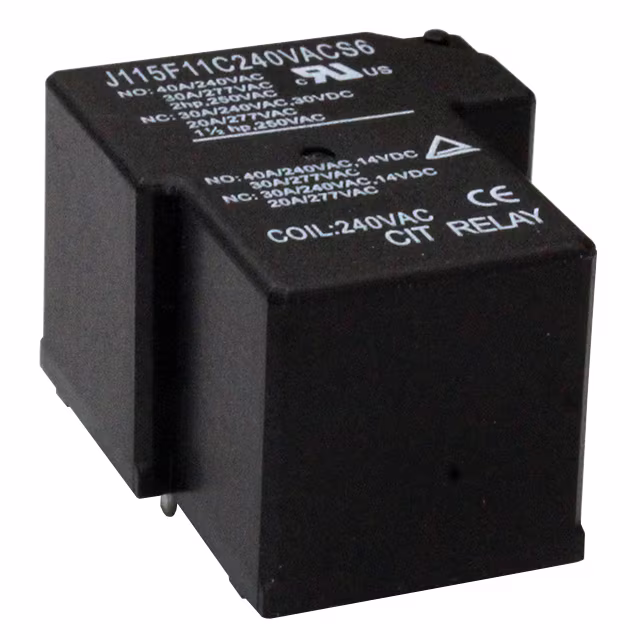

J115F11C240VACS6RELAY GEN PURPOSE SPDT 40A 240V |
2,096 |
|
Технический лист |
J115F1 | Tube | Active | Through Hole | 240VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 15.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 180 VAC | 72 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
AZ2280-1C-208AEFRELAY GEN PURPOSE SPDT 20A 208V |
425 |
|
Технический лист |
AZ2280 | Tray | Active | Chassis Mount | 208VAC | SPDT (1 Form C) | 20 A | 277VAC, 28VDC - Max | 11080VA, 840W | 18.9 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 176.8 VAC | 41.6 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|

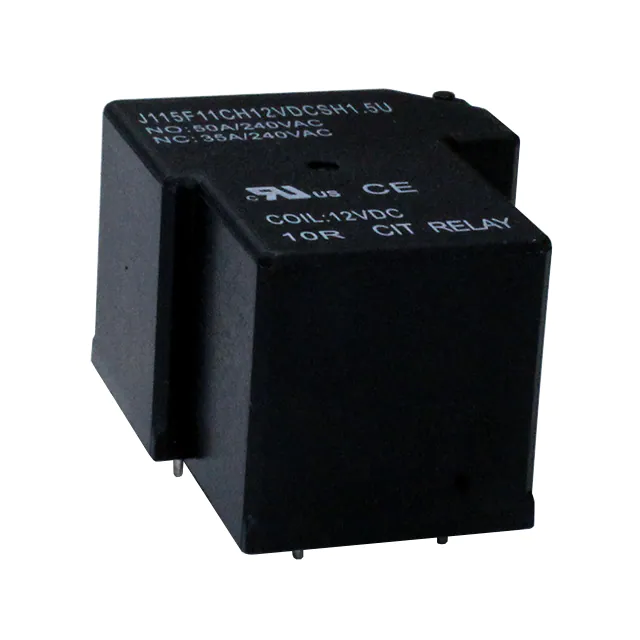

J115F11CH12VDCSH1.5URELAY GEN PURPOSE SPDT 50A 12V |
116 |
|
Технический лист |
J115F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
G5RL-1A-E-LN DC12RELAY GEN PURPOSE SPST 16A 12V |
1,792 |
|
Технический лист |
G5RL | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 44.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
|
6-1415355-1RELAY GEN PURPOSE SPDT 6A 24V |
304 |
|
Технический лист |
PBH, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 15 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 10 ms | 20 ms | -20°C ~ 105°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
T9GS5L24-9RELAY GEN PURPOSE SPDT 20A 9V |
4,697 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 9VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 100 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
L114FL1AS24VDC.60DRELAY GEN PURPOSE SPST 20A 24V |
122 |
|
Технический лист |
L114FL | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 27.1 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
G2RL-14-E-CF DC48RELAY GEN PURPOSE SPDT 16A 48V |
159 |
|
Технический лист |
G2RL | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
RT134012RELAY GEN PURPOSE SPST 12A 12V |
11,477 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RY211012RRELAY GEN PURPOSE SPDT 8A 12V |
9,830 |
|
Технический лист |
RY, SCHRACK | Tape & Reel (TR) | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|

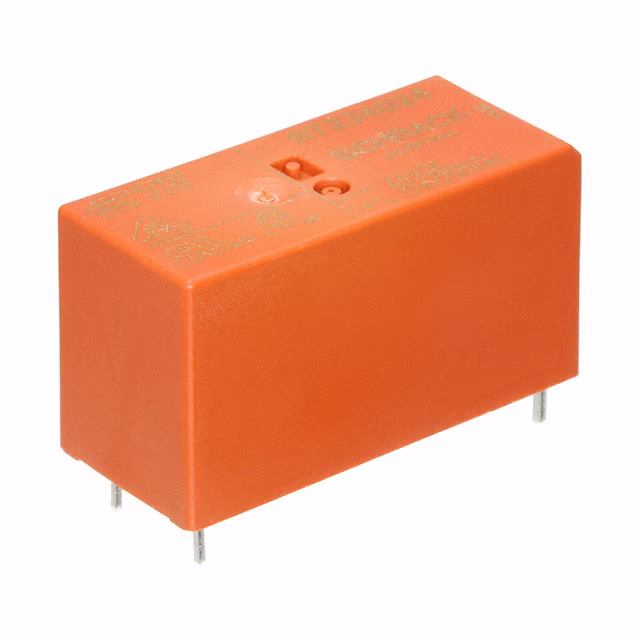

RT234024RELAY GEN PURPOSE SPST 12A 24V |
1,879 |
|
Технический лист |
RT1, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|

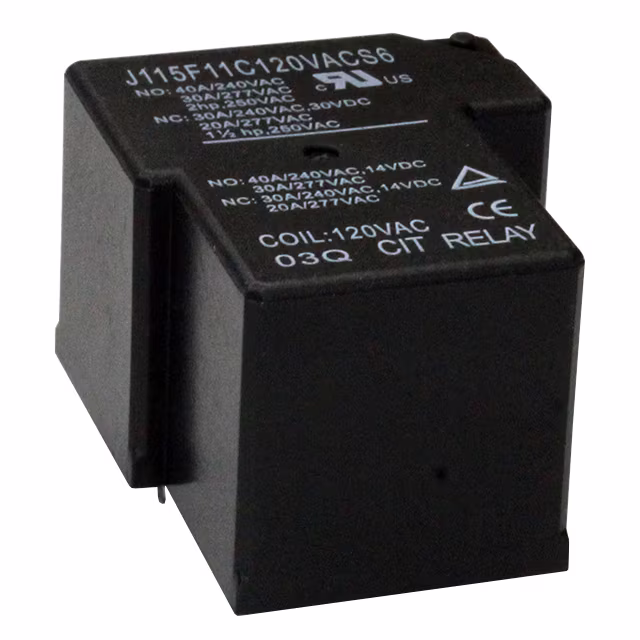

J115F11C120VACS6RELAY GEN PURPOSE SPDT 40A 120V |
150 |
|
Технический лист |
J115F1 | Tube | Active | Through Hole | 120VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 39.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
V23061B1002A501RELAY GEN PURPOSE SPDT 8A 5V |
2,994 |
|
Технический лист |
MSR, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
RYA31005RELAY GEN PURPOSE SPST 8A 5V |
809 |
|
Технический лист |
RY, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
T9GV5L24-24RELAY GEN PURPOSE SPDT 20A 24V |
1,303 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
T9GV5L24-12RELAY GEN PURPOSE SPDT 20A 12V |
783 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 9 VDC | 1.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|

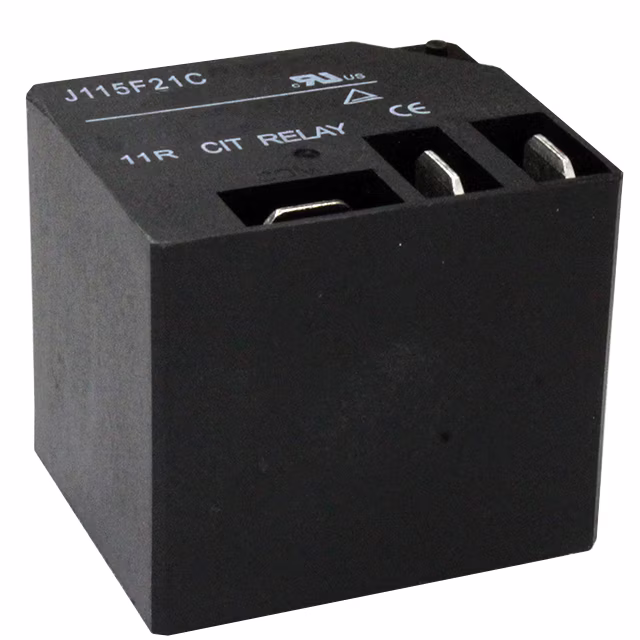

J115F21CH12VDCS61.5URELAY GEN PURPOSE SPDT 50A 12V |
1,271 |
|
Технический лист |
J115F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
RT334018RELAY GEN PURPOSE SPST 16A 18V |
1,465 |
|
Технический лист |
RT1, SCHRACK | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RY533024RELAY GEN PURPOSE SPST 8A 24V |
1,729 |
|
Технический лист |
RY, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
