Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R10-E1L4-115VRELAY GEN PURPOSE 4PDT 7.5A 115V |
0 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 115VAC | 4PDT (4 Form C) | 7.5 A | 120VAC - Nom | - | 12.8 mA | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Gold Platinum Silver (AuPtAg) | CSA, UR | General Purpose | - | - |
|
R10-E4172-1RELAY DRY CIR 8A PCB |
0 |
|
- |
R10 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R10-E5827-1RELAY DRY CIR |
0 |
|
- |
R10 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R10-R0004-1RELAY DRY CIR |
0 |
|
- |
R10 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R10-T1P2-V700RELAY GEN PURPOSE DPDT 3A 24V |
0 |
|
Технический лист |
R10 | Tray | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

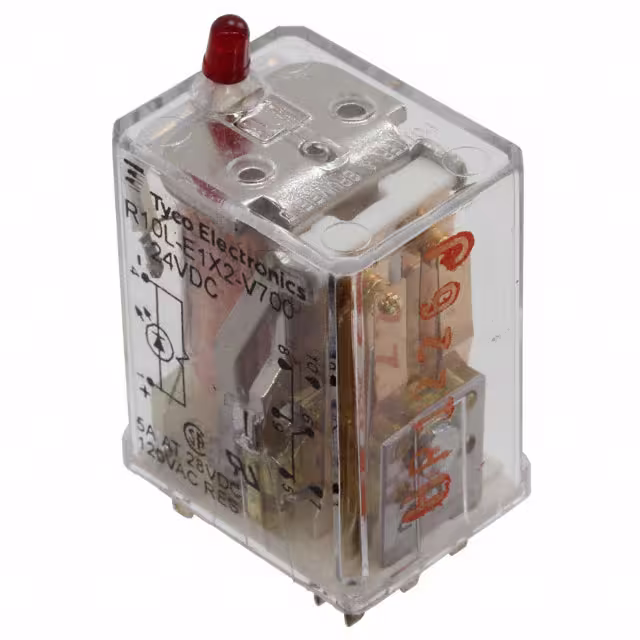

R10L-E1X2-V700RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
Технический лист |
R10 | Tray | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

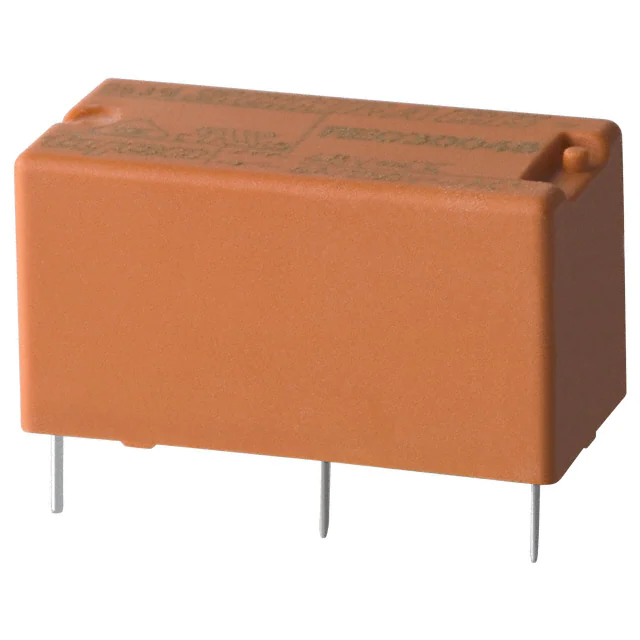

2-1393217-7RELAY GEN PURPOSE SPST 6A 12V |
0 |
|
- |
RE, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | - | cURus, VDE | General Purpose | - | - |
|
|
RM303024RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Технический лист |
RM, SCHRACK | Bulk | Active | Chassis Mount | 24VDC | 3PDT (3 Form C) | 10 A | 440VAC - Max | 4000VA | 50 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
2-1393230-8RELAY POWER |
0 |
|
Технический лист |
RP II/1, SCHRACK | Box | Obsolete | - | - | - | - | 400VAC - Max | - | - | - | - | - | Sealed - Flux Protection | - | - | - | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

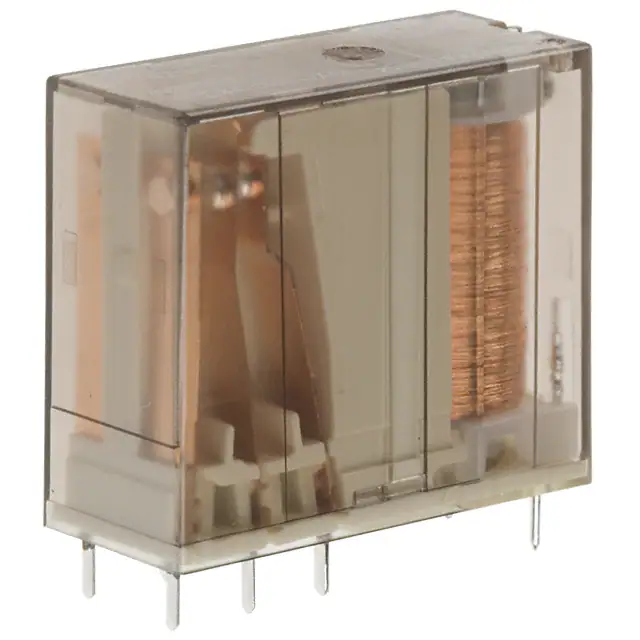

5-1393234-5RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
Технический лист |
RP II/2, SCHRACK | Box | Active | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 9 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
7-1393234-2RELAY POWER |
0 |
|
Технический лист |
RP II/2, SCHRACK | Box | Active | - | - | - | - | - | - | - | - | - | - | Sealed - Flux Protection | - | - | - | 9 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | - | - | - |
|
3-1649329-8RELAY GEN PURPOSE DPDT 8A 6V |
0 |
|
- |
RT2, SCHRACK | Box | Active | Through Hole | 6VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.2 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
3-1393224-6RELAY GEN PURPOSE SPDT 8A 15V |
0 |
|
Технический лист |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 15VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 15.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 10.5 VDC | 1.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
1-1393225-2RELAY GEN PURPOSE SPDT 8A 18V |
0 |
|
Технический лист |
RY, SCHRACK | Tube | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 13.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 12.6 VDC | 1.8 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

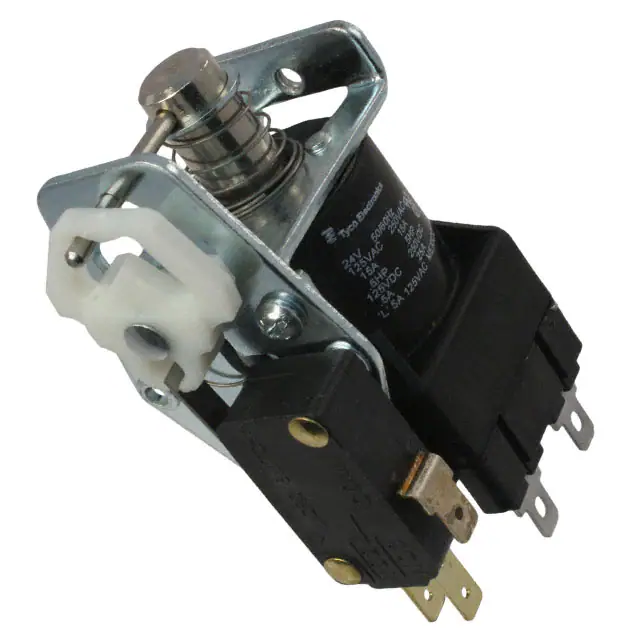

S89R5AAC1-24RELAY IMPULSE SPDT 15A 24V |
0 |
|
Технический лист |
S89R | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 15 A | 277VAC - Max | 4155VA | 375 mA | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
|
S89R5DAC1-12RELAY IMPULSE SPDT 15A 12V |
0 |
|
Технический лист |
S89R | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 15 A | 277VAC - Max | 4155VA | 533 mA | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
SDT-S-148DMR,000RELAY GEN PURPOSE SPST 10A 48V |
0 |
|
Технический лист |
SDT-R, OEG | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 11.3 mA | Non Latching | - | PC Pin | - | Class E | 36 VDC | 4.8 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
|
7-1419127-2RELAY GEN PURPOSE SPDT 12A 6V |
0 |
|
- |
SRUDH, OEG | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 2880VA, 336W | - | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 4.5 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, cURus, TUV | General Purpose | - | - |
|
T90S1D11-24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Технический лист |
T90 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T90S5D42-12RELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
Технический лист |
T90 | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 4155VA | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
