Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALE1PB12RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
Технический лист |
ALE | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
ALE1PB24RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
Технический лист |
ALE | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
ALE1PB48RELAY GEN PURPOSE SPST 16A 48V |
0 |
|
Технический лист |
ALE | Bulk | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 8.3 mA | Non Latching | - | PC Pin | - | Class B | 36 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DK1A-L-3V-FRELAY GEN PURPOSE SPST 10A 3V |
0 |
|
Технический лист |
DK | Tube | Obsolete | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 66.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G5T-1A DC5RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Технический лист |
G5T | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.75 VDC | 0.25 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - | CSA, UL, VDE | General Purpose | - | - |
|
|
G5T-1A DC12RELAY GEN PURPOSE SPST 5A 12V |
0 |
|
Технический лист |
G5T | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - | CSA, UL, VDE | General Purpose | - | - |
|
|
G5T-1A DC24RELAY GEN PURPOSE SPST 5A 24V |
0 |
|
Технический лист |
G5T | Tray | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - | CSA, UL, VDE | General Purpose | - | - |
|
HC1-H-DC12V-FRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC1-H-DC24V-FRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 37 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC2-H-DC12V-FRELAY GEN PURPOSE DPDT 7A 12V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC2-H-DC24V-FRELAY GEN PURPOSE DPDT 7A 24V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 37 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC3-H-DC12V-FRELAY GEN PURPOSE 3PDT 7A 12V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 1750VA | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
HC3-H-DC24V-FRELAY GEN PURPOSE 3PDT 7A 24V |
0 |
|
Технический лист |
HC | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 1750VA | 37 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
ORWH-SH-112HM3F,000RELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Технический лист |
ORWH, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 70°C | Silver Nickel (AgNi) | cURus, TUV | General Purpose | - | - |
|
|
ORWH-SH-124HM3F,000RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Технический лист |
ORWH, OEG | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -30°C ~ 70°C | Silver Nickel (AgNi) | cURus, TUV | General Purpose | - | - |
|
JC1AF-S-DC12V-FRELAY GEN PURPOSE SPST 15A 12V |
0 |
|
Технический лист |
JC | Bulk | Obsolete | Socketable | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 3750VA | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JC1AF-S-DC24V-FRELAY GEN PURPOSE SPST 15A 24V |
0 |
|
Технический лист |
JC | Bulk | Obsolete | Socketable | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 3750VA | 37.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|

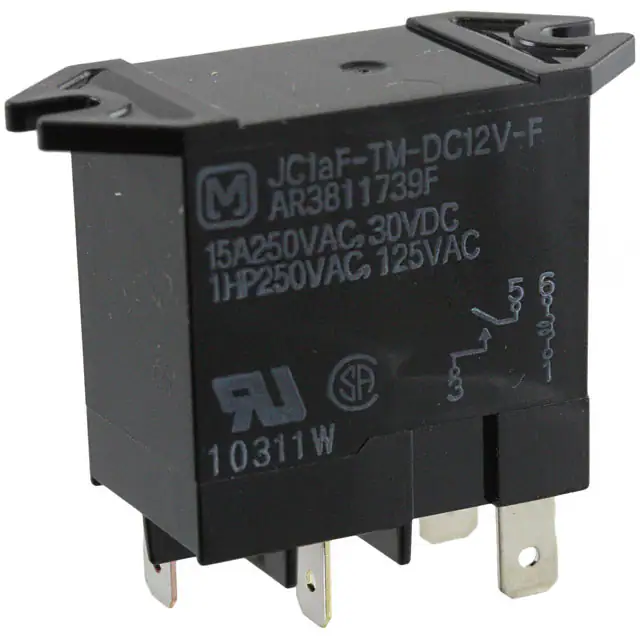

JC1AF-TM-DC12V-FRELAY GEN PURPOSE SPST 15A 12V |
0 |
|
Технический лист |
JC | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 3750VA | 75 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JC1AF-TM-DC24V-FRELAY GEN PURPOSE SPST 15A 24V |
0 |
|
Технический лист |
JC | Bulk | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 3750VA | 37.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JC2AF-DC48V-FRELAY GEN PURPOSE DPST 10A 48V |
0 |
|
Технический лист |
JC | Bulk | Obsolete | Through Hole | 48VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 20.8 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
