Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

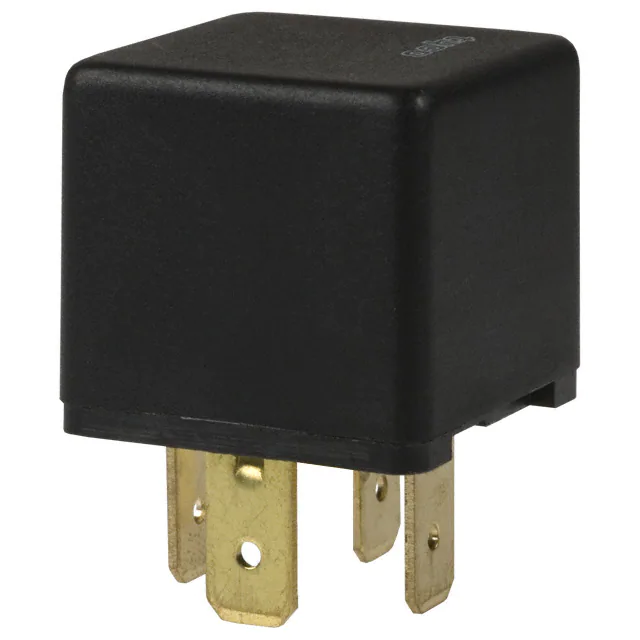

1432874-1RELAY GEN PURPOSE SPDT 40A 24V |
0 |
|
Технический лист |
VF4 | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | - | 75 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 15.6 VDC | 2.4 VDC | 10 ms | 13 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
1432876-1RELAY GEN PURPOSE SPDT 40A 24V |
0 |
|
Технический лист |
VF4 | Bulk | Obsolete | Chassis Mount | 24VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | - | 66.7 mA | Non Latching | Diode | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 15.6 VDC | 2.4 VDC | 10 ms | 13 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
1432868-1RELAY GEN PURPOSE SPDT 40A 12V |
0 |
|
Технический лист |
VF4 | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | - | 133 mA | Non Latching | - | PC Pin | - | - | 7.8 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
JQ1A-9V-FRELAY GEN PURPOSE SPST 5A 9V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 22.2 mA | Non Latching | - | PC Pin | - | Class E | 6.75 VDC | 0.45 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1A-18V-FRELAY GEN PURPOSE SPST 5A 18V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 11.1 mA | Non Latching | - | PC Pin | - | Class E | 13.5 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1AP-6V-FRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 33.3 mA | Non Latching | - | PC Pin | - | Class E | 4.8 VDC | 0.3 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1AP-9V-FRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 22.2 mA | Non Latching | - | PC Pin | - | Class E | 7.2 VDC | 0.45 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1AP-18V-FRELAY GEN PURPOSE SPST 10A 18V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 11.1 mA | Non Latching | - | PC Pin | - | Class E | 14.4 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1P-9V-FRELAY GEN PURPOSE SPDT 10A 9V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 44.4 mA | Non Latching | - | PC Pin | - | Class E | 7.2 VDC | 0.45 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JS1A-24V-FRELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1-5V-FRELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 72 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1-9V-FRELAY GEN PURPOSE SPDT 10A 9V |
0 |
|
Технический лист |
JS | Bulk | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Технический лист |
JS | Box | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1A-5V-FRELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 40 mA | Non Latching | - | PC Pin | - | Class E | 3.75 VDC | 0.25 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1A-12V-FRELAY GEN PURPOSE SPST 5A 12V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 16.7 mA | Non Latching | - | PC Pin | - | Class E | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1A-24V-FRELAY GEN PURPOSE SPST 5A 24V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 8.3 mA | Non Latching | - | PC Pin | - | Class E | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1AP-5V-FRELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 40 mA | Non Latching | - | PC Pin | - | Class E | 4 VDC | 0.25 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1AP-12V-FRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 16.7 mA | Non Latching | - | PC Pin | - | Class E | 9.6 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1AP-24V-FRELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 8.3 mA | Non Latching | - | PC Pin | - | Class E | 19.2 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1-5V-FRELAY GEN PURPOSE SPDT 5A 5V |
0 |
|
Технический лист |
JQ | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 80 mA | Non Latching | - | PC Pin | - | Class E | 3.75 VDC | 0.25 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
