Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK135-50L,118IC PWR DRIVER N-CHAN 1:1 SOT426 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | 5V | 30A | 21mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
BUK136-50L,118IC PWR DRIVER N-CHAN 1:1 SOT426 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | 5V | 40A | 15mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
BUK1M200-50SDLD,11IC PWR DRIVER N-CHANNEL 1:1 20SO |
0 |
|
Технический лист |
20-SOIC (0.295", 7.50mm Width) | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 800mA | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
BUK1M200-50SGTD,11IC PWR DRIVER N-CHANNEL 1:1 20SO |
0 |
|
Технический лист |
20-SOIC (0.295", 7.50mm Width) | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 2.7A | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | 20-SO |
SOT223-1.jpg)
|
PIP3103-T,115IC PWR DRIVER N-CHAN 1:1 SOT223 |
0 |
|
Технический лист |
TO-261-4, TO-261AA | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 700mA | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | SC-73 |
|
PIP3104-P,127IC PWR DRIVER N-CHAN 1:1 TO220AB |
0 |
|
Технический лист |
TO-220-3 | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 8A | 68mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-220AB |
|
|
PIP3105-P,127IC PWR DRIVER N-CHAN 1:1 TO220AB |
0 |
|
Технический лист |
TO-220-3 | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 16A | 36mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-220AB |
|
PIP3107-D,118IC PWR DRIVER N-CHANNEL 1:1 DPAK |
0 |
|
Технический лист |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 16A | 36mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | DPAK |
|

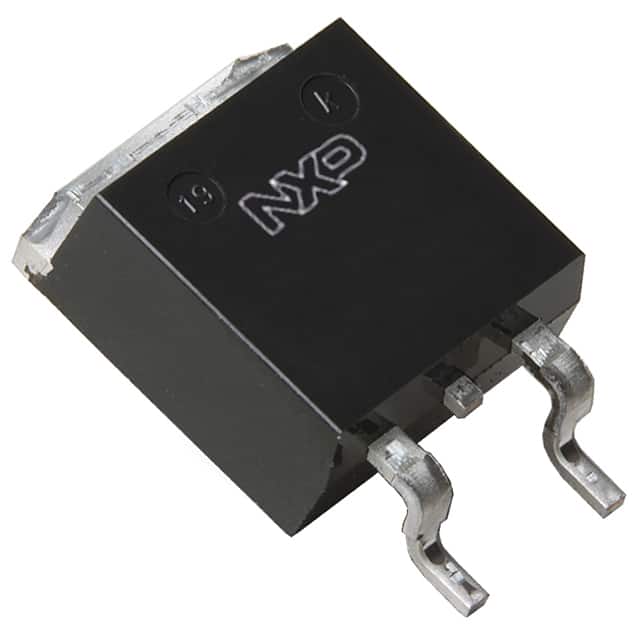

PIP3115-B,118IC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Технический лист |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 8A | 68mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
PIP3119-P,127IC PWR DRIVER N-CHAN 1:1 TO220AB |
0 |
|
Технический лист |
TO-220-3 | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 20A | 22mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-220AB |
.jpg)
|

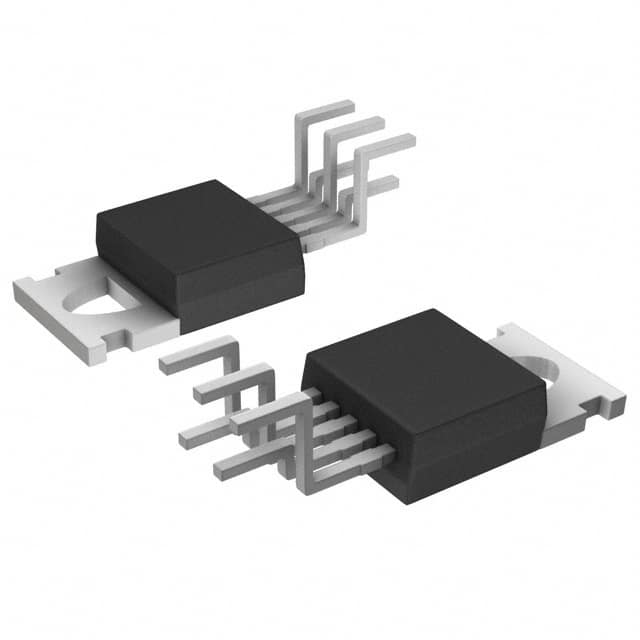

PIP3201-A,127IC PWR DRVR N-CH 1:1 SOT263B-01 |
0 |
|
Технический лист |
TO-220-5 Formed Leads | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 20A | 28mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | - | - | - | Through Hole | SOT263B-01 |
|
PIP3207-DC,118IC PWR SWITCH N-CHAN 1:1 D2PAK-7 |
0 |
|
Технический лист |
TO-263-7, D2PAK (6 Leads + Tab) | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 16A | 30mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK-7 |
|
|
PIP3208-A,127IC PWR SWITCH N-CH 1:1 SOT263B |
0 |
|
Технический лист |
TO-220-5 Formed Leads | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 6A | 135mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | - | - | - | Through Hole | SOT263B-01 |
|
|
PIP3209-R,118IC PWR SWITCH N-CHAN 1:1 SOT426 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 6A | 135mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
PIP3210-R,118IC PWR SWITCH N-CHAN 1:1 SOT426 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 20A | 28mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
MCZ33291EGIC PWR SWITCH N-CHAN 1:8 24SOIC |
0 |
|
Технический лист |
24-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 9V ~ 26.5V | 4.5V ~ 5.5V | 500mA | 550mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
|
MCZ33291LEGIC PWR SWITCH N-CHAN 1:8 24SOIC |
0 |
|
Технический лист |
24-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 9V ~ 26.5V | 4.5V ~ 5.5V | 500mA | 1.1Ohm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
BTS117E3044ANTMA1IC PWR SWITCH N-CHAN 1:1 TO220-3 |
0 |
|
Технический лист |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 3.5A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO220-3-5 |
|
BTS133E3064NKSA1IC PWR SWITCH N-CHAN 1:1 TO220-3 |
0 |
|
Технический лист |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | HITFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 7A | 40mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO220-3-5 |
|
BTS141E3064NKSA1IC PWR SWITCH N-CHAN 1:1 TO220-3 |
0 |
|
Технический лист |
TO-220-3 | HITFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 12A | 25mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
