Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U6032B-MFPYIC PWR SWITCH BIPOLAR 1:1 8SO |
0 |
|
Технический лист |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | Bipolar | On/Off | 6V ~ 24V | - | 300mA | - | - | - | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SO |
|
U6032B-MYIC PWR SWITCH BIPOLAR 1:1 8DIP |
0 |
|
Технический лист |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | Bipolar | On/Off | 6V ~ 24V | - | 300mA | - | - | - | - | -40°C ~ 125°C (TA) | - | - | Through Hole | 8-PDIP |
|
U6815BM-NFLG3YIC PWR DRIVER N/P-CHAN 0.05 28SO |
0 |
|
Технический лист |
28-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 12 | 1:12 | High Side or Low Side | N/P-Channel | SPI | 40V (Max) | 4.5V ~ 5.5V | 600mA | 2Ohm (Max), 1.5Ohm (Max) | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SO |
|
MIC2006-0.5YM6-TRIC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Технический лист |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 500mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
MIC2006-0.5YML-TRIC PWR SWITCH P-CHAN 1:1 6MLF |
0 |
|
Технический лист |
6-VDFN Exposed Pad, 6-MLF® | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 500mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC2006-0.8YM6-TRIC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Технический лист |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 800mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
MIC2006-0.8YML-TRIC PWR SWITCH P-CHAN 1:1 6MLF |
0 |
|
Технический лист |
6-VDFN Exposed Pad, 6-MLF® | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 800mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC2006-1.2YM6-TRIC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Технический лист |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.2A | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
MIC2006-1.2YML-TRIC PWR SWITCH P-CHAN 1:1 6MLF |
0 |
|
Технический лист |
6-VDFN Exposed Pad, 6-MLF® | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.2A | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC2016-0.5YM6-TRIC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Технический лист |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 500mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
MIC2016-0.8YM6-TRIC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Технический лист |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 800mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
MIC2016-0.8YML-TRIC PWR SWITCH P-CHAN 1:1 6MLF |
0 |
|
Технический лист |
6-VDFN Exposed Pad, 6-MLF® | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 800mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MIC2026-1BNIC PWR SWITCH N-CHANNEL 1:2 8DIP |
0 |
|
- |
8-DIP (0.300", 7.62mm) | - | Bulk | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.25A | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
MIC2026-2BNIC PWR SWITCH N-CHANNEL 1:2 8DIP |
0 |
|
- |
8-DIP (0.300", 7.62mm) | - | Bulk | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.25A | 90mOhm | Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
MIC2027-2BMIC PWR SWITCH N-CH 2X1:2 16SOIC |
0 |
|
Технический лист |
16-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | USB Switch | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MIC2027-2BM-TRIC PWR SWITCH N-CH 2X1:2 16SOIC |
0 |
|
Технический лист |
16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MIC2027-2BWMIC PWR SWITCH N-CH 2X1:2 16SOIC |
0 |
|
Технический лист |
16-SOIC (0.295", 7.50mm Width) | - | Bulk | Obsolete | USB Switch | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|

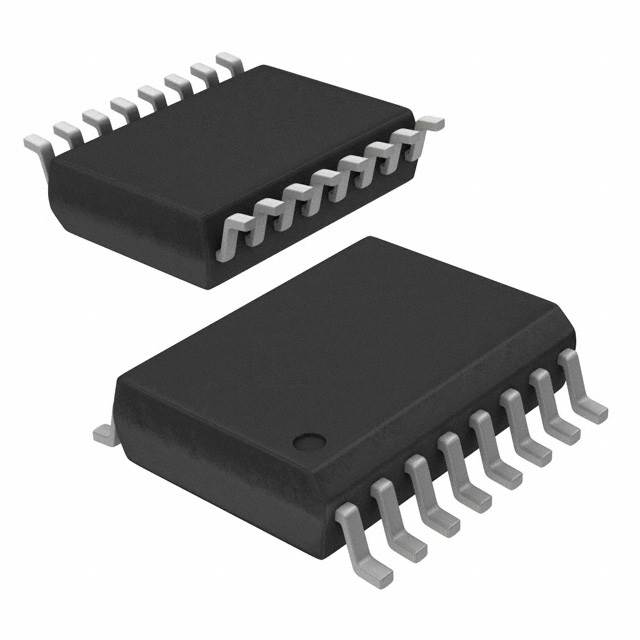

MIC2027-2BWM TRIC PWR SWITCH N-CH 2X1:2 16SOIC |
0 |
|
Технический лист |
16-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MIC2040-1BMMIC PWR SWITCH N-CHAN 1:1 10MSOP |
0 |
|
Технический лист |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Bulk | Discontinued | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | 1.6V ~ 5.5V | 1.5A | 50mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
MIC2076-1BNIC PWR SWITCH N-CHANNEL 1:2 8DIP |
0 |
|
- |
8-DIP (0.300", 7.62mm) | - | Bulk | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.25A | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
