Выключатели распределения питания, нагрузка Драйверы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Серия | Упаковка | Состояние продукта | Тип переключателя | Количество выходов | Соотношение - Вход:Выход | Конфигурация выхода | Тип выхода | Интерфейс | Напряжение - нагрузка | Напряжение - Питание (Vcc/Vdd) | Ток - выход (макс.) | Rds On (тип.) | Тип входа | Особенности | Защита от сбоев | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK128-50DL,118IC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Технический лист |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 8A | 68mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
BUK130-50DL,118IC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Технический лист |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 20A | 22mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
BUK138-50DL,118IC PWR DRIVER N-CHANNEL 1:1 DPAK |
0 |
|
Технический лист |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 8A | 68mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
BUK139-50DL,118IC PWR DRIVER N-CHANNEL 1:1 DPAK |
0 |
|
Технический лист |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 16A | 36mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | DPAK |
_SOT226 Pkg.jpg)
|
BUK148-50DL,127IC PWR DRIVER N-CHAN 1:1 I2PAK |
0 |
|
Технический лист |
TO-262-3 Long Leads, I2PAK, TO-262AA | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 8A | 68mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Through Hole | I2PAK |
|
|
BUK149-50DL,127IC PWR DRIVER N-CHAN 1:1 I2PAK |
0 |
|
Технический лист |
TO-262-3 Long Leads, I2PAK, TO-262AA | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 16A | 36mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Through Hole | I2PAK |
.jpg)
|
BUK208-50Y,127IC PWR DRVR N-CH 1:1 SOT263B-01 |
0 |
|
Технический лист |
TO-220-5 Formed Leads | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 8.5A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Through Hole | SOT263B-01 |
|
|
BUK210-50Y,127IC PWR DRVR N-CH 1:1 SOT263B-01 |
0 |
|
Технический лист |
TO-220-5 Formed Leads | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 9A | 28mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Through Hole | SOT263B-01 |
|
BUK217-50Y,118IC PWR DRIVER N-CHAN 1:1 SOT426 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 25A | 10mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
BUK219-50Y,127IC PWR DRVR N-CH 1:1 SOT263B-01 |
0 |
|
Технический лист |
TO-220-5 Formed Leads | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 2A | 135mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 150°C (TJ) | - | - | Through Hole | SOT263B-01 |
|
BUK221-50DY,118IC PWR DRIVER N-CHAN 1:1 D2PAK-7 |
0 |
|
Технический лист |
TO-263-7, D2PAK (6 Leads + Tab) | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 4A | 73mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK-7 |
|
|
BUK224-50Y,118IC PWR DRIVER N-CHAN 1:1 SOT426 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 12A | 22mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
PIP3102-R,118IC PWR DRIVER N-CHAN 1:1 SOT426 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 30A | 21mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
PIP3213-R,118IC PWR DRIVER N-CHAN 1:1 SOT426 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 18A | 15mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
BUK100-50GL,127IC PWR DRIVER N-CHAN 1:1 TO220AB |
0 |
|
Технический лист |
TO-220-3 | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 13.5A | 85mOhm | Non-Inverting | - | Over Temperature, Over Voltage | 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BUK101-50GL,127IC PWR TOPFET LOGIC LVL TO220AB |
0 |
|
- |
TO-220-3 | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 26A | 45mOhm | Non-Inverting | - | Over Temperature, Over Voltage | 150°C (TJ) | - | - | Through Hole | TO-220AB |
|

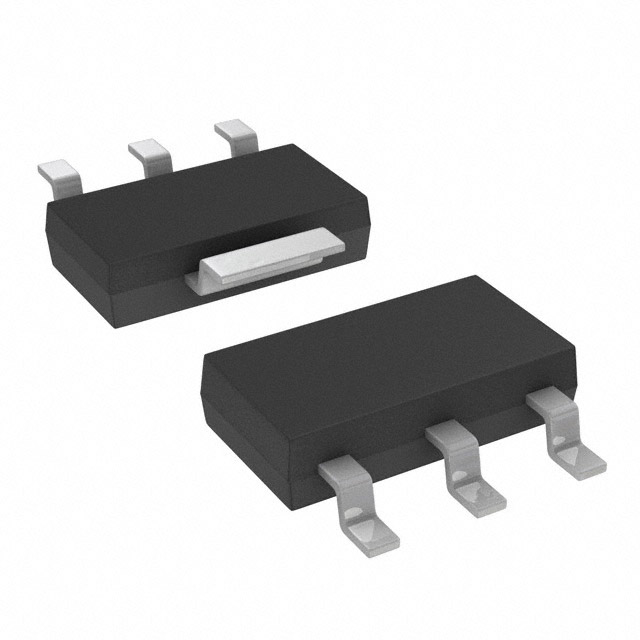

BUK107-50DL,115IC PWR DRIVER N-CHAN 1:1 SOT223 |
0 |
|
Технический лист |
TO-261-4, TO-261AA | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 700mA | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | SC-73 |
|
|
BUK116-50L,118IC PWR DRIVER N-CHAN 1:1 SOT426 |
0 |
|
Технический лист |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | TOPFET™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | 5V | 50A | 22mOhm | Non-Inverting | Status Flag | Over Temperature, Over Voltage | 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
BUK124-50L,127IC PWR DRVR N-CH 1:1 SOT263B-01 |
0 |
|
Технический лист |
TO-220-5 Formed Leads | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | 5V | 30A | 21mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 150°C (TJ) | - | - | Through Hole | SOT263B-01 |
|
|
BUK125-50L,127IC PWR DRVR N-CH 1:1 SOT263B-01 |
0 |
|
Технический лист |
TO-220-5 Formed Leads | TOPFET™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | 5V | 40A | 15mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 150°C (TJ) | - | - | Through Hole | SOT263B-01 |
