Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CL-1-2005-9910-ILED INDICATOR, IP67 SEALED AND V |
15 |
|
Технический лист |
CL | Bulk | Active | LED | Green, Red | - | - | DC | 24V Green, 24V Red | 20mA | Round | 0.551" (14.00mm) | - | Round with Domed Top | 130mcd Green, 750mcd Red | 574nm Green, 645nm Red | 50° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
657-1485-303FPMI, FLAT, RGB, 10-30VDC |
29 |
|
Технический лист |
657 | Bag | Active | LED | Red, Green, Blue (RGB) | White | Diffused | DC | 10V ~ 30V | 20mA | Round | 0.69" (17.46mm) | 16.50mm Dia | Round with Flat Top | 270mcd Red, 515mcd Green, 90mcd Blue | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
657-1495-303FPMI, FLAT, GRY, 10-30VDC |
30 |
|
Технический лист |
657 | Bag | Active | LED | Green, Red, Yellow | White | Diffused | DC | 10V ~ 30V | 20mA | Round | 0.69" (17.46mm) | 16.50mm Dia | Round with Flat Top | 515mcd Green, 270mcd Red, 310mcd Yellow | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
|
CL-1-2005-9908-ILED INDICATOR, IP67 SEALED AND V |
47 |
|
Технический лист |
CL | Bulk | Active | LED | Green, Red | - | - | DC | 12V Green, 12V Red | 20mA | Round | 0.551" (14.00mm) | - | Round with Domed Top | 130mcd Green, 750mcd Red | 574nm Green, 645nm Red | 50° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
Q8F5BXXHR02EINDICATOR 8MM PM FLUSH RED POTTE |
38 |
|
Технический лист |
Q8 | Tray | Active | LED | Red | Red | Diffused | - | 2V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Flat Top | 980mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F3BXXHG110ELED PMI FLUSH 110VAC GREEN |
33 |
|
Технический лист |
Q8 | Bag | Active | LED | Green | Green | Diffused | AC | 110V | 6mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 300mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8P5BXXHR02EINDICATOR 8MM PM PROMINENT RED P |
64 |
|
Технический лист |
Q8 | Tray | Active | LED | Red | Red | Diffused | - | 2V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 6000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F5BXXHR12EINDICATOR 8MM PM FLUSH RED POTTE |
23 |
|
Технический лист |
Q8 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Flat Top | 980mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F5CXXHR12ELED INDICATOR 14MM FLUSHCHROME H |
57 |
|
Технический лист |
Q14 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.55" (14.00mm) | 16.00mm Dia | Round with Flat Top | 800mcd | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q8F5BXXHG02EINDICATOR 8MM PM FLUSH GREEN POT |
79 |
|
Технический лист |
Q8 | Tray | Active | LED | Green | Green | Diffused | - | 2V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Flat Top | 300mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
2PLB3LB-110LED PANEL IND GREEN 110V IP65 |
15 |
|
Технический лист |
- | Bulk | Active | LED | Green | - | - | AC | 110V | 15mA | - | - | 28.00mm Dia | Round with Flat Top | - | - | - | Screw Terminal | IP65 | - |
|
Q8P5CXXHG02EINDICATOR 8MM PM PROMINENT GREEN |
32 |
|
Технический лист |
Q8 | Tray | Active | LED | Green | Green | Diffused | - | 2V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Domed Top | 1900mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F5BXXHG12EINDICATOR 8MM PM FLUSH GREEN POT |
25 |
|
Технический лист |
Q8 | Tray | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.315" (8.00mm) | 5.00mm Dia | Round with Flat Top | 300mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
DX0505/GN/12LED PANEL INDICATOR GREEN 12V |
82 |
|
Технический лист |
DX0505 | Bulk | Active | LED | Green | - | - | DC | 12V | 25mA | Round | 0.48" (12.10mm) | - | Round with Flat Top | 100mcd | - | - | Solder Lug | IP67 | - |
|
M165-JG-24DLED PANEL INDICATOR GRN 24V |
7 |
|
Технический лист |
M16 | Bulk | Active | LED | Green | Green | Diffused | AC/DC | 24V | 8mA | Round | 0.63" (16.00mm) | 21.00mm x 15.10mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | IP66 | Oil Resistant |
|
Q12-7F5BXXHG12ELED INDICATOR 12.7MM FLUSH BLACK |
50 |
|
Технический лист |
Q12-7 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.50" (12.70mm) | 8.00mm Dia | Round with Flat Top | - | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14F5CXXHG12ELED INDICATOR 14MM FLUSH CHROME |
86 |
|
Технический лист |
Q14 | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.55" (14.00mm) | 16.00mm Dia | Round with Flat Top | 250mcd | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q14F5CXXHG24ELED INDICATOR 14MM FLUSH CHROME |
37 |
|
Технический лист |
Q14 | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.55" (14.00mm) | 16.00mm Dia | Round with Flat Top | 250mcd | - | - | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

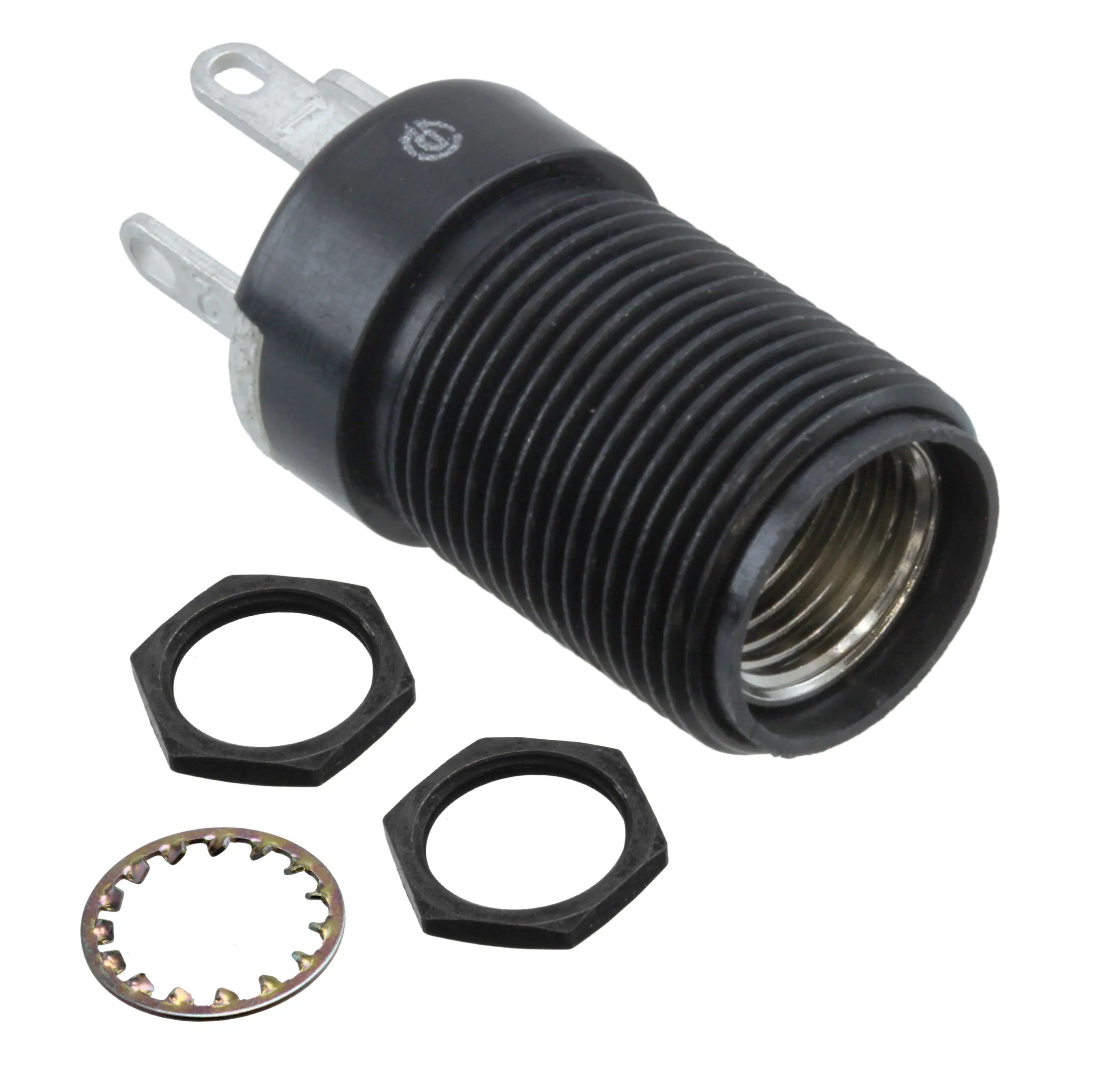

800103003504T-1 3/4 MIDGET FLANGE BASE |
20 |
|
Технический лист |
800 | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Q8P5ANXXCG02ELED INDICATOR Q8HC |
32 |
|
Технический лист |
Q8 | Tray | Active | LED | Green | White | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.315" (8.00mm) | 5mm, T-1 3/4 | Round with Domed Top | 100mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
