Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q6P3BXXG24ELED PM INDICATOR PROMINENT GRN |
81 |
|
Технический лист |
Q6 | Bag | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6F3CXXR12ELED PANEL MOUNT INDICATOR RED |
77 |
|
Технический лист |
Q6 | Bag | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 10mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q6F3BXXR24ELED PM INDICATOR FLUSH RED |
70 |
|
Технический лист |
Q6 | Bag | Active | LED | Red | Red | Diffused | DC | 24V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 10mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q8F3CXXG24ELED PM INDICATOR FLUSH GREEN |
9 |
|
Технический лист |
Q8 | Bag | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.31" (7.87mm) | 5mm, T-1 3/4 | Round with Flat Top | 8mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
CCLB-1-3047-9920-ISEALED LED INDICATOR SUPER ULTRA |
91 |
|
Технический лист |
CCLB | Bulk | Active | LED | Green | - | - | AC | 120V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 5490mcd | 520nm | 20° | Wire Leads - 6" (152.40mm) | IP67 | - |
|
CNX714C400FVWIND TUFFLED FLEXVOLT 14MM YELLOW |
89 |
|
Технический лист |
CNX 714FV | Bulk | Active | LED | Yellow | - | - | - | 5V ~ 28V | - | Round | 0.55" (13.97mm) | 17.00mm Dia | Round with Domed Top | 140mcd | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 6P | - |
|

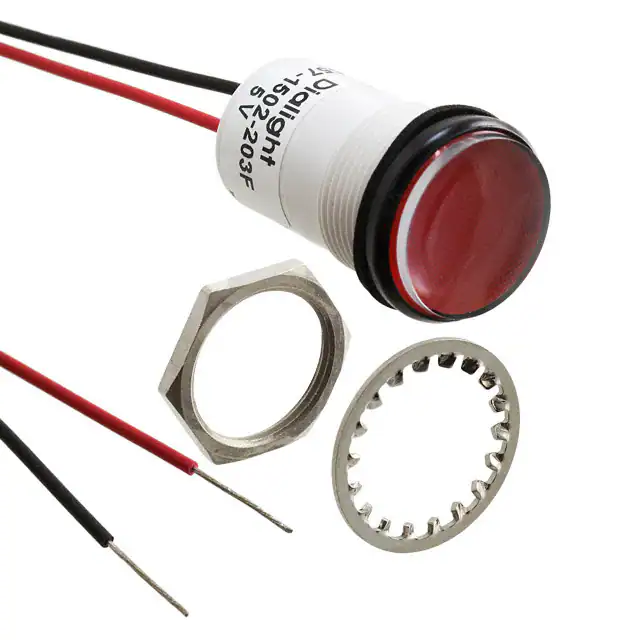

5571502203FLED PNL MT 11/16" 5V WT RED |
31 |
|
Технический лист |
557 | Bulk | Active | LED | Red | - | - | DC | 5V | 80mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|

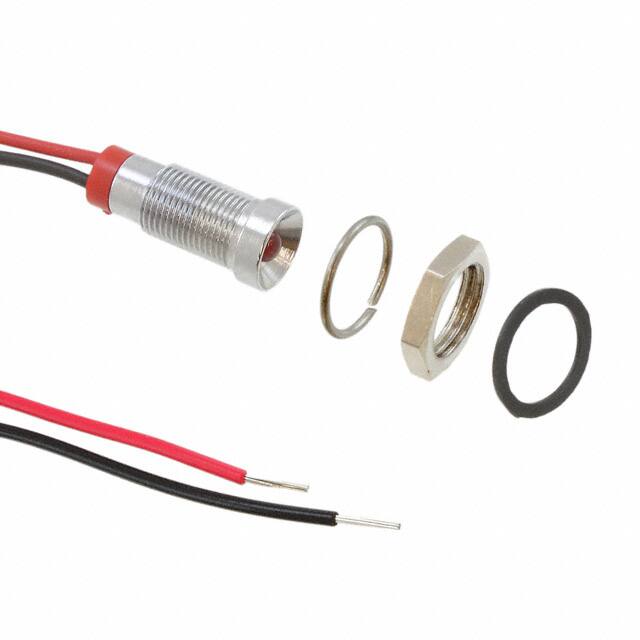

Q6R7CXXR02ELED PM INDICATOR RECESSED RED |
48 |
|
Технический лист |
Q6 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 40mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
PV6F2PXSS-3R1LED PANEL INDICATOR RGB |
13 |
|
Технический лист |
PV6, LAMB | Bulk | Active | LED | Red, Green, Blue (RGB) | - | - | DC | 1.8V Red, 2.8V Green, 2.8V Blue | 20mA Red, 20mA Green, 20mA Blue | Round | 0.63" (16.00mm) | 11.80mm Dia | Round with Flat Top | - | - | - | Solder Lug | IP65 | - |
|
PL-20-RC000PILOT LIGHT |
83 |
|
Технический лист |
PL-20 | Bulk | Active | Incandescent | Red | Red | - | DC | 12V | - | Round | - | 13.50mm Dia | Round with Domed Top | - | - | - | Wire Leads - 8" (203.20mm) | - | - |
|
6572502103FLED 17.46MM RED DIFF PANEL MOUNT |
49 |
|
Технический лист |
657 | Bulk | Active | LED | Red | Red | Diffused | DC | 5V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Domed Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
6571502303FLED 17.46MM RED DIFF PANEL MOUNT |
48 |
|
Технический лист |
657 | Bulk | Active | LED | Red | White | Diffused | DC | 5V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
|
6571504303FLED 17.46MM RED DIFF PANEL MOUNT |
82 |
|
Технический лист |
657 | Bulk | Active | LED | Red | White | Diffused | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
Q6F3BYYRG12ELED PM IND FLUSH GRN/RD |
76 |
|
Технический лист |
Q6 | Bag | Active | LED | Green, Red | - | Diffused | DC | 12V Green, 12V Red | 20mA Green, 20mA Red | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Flat Top | 8mcd Green, 10mcd Red | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
6571502103FLED 17.46MM RED DIFF PANEL MOUNT |
55 |
|
Технический лист |
657 | Bulk | Active | LED | Red | Red | Diffused | DC | 5V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
5571602203FLED PNL MT 11/16" 5V WT GREEN |
59 |
|
Технический лист |
557 | Bulk | Active | LED | Green | - | - | DC | 5V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|

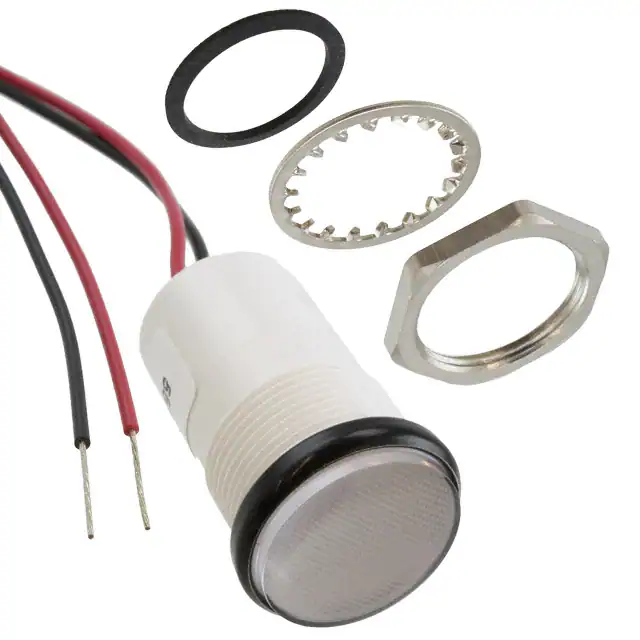

5571805203FLED PNL MT 11/16" 24V WT BLUE |
27 |
|
Технический лист |
557 | Bulk | Active | LED | Blue | - | - | DC | 24V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
Q14F3CXXG24ELED PM INDICATOR FLUSH GREEN |
96 |
|
Технический лист |
Q14 | Bag | Active | LED | Green | Green | Diffused | DC | 24V | 20mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Flat Top | 5mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
Q14P1CXXR110EINDICATOR 110V 14MM PROM RED |
44 |
|
Технический лист |
Q14 | Bulk | Active | LED | Red | Red | Diffused | AC | 110V | 6mA | Round | 0.55" (13.97mm) | 10.00mm Dia | Round with Domed Top | 100mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
656130A304F1/2" FLT YLW 48VDC W/TERMS |
53 |
|
Технический лист |
656 | Bag | Active | LED | Yellow | - | - | DC | 48V | 10mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 190mcd | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
