Индикаторы панели, контрольные лампы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет лампы | Цвет линзы | Прозрачность линзы | Номинальные значения | Напряжение | Ток | Форма выреза панели | Размеры выреза панели | Размер линзы | Тип линзы | Оценка Милликанделы | Длина волны - пиковая | Угол обзора | Тип вывода | Защита от проникновения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SU11036AA401AA0INDICATOR LIGHT, LED GREEN, 110V |
4 |
|
Технический лист |
3SU1 | Box | Active | LED | Green | Green | Diffused | AC | 110V | - | Round | 0.88" (22.30mm) | 22.00mm Dia | Round with Flat Top | 1350mcd | - | - | Screw Terminal | IP66, IP67, IP69, IP69K, NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 | - |
|
S22L2SRGB7QS22 PRO EZ LIGHT INDICATOR MULTI |
11 |
|
Технический лист |
- | Box | Active | LED | Blue, Cyan, Green, Magenta, Red, White - Cool, Yellow | - | Diffused | DC | 10V ~ 30V | 70mA | Round | 0.866" (22.00mm) | - | Round with Flat Top | 0.3mcd Blue, 2mcd Cyan, 1.9mcd Green, 1.2mcd Magenta, 0.8mcd Red, 2.5mcd White - Cool, 2.5mcd Yellow | - | - | Quick Connect | IP66, IP67, IP69K | - |
|
3SU11026AA401AA0INDICATOR LIGHT, LED GREEN 24V A |
4 |
|
Технический лист |
3SU1 | Bulk | Active | LED | Green | Green | - | AC/DC | 24V | - | Round | 0.88" (22.30mm) | 29.50mm Dia | Round with Flat Top | 1350mcd | - | - | Screw Terminal | IP66, IP67, IP69K, NEMA 4X, 13 | - |
|
S22L2SRGB7QPS22 PRO SERIES: 7-COLOR RGB INDI |
3 |
|
Технический лист |
S22 | Bag | Active | LED | Blue, Cyan, Green, Magenta, Red, White - Cool, Yellow | - | Diffused | DC | 10V ~ 30V | 70mA | Round | 0.87" (22.00mm) | - | Round with Flat Top | 0.3mcd Blue, 2mcd Cyan, 1.9mcd Green, 1.2mcd Magenta, 0.8mcd Red, 2.5mcd White - Cool, 2.5mcd Yellow | - | - | Wire Leads - 6" (152.40mm) | IP66, IP67, IP69K | - |
|
S22L2FRGB14QPS22 PRO EZ LIGHT INDICATOR MULTI |
9 |
|
Технический лист |
- | Box | Active | LED | Amber, Blue, Cyan, Green, Lime Green, Magenta, Rose, Sky Blue, Spring Green, Orange, Red, Violet | - | Diffused | DC | 10V ~ 30V | 70mA | Round | 0.866" (22.00mm) | - | Round with Flat Top | 1.8mcd Amber, 0.3mcd Blue, 2mcd Cyan, 1.9mcd Green, 2.2mcd Lime Green, 1.2mcd Magenta, 0.9mcd Rose | - | - | Wire Leads - 6" (152.40mm) | IP66, IP67, IP69K | - |
|

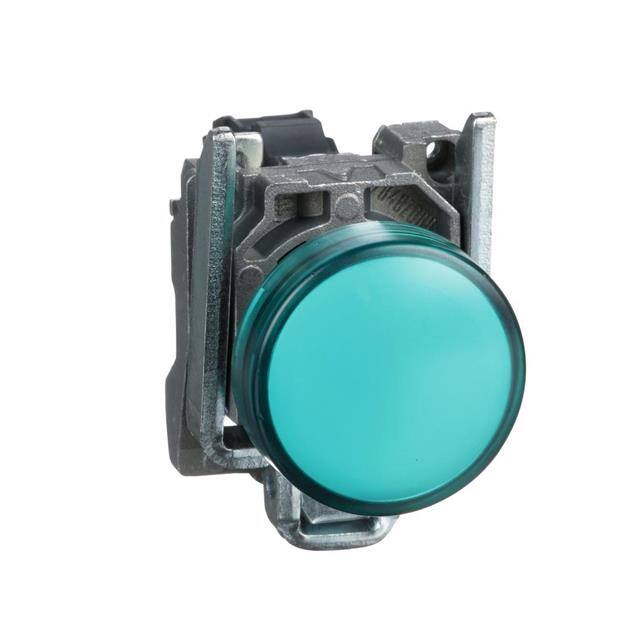

XB4BVG3HARMONY, 22MM PILOT LIGHT, GREEN |
10 |
|
Технический лист |
Harmony XB4 | Box | Active | LED | - | Green | - | AC | 110V ~ 120V | 14mA | Round | 0.87" (22.00mm) | 30.00mm Dia | Round with Convex Top | - | - | - | Screw Terminal | IP66, IP67, IP69, IP69K, NEMA 4X, 13 | - |
|
M18GRXPQEZ-LIGHT INDICATOR GRN/RED |
7 |
|
Технический лист |
- | Box | Active | LED | Green, Red | - | Diffused | DC | 10V ~ 30V | 25mA | Round | 0.709" (18.00mm) | - | Round with Flat Top | - | - | - | Quick Connect | IP67 | - |
|
M18WXXPQM18 SERIES EZ-LIGHT: 1-COLOR GEN |
3 |
|
Технический лист |
- | Box | Active | LED | White | - | - | DC | 10V ~ 30V | 25mA | Round | 0.71" (18.00mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Quick Connect | IP67 | - |
|
QRMNV85ANXXNVRD12EREAR MOUNT NVISRED 12VDC IP67 |
13 |
|
Технический лист |
QRM-NV | Bulk | Active | LED | Red | - | - | DC | 12V | 20mA | Round | 0.31" (8.00mm) | 6.75mm Dia | Round with Flat Top | 110mcd | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
PM5HDPNL MNT W/ WIRE 625NM 25MCD RED |
99 |
|
Технический лист |
PM5 | Bag | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 625nm | 45° | - | - | - |
|
PM5BWDLED ASSY PNL 5MM BLUE DIFF 430NM |
33 |
|
Технический лист |
PM5 | Tray | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 15mcd | 430nm | 45° | PC Pin | - | - |
|
PM3BWDLED ASSY PNL 3MM BLUE DIFF 430NM |
100 |
|
Технический лист |
PM3 | Bag | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 430nm | 40° | PC Pin | - | - |
|
5580101027FLED PMI .158" RED PVC FREE |
83 |
|
Технический лист |
558 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 650nm | - | Wire Leads - 14" (355.60mm) | - | - |
|
5590302023FLED PMI SNAP-IN YLW PVC FREE |
29 |
|
Технический лист |
559 | Bulk | Active | LED | Yellow | - | - | DC | 5V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 583nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
MPC3RDPNL MNT W/ WIRE 700NM 2MCD RED |
51 |
|
Технический лист |
MPC3 | Tray | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 700nm | 20° | - | - | - |
|
MPR3RDPNL MNT W/ WIRE 700NM 2MCD RED |
80 |
|
Технический лист |
MPR3 | Tray | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 700nm | 20° | - | - | - |
|
MPC5RDPNL MNT W/ WIRE 700NM 2MCD RED |
49 |
|
Технический лист |
MPC5 | Tray | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 45° | - | - | - |
|
5586003023FLED PMI SNAP-IN BLUE CLR 468NM |
92 |
|
Технический лист |
558 | Bulk | Active | LED | Blue | Colorless | Clear | Vf (Typ), If (Max) | 3.3V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 520mcd | 468nm | 45° | Wire Leads - 6" (152.40mm) | - | - |
|
5593001027FLED PMI SNAP-IN RED/GRN PVC FREE |
42 |
|
Технический лист |
559 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2.1V Green, 1.8V Red | 30mA Green, 40mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd Green, 90mcd Red | 565nm Green, 660nm Red | 60° | Wire Leads - 14" (355.60mm) | - | - |
|
5580701007FLED PANEL IND RED SNAP-IN |
38 |
|
Технический лист |
558 | Bulk | Active | LED | Red | Colorless | Clear | Vf (Typ), If (Max) | 1.8V | 40mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 170mcd | 660nm | - | Wire Leads - 14" (355.60mm) | - | - |
