Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXB3590-0000-000R0UBD50GLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 72V | 122 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UBD57GLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 72V | 122 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
CXA2590-0000-000R00AD40HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 69V | 112 lm/W | 1.8A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00AD50HLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 69V | 112 lm/W | 1.8A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00Z227HLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.2A | 85°C | 69V | 93 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00Z430HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 69V | 99 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00Z435HLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 69V | 99 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0HAB40HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 69V | 106 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0HAB50HLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 69V | 106 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YX430HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YX435HLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
CXA2590-0000-000R00AB35GLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 72V | 101 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00Z427GLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0HAD50GLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YY235GLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.2A | 85°C | 72V | 77 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
LN-RGBW-22-NC-35K-90LED MOD RGBW LNR LGT STRP 3500K |
0 |
|
- |
- | Box | Active | LED Module | Red, Green, Blue, White (RGBW) | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | - | - | 85°C | 26V | - | - | 90 | 120° | - | 558.80mm L x 20.07mm W | 3.56mm | - | Flat |
|
|
LZP-D0NW0R-0040LED MOD LZP WHT STARBOARD 4000K |
0 |
|
Технический лист |
LZP | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 4100lm (3500lm ~ 4600lm) | 4 x 700mA | 25°C | 18.9V | 85 lm/W | 1A | 82 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|

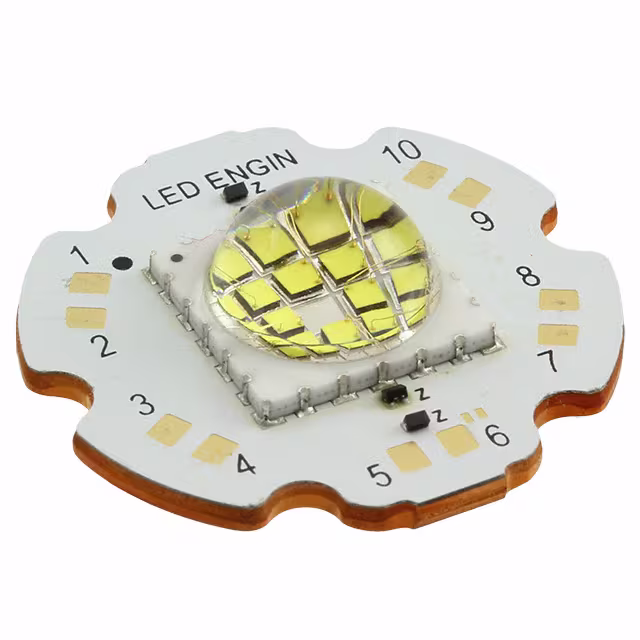

LZP-D0CW0R-0000LED MOD LZP WHT STARBOARD 6500K |
0 |
|
Технический лист |
LZP | Tray | Obsolete | LED Module | White, Cool | 5000K ~ 6500K | - | Starboard | 4400lm (3800lm ~ 5100lm) | 4 x 700mA | 25°C | 18.9V | 83 lm/W | 1A | 75 (Typ) | 110° | - | 28.30mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
LZP-D0WW0R-0030LED MOD LZP WM WH STARBRD 3000K |
0 |
|
Технический лист |
LZP | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.30mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
CVM-27-31-95-36-AA00-F2-2LED COB STUDIO WARM WHT SQ 3000K |
0 |
|
Технический лист |
Studio | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | - | 4.2A | - | 36V | - | 4.2A | 95 | 120° | - | 31.50mm L x 31.50mm W | 1.37mm | 26.50mm Dia | Flat |
