Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLU05Q-3618E1-302H5X3LED COB CLU05Q WARM WHT SQ 3000K |
0 |
|
Технический лист |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 23561lm (Typ) | 1.62A | 85°C | 101.4V | 134 lm/W | 4.14A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
LPH1-04C24-5070-00LED MOD XHP70.2 WH LNR STR 5000K |
0 |
|
Технический лист |
XHP70.2 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 7320lm (Typ) | 1.05A | 85°C | 44.8V | 156 lm/W | 2.4A | 70 | - | - | 170.18mm L x 32.99mm W | - | - | Domed |
|
|
LPH1-04C24-5080-00LED MOD XHP70.2 WH LNR STR 5000K |
0 |
|
Технический лист |
XHP70.2 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 7320lm (Typ) | 1.05A | 85°C | 44.8V | 156 lm/W | 2.4A | 80 | - | - | 170.18mm L x 32.99mm W | - | - | Domed |
|
|
AB-GES-F56124W27BFT1LED MOD AB-GES WH LNR STR 2700K |
0 |
|
Технический лист |
AB-GES | Bag | Active | LED Module | White, Warm | 2700K | - | Linear Light Strip, Plug and Play | 2550lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 569.00mm L x 41.60mm W | 18.70mm | - | Flat |
|
LE AB A2A-HMJB-1+DWFW-1LED MULTI CHIP ON BRD AMBER/BLUE |
0 |
|
- |
- | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | 29.50mm L x 15.00mm W | 6.40mm | - | - |
|

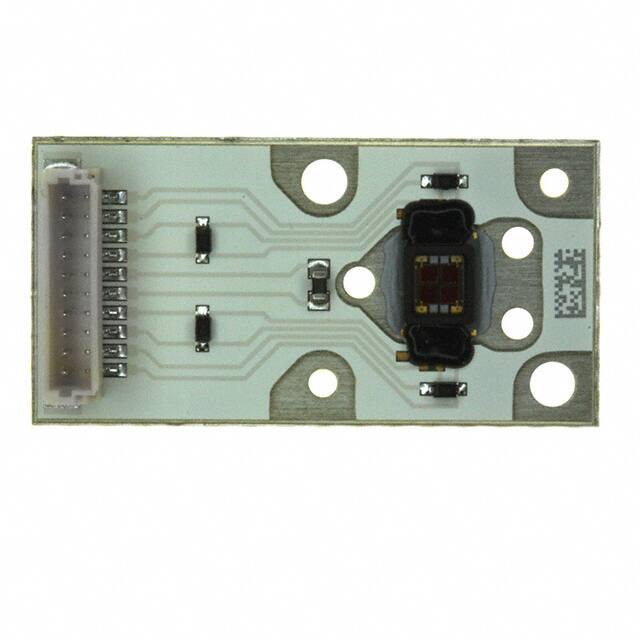

LE A A2A-HBKB-1LED MOD OSTAR AMBER RECT |
0 |
|
Технический лист |
Ostar | Tray | Obsolete | LED Module | Amber | - | 617nm | Rectangle | 210lm (120lm ~ 300lm) | 750mA | 25°C | 2.9V | 97 lm/W | 750mA | - | 120° | With Connector | 29.50mm L x 5.00mm W | 6.20mm | 2.03mm L x 4.20mm W | Flat |
|

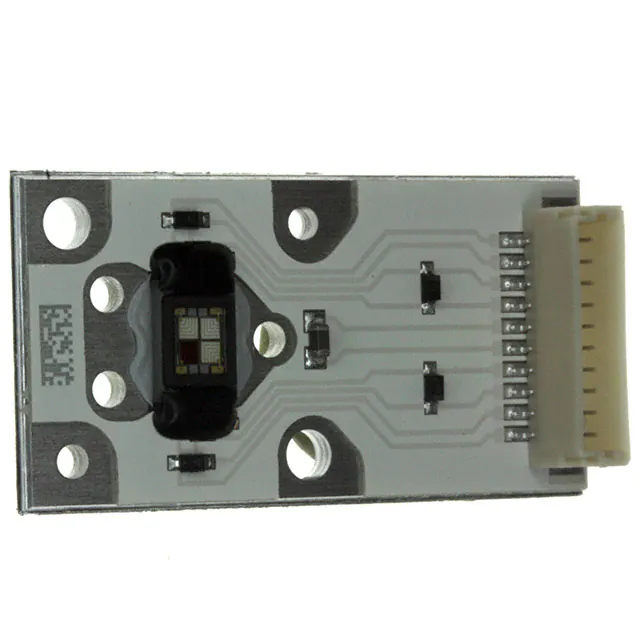

LE ATB A2ALED MOD OSTAR AMB/BLU/GRN RECT |
0 |
|
Технический лист |
Ostar | Tray | Obsolete | LED Module | Amber, Blue, Green | - | 617nm Amber, 464nm Blue, 525nm Green | Rectangle | 55lm (Typ) Amber, 11lm (Typ) Blue, 86lm (Typ) Green | 1A | 25°C | 2.9V Amber, 3.5V Blue, 3.5V Green | 25 lm/W Amber, 6 lm /W Blue, 49 lm/W Green | 750mA Amber, 700mA Blue, 700mA Green | - | 120° | With Connector | 29.50mm L x 15.00mm W | 6.05mm | 2.03mm L x 4.20mm W | Flat |
|
|
LE B A2A-EWJW-23LED OSTAR PROJ 4CHIP BLUE |
0 |
|
- |
Ostar | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

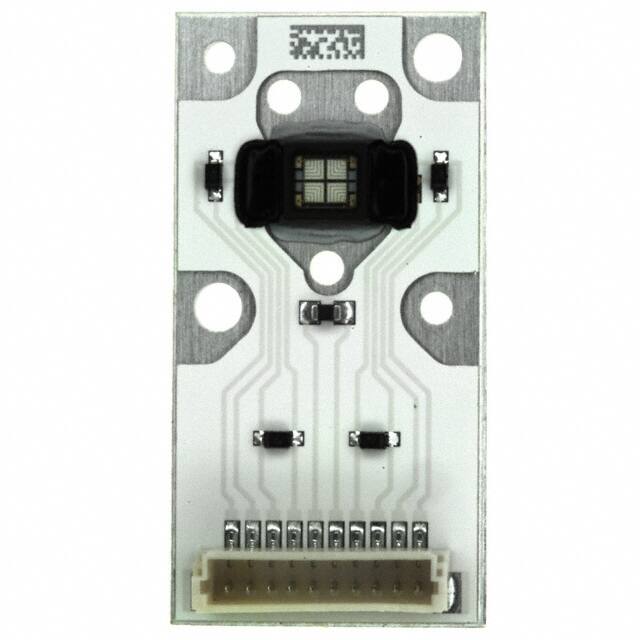

LE T A2A-JAKA-35LED OSTAR PROJ 525NM TRUE GREEN |
0 |
|
- |
- | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | 29.50mm L x 15.00mm W | 6.40mm | - | - |
|
AB-GES-L56124W304T2LED ENG AB-GES WH LNR STRP 3000K |
0 |
|
Технический лист |
AB-GES | Tray | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2400lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 560.00mm L x 24.00mm W | - | - | Flat |
|
PT-40-RAX-L55-MPKLED MOD PT-40 RED RECT |
0 |
|
Технический лист |
PT-40 | Tray | Not For New Designs | LED Module | Red | - | - | Rectangle | 875lm (925lm ~ 1125lm) | 9.8A | 40°C | 3.1V | 29 lm/W | - | - | - | With Connector | 21.85mm L x 15.00mm W | 3.70mm | 1.61mm L x 2.42mm W | Flat |
|
|
AB-GES-F56124W65BFT1LED MOD AB-GES WH LNR STR 6500K |
0 |
|
Технический лист |
AB-GES | Bag | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Plug and Play | 2550lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 569.00mm L x 41.60mm W | 18.70mm | - | Flat |
|
CXA2590-0000-000R0HAD0E5LED COB XLAMP NEUT WHT SQ 4000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 69V | 112 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0UX240FLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.2A | 85°C | 69V | 70 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0UX250FLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Технический лист |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.2A | 85°C | 69V | 70 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0UX40E3LED COB XLAMP COOL WHT SQ 5000K |
0 |
|
Технический лист |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0UX40E5LED COB XLAMP NEUT WHT SQ 4000K |
0 |
|
Технический лист |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YX427FLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0BB27HLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0BD30HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
