Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3590-0000-000RTYZ430HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTYZ435HLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
CXA2590-0000-000R00AB35FLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 69V | 106 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00BB40FLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 69V | 118 lm/W | 1.8A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00BB50FLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 69V | 118 lm/W | 1.8A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00BB57FLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 69V | 118 lm/W | 1.8A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00BB65FLED COB XLAMP COOL WHT SQU 6500K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 69V | 118 lm/W | 1.8A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R00Z427FLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 69V | 99 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0HAD57FLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 69V | 112 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0HAD65FLED COB XLAMP COOL WHT SQU 6500K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 69V | 112 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YY235FLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.2A | 85°C | 69V | 81 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
AB-GES-L56124W404T3LED ENG AB-GES WH LNR STRP 4000K |
0 |
|
Технический лист |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2100lm (Typ) | - | 25°C | 120VAC | - | - | 90 | - | - | 560.00mm L x 24.00mm W | - | - | Flat |
|
|
OPA740Y23LED MOD OPA740 YLW LIGHT STRIP |
0 |
|
Технический лист |
OPA740 | - | Obsolete | LED Module | Yellow | - | 587nm | Linear Light Strip | 297lm (Typ) | 700mA | 25°C | 12.5V | 34 lm/W | - | - | 23° | - | 317.50mm L x 55.88mm W | 15.62mm | - | Flat |
|

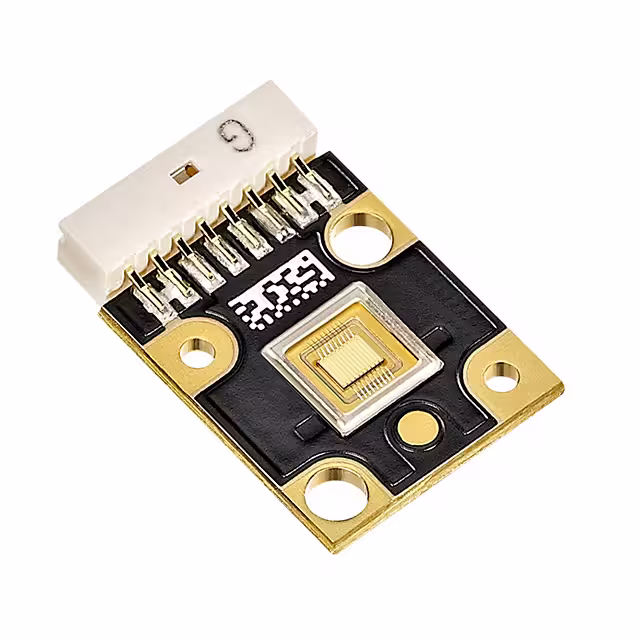

PT-40-G-L51-MPJLED MOD PT-40 GREEN RECT |
0 |
|
Технический лист |
PT-40 | Tray | Obsolete | LED Module | Green | - | 525nm | Rectangle | 1850lm (1550lm ~ 2150lm) | 9.8A | 40°C | 5.1V | 37 lm/W | - | - | - | With Connector | 21.85mm L x 15.00mm W | 3.70mm | 1.61mm L x 2.42mm W | Flat |
|
PT-54-RAX-L35-MPKLED MOD PT-54 RED RECT |
0 |
|
Технический лист |
PT-54 | Tray | Active | LED Module | Red | - | 613nm | Rectangle | 1323lm (1125lm ~ 1520lm) | 13.5A | 40°C | 3V | 33 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
OPA740W23LED MOD OPA740 WH LNR STR 6500K |
0 |
|
Технический лист |
OPA740 | - | Obsolete | LED Module | White, Cool | 6500K | - | Linear Light Strip | 408lm (Typ) | 700mA | 25°C | 18V | 32 lm/W | 700mA | - | 23° | With Connector | 317.50mm L x 55.88mm W | 15.62mm | - | Flat |
.jpg)
|
COM-12022LED RGB STRIP - BARE (5M) |
0 |
|
Технический лист |
- | - | Discontinued | - | Red, Green, Blue (RGB) | - | 640nm Red, 525nm Green, 470nm Blue | - | - | 20mA Red, 20mA Green, 20mA Blue | 25°C | 12V | - | - | - | 120° | - | - | - | - | Flat |
|
|
CXA3590-0000-000NTUZ465FLED COB XLAMP COOL WHT SQU 6500K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 2.4A | 85°C | 36V | 95 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTUZ465FLED COB XLAMP COOL WHT SQU 6500K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000R0UAB65FLED COB XLAMP COOL WHT SQU 6500K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 77V | 95 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
