Блокировочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Схема | Номинальный ток (Ампер) | Номинальное напряжение | Напряжение - Питание | Удерживающая сила | Тип привода | Тип вывода | Особенности | Должен работать | Должен Выпуск | Размер резьбы кабелепровода | Рабочая температура | Защита от проникновения | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1202570008INTERLOCK MAGNETIC DPST |
1 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 8mm | 18mm | - | -25°C ~ 80°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|
1202570011INTERLOCK MAGNETIC DPST |
1 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 18mm | - | -25°C ~ 80°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|
1202570010INTERLOCK MAGNETIC DPST |
1 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 8mm | 18mm | - | -25°C ~ 80°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|
6025100INTERLOCK NON-LOCKING DPST |
1 |
|
Технический лист |
i12S | Bulk | Active | Non-Locking | DPST-NC | 3A (AC), 2A (DC) | 240VAC, 24VDC | - | 612gf | Panel Disconnect | Screw Terminal | - | - | - | M16 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus |
|

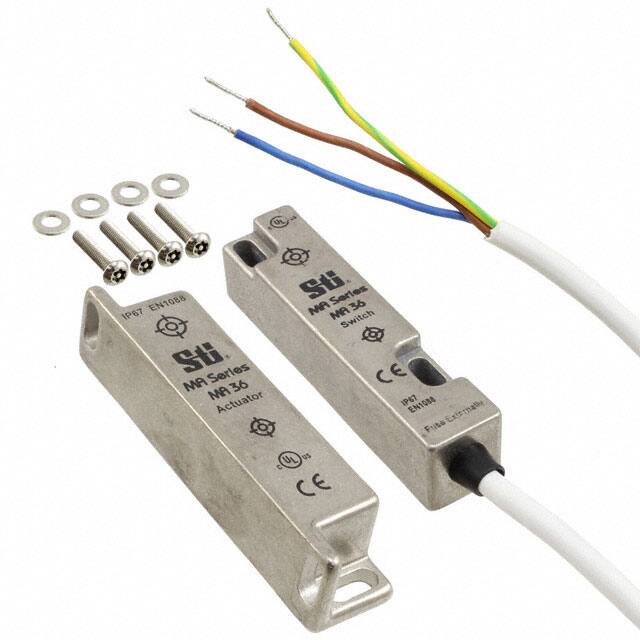

MA-36AS10C3INTERLOCK MAGNETIC SPST |
1 |
|
Технический лист |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
1058850INTERLOCK NON-LOCKING 3PST |
1 |
|
- |
i17S | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 3A (AC), 2A (DC) | 240VAC, 24VDC | - | 1kgf | Panel Disconnect | Connector (M12) | - | - | - | M20 x3 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus |
|
MFS-11P20C10INTERLOCK MAGNETIC DPST |
1 |
|
Технический лист |
MFS-STI | Bulk | Active | Magnetic | DPST-NC | 2A (AC/DC) | 230VAC, 30VDC | 24VDC | - | Non-Contact | Cable Leads | Status Indicator | 6 ~ 9mm | 10 ~ 12mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
MA-1APC8INTERLOCK MAGNETIC SPST |
1 |
|
Технический лист |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

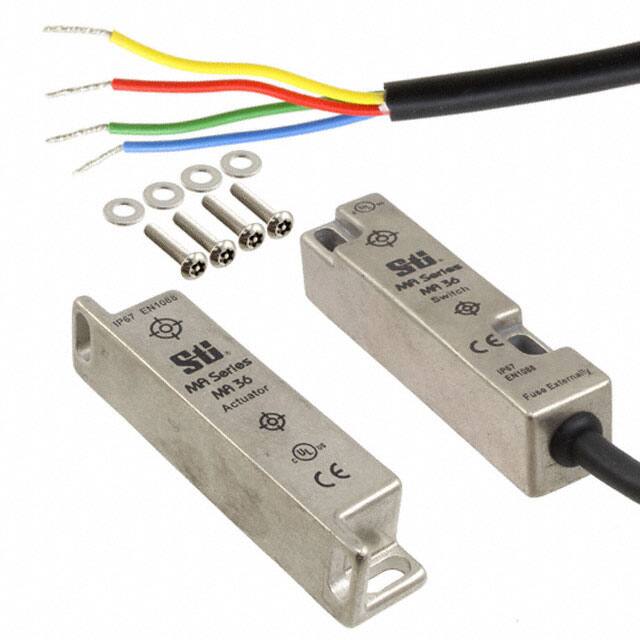

MA-36DS11C3INTERLOCK MAGNETIC DPST |
1 |
|
Технический лист |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 1A (DC) | 30VDC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

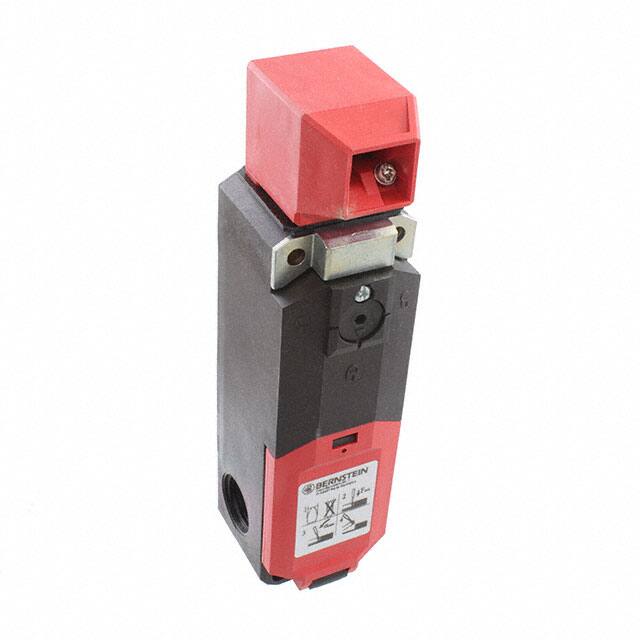

601.8119.045INTERLOCK SOLENOID RELEASE 4PST |
1 |
|
Технический лист |
SLK | Box | Active | Solenoid Release | 4PST-2NO/2NC | 2.5A (AC) | 230VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 x3 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|

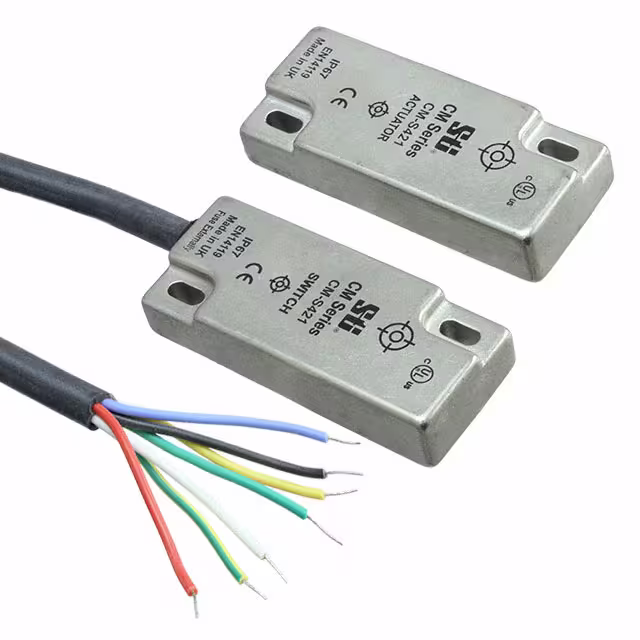

CM-S421SC5INTERLOCK MAGNETIC 3PST |
1 |
|
Технический лист |
CM-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 500mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 7mm | 10mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
SI-LS42DMMHINTERLOCK SOLENOID LOCKING DPST |
0 |
|
Технический лист |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

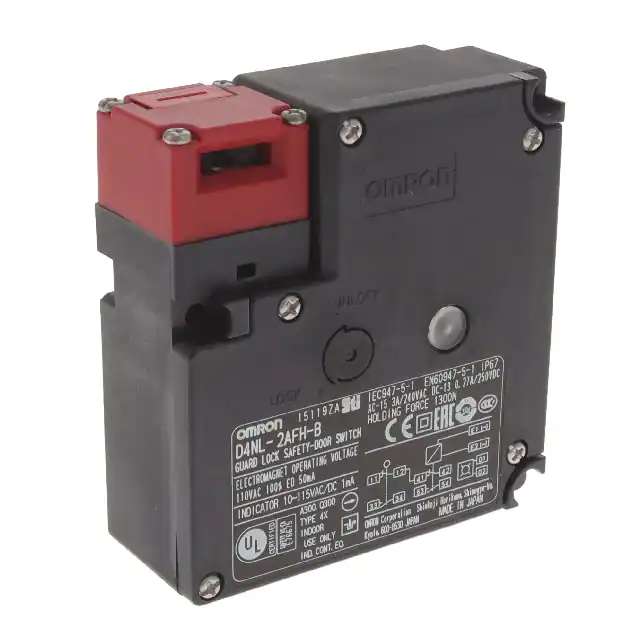

D4NL-2AFH-BINTERLOCK SOLENOID LOCKING DPST |
1 |
|
Технический лист |
D4NL | Bulk | Active | Solenoid Locking | DPST-NO/NC (DB/DM) x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 110VAC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
T4016-031SMINTERLOCK NON-LOCKING 3PST |
1 |
|
Технический лист |
T4016 | Bulk | Active | Non-Locking | 3PST-NC + SPST-NO | 4A (AC/DC) | 230VAC, 24VDC | - | 5kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT x3 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SI-LS42DMSHFINTERLOCK SOLENOID RELEASE DPST |
1 |
|
Технический лист |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
SI-LS42WMGINTERLOCK SOLENOID LOCKING DPST |
0 |
|
Технический лист |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 1A (AC) | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SI-LS42WMHINTERLOCK SOLENOID LOCKING DPST |
0 |
|
Технический лист |
SI-LS42 | Box | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
6026140INTERLOCK SOLENOID LOCKING 5PST |
1 |
|
Технический лист |
i200 Lock | Bulk | Active | Solenoid Locking | 5PST-3NC/2NO | 3A (AC/DC) | 240VAC, 24VDC | 20.4 ~ 26.4VDC | 265kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | CCC, CE, cULus |
|
SI-LS42DMMJFINTERLOCK SOLENOID LOCKING 3PST |
1 |
|
Технический лист |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-NC + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
SI-LS42WMMHINTERLOCK SOLENOID LOCKING DPST |
0 |
|
Технический лист |
SI-LS42 | Box | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
