Блокировочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Схема | Номинальный ток (Ампер) | Номинальное напряжение | Напряжение - Питание | Удерживающая сила | Тип привода | Тип вывода | Особенности | Должен работать | Должен Выпуск | Размер резьбы кабелепровода | Рабочая температура | Защита от проникновения | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL4019-31101SMINTERLOCK SOLENOID RELEASE 4PST |
1 |
|
Технический лист |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 110VAC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SI-LS42WMMHFINTERLOCK SOLENOID LOCKING DPST |
0 |
|
Технический лист |
SI-LS42 | Box | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL4019-11101SMINTERLOCK SOLENOID RELEASE 4PST |
1 |
|
Технический лист |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC | 4A (AC/DC) | 230VAC, 24VDC | 110VAC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL4019-30242F1MINTERLOCK SOLENOID RELEASE 4PST |
1 |
|
Технический лист |
TL4019 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

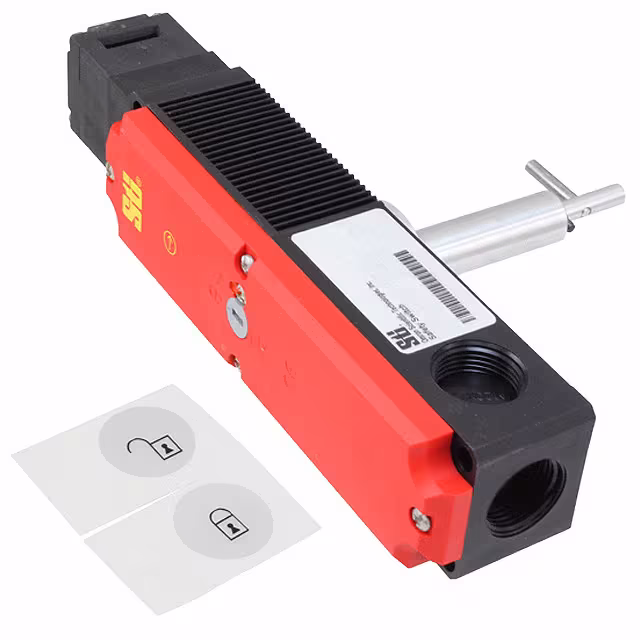

TL4019-30242RRINTERLOCK SOLENOID RELEASE 4PST |
1 |
|
Технический лист |
TL4019 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
TL4019-10241FIMINTERLOCK SOLENOID RELEASE 4PST |
1 |
|
Технический лист |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D40ML-M1-U-M12INTERLOCK RFID DPST |
1 |
|
Технический лист |
D40ML | Bulk | Active | RFID | DPST-NC | 200mA (DC) | 24VDC | 24VDC | 153kgf | Non-Contact | Cable with Connector (M12) | Status Indicator, Magnetic Latching | 1mm | 10mm | - | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

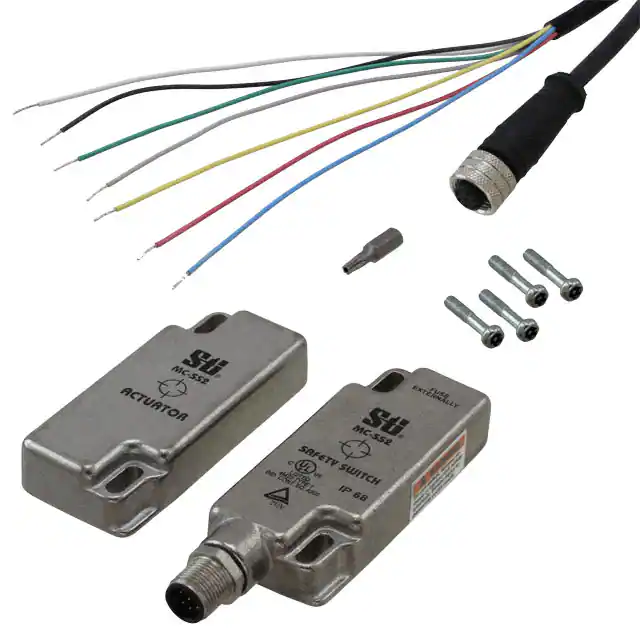

MC-SS2XOSCC5INTERLOCK MAGNETIC 4PST |
1 |
|
Технический лист |
MC-S-STI | Bulk | Active | Magnetic | 4PST-3NO/1NC | 100mA (AC/DC) | 230VAC, 24VDC | - | - | Non-Contact | Cable with Connector (M12) | - | 10mm | 13mm | - | -25°C ~ 125°C | IP68 - Dust Tight, Waterproof | CE, cULus |
|

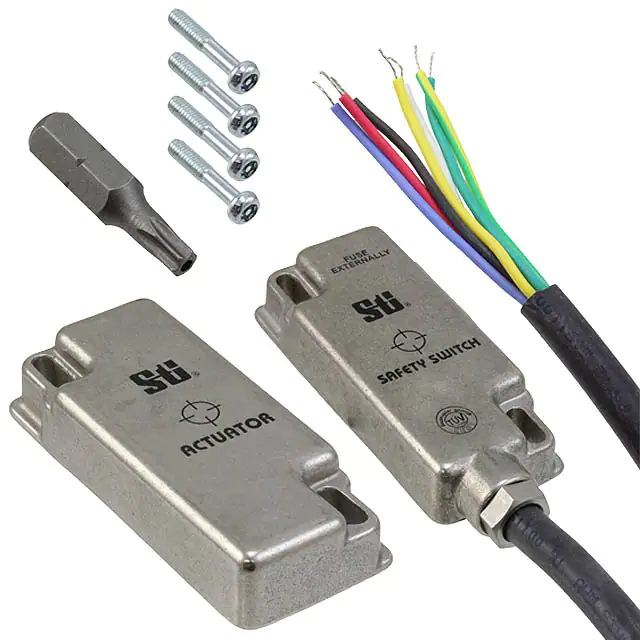

MC-SS2XOSC6INTERLOCK MAGNETIC 3PST |
1 |
|
Технический лист |
MC-S-STI | Bulk | Active | Magnetic | 3PST-2NO/1NC | 100mA (AC/DC) | 230VAC, 24VDC | - | - | Non-Contact | Cable with Connector (M12) | - | 10mm | 13mm | - | -25°C ~ 125°C | IP68 - Dust Tight, Waterproof | CE, cULus |
|

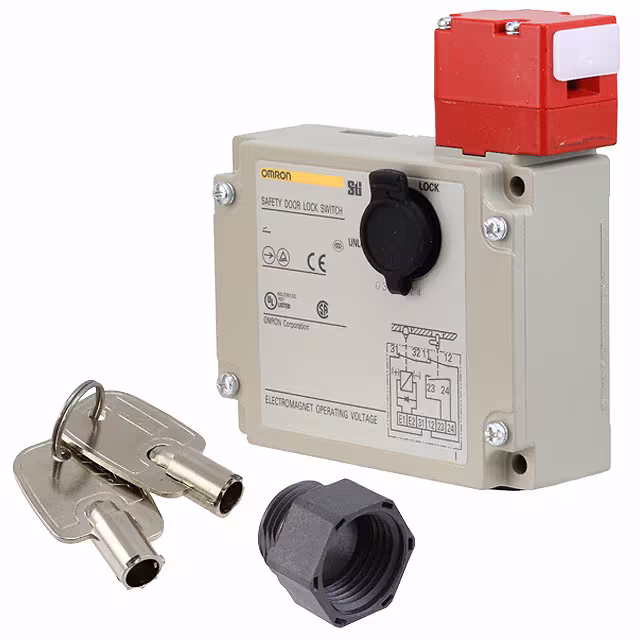

D4BL-4CRA-NPTINTERLOCK SOLENOID RELEASE DPST |
1 |
|
Технический лист |
D4BL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 3A (AC) | 250VAC | 24VDC | 71kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, CSA, UL |
|
D41L1YDGN2INTERLOCK RFID SOLENOID LOCKING |
1 |
|
Технический лист |
D41L | Box | Active | RFID, Solenoid Locking | - | 250mA (DC) | 24VDC | 24VDC | 117kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | 0°C ~ 60°C | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|

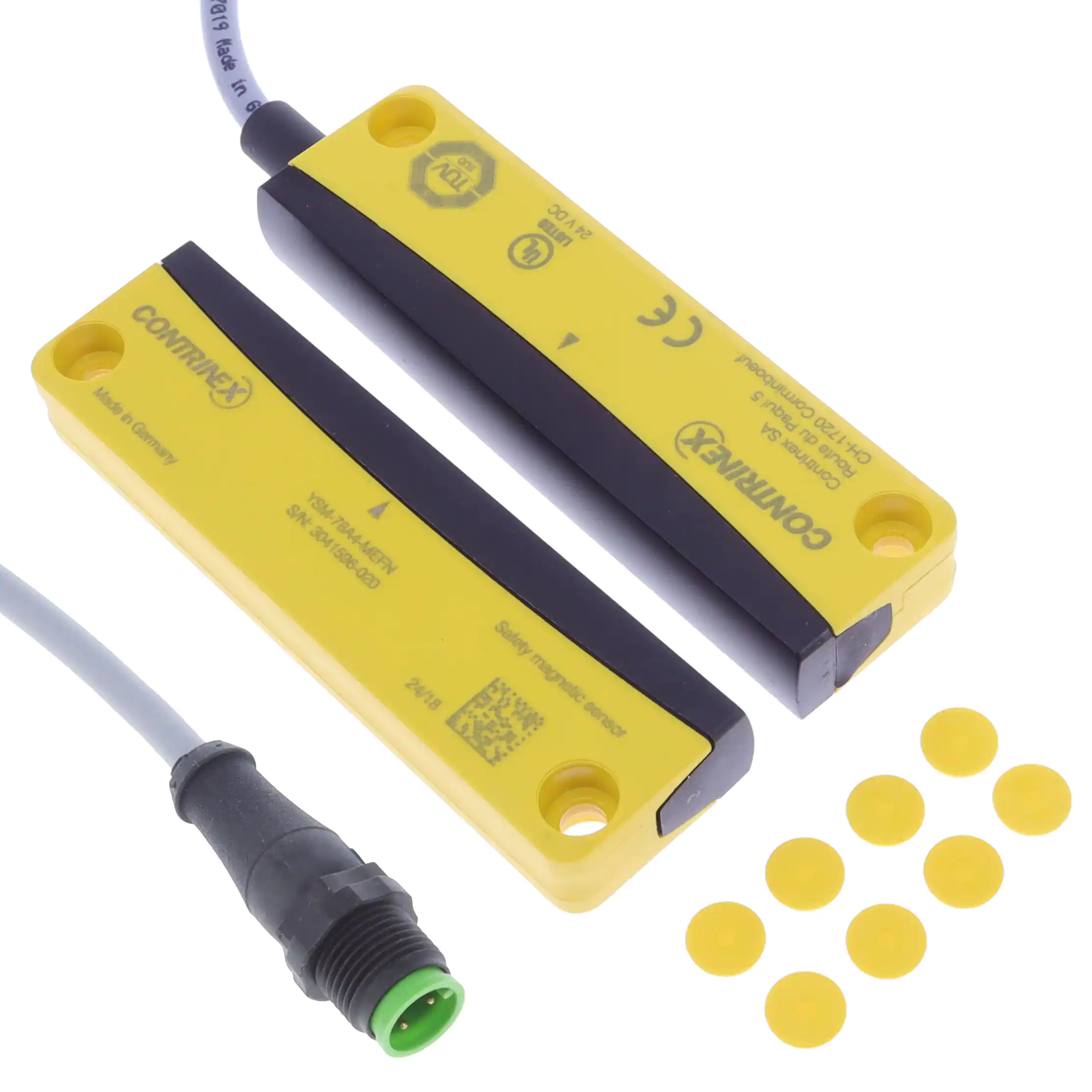

1202570009INTERLOCK MAGNETIC DPST |
0 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 18mm | - | -25°C ~ 80°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|
1202570003INTERLOCK MAGNETIC DPST |
0 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 8mm | 17mm | - | -25°C ~ 80°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|
XCSPA592INTERLOCK NON-LOCKING DPST |
1 |
|
Технический лист |
XCSPA | Box | Active | Non-Locking | DPST-NO/NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | 1kgf | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSPA792INTERLOCK NON-LOCKING DPST |
1 |
|
Технический лист |
XCSPA | Box | Active | Non-Locking | DPST-NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSPA992INTERLOCK KEY LOCKING 3PST |
1 |
|
Технический лист |
XCSPA | Box | Active | Key Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSDMR7902INTERLOCK MAGNETIC DPST |
1 |
|
Технический лист |
XCSDMR | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | - | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
XCSPL581INTERLOCK NON-LOCKING DPST |
1 |
|
Технический лист |
XCSPL | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
1105317MAGN SAFETY SENSOR |
1 |
|
Технический лист |
RE1 | Bulk | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 30VDC | - | - | Non-Contact | Cable with Connector (M8) | - | 7mm | 20mm | M8 | -30°C ~ 60°C | IP67 - Dust Tight, Waterproof | CE, cULus, EAC, TUV |
|
XCSDMP7015INTERLOCK MAGNETIC 3PST |
1 |
|
Технический лист |
XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
