Блокировочные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Схема | Номинальный ток (Ампер) | Номинальное напряжение | Напряжение - Питание | Удерживающая сила | Тип привода | Тип вывода | Особенности | Должен работать | Должен Выпуск | Размер резьбы кабелепровода | Рабочая температура | Защита от проникновения | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

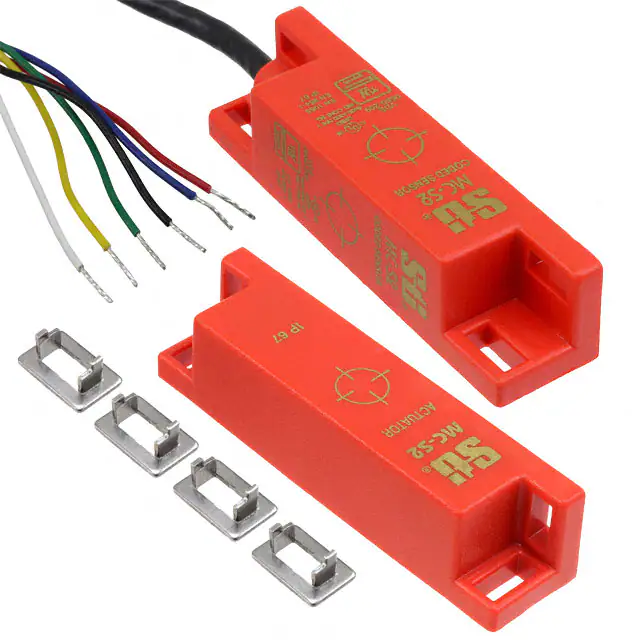

MC-S2XOPC10INTERLOCK MAGNETIC 3PST |
1 |
|
Технический лист |
MC-S-STI | Bulk | Active | Magnetic | 3PST-2NO/1NC | 100mA (AC/DC) | 230VAC, 24VDC | - | - | Non-Contact | Cable Leads | - | 9mm | 12mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
CM-S621PC10INTERLOCK MAGNETIC 3PST |
1 |
|
Технический лист |
CM-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 500mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 7mm | 10mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
HS1L-DT44KMSR-GINTERLOCK SOLENOID RELEASE 3PST |
1 |
|
Технический лист |
HS1L | Bulk | Active | Solenoid Release | 3PST-NC x 2 | 10A (AC), 8A (DC) | 125VAC, 30VDC | 24VDC | 306kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | 1/2" NPT | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
6027391INTERLOCK INDUCTIVE PROX 3-6MM |
1 |
|
Технический лист |
IN4000 | Bulk | Active | Inductive | - | - | - | 24VDC | - | Non-Contact | Connector (M12) | - | 3 ~ 6mm | 15mm | - | -25°C ~ 70°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
HS5L-VA44LM-GINTERLOCK SOLENOID RELEASE DPST |
1 |
|
Технический лист |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC x 2 | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|

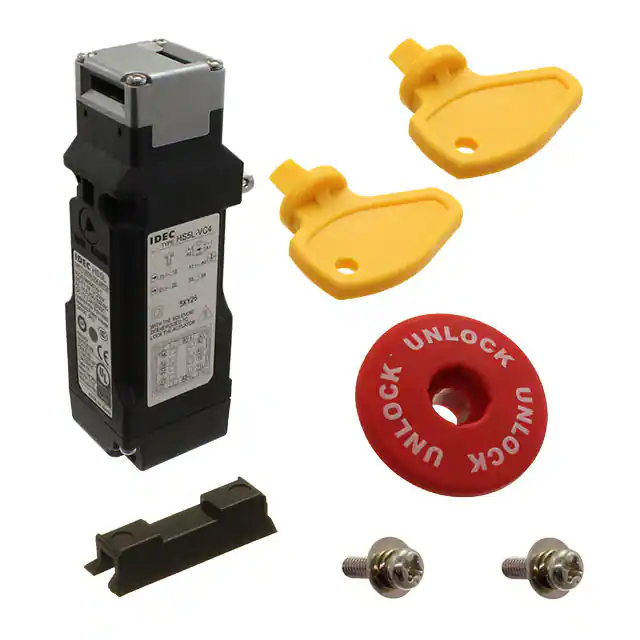

HS5L-VC44LM-GINTERLOCK SOLENOID RELEASE DPST |
1 |
|
Технический лист |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
D4NL-2ADA-BINTERLOCK SOLENOID RELEASE DPST |
1 |
|
Технический лист |
D4NL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

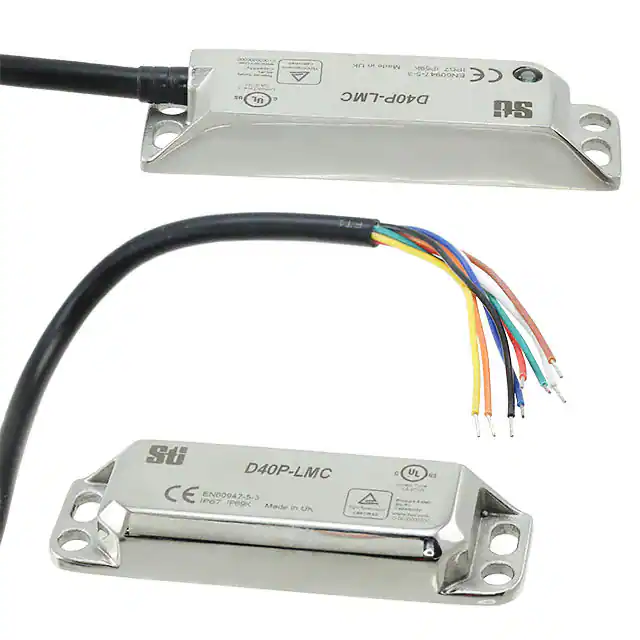

D40P-LMC-21-05INTERLOCK MAGNETIC 3PST 5M CBL |
1 |
|
Технический лист |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 105°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
D41D2CD025N2INTERLOCK RFID SENSOR W/ CBL |
1 |
|
Технический лист |
D41D | Box | Active | RFID | - | 250mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | Status Indicator | 10mm | 18mm | - | -25°C ~ 65°C | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|

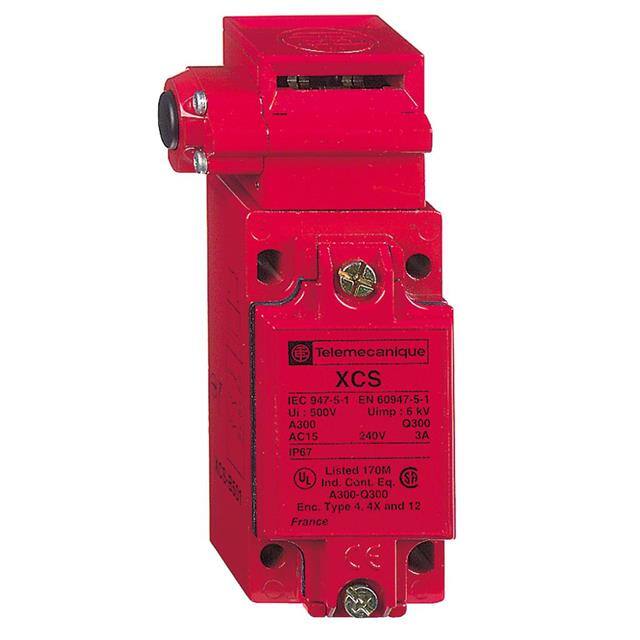

XCSB703INTERLOCK SOLENOID RELEASE 3PST |
1 |
|
Технический лист |
XCSB | Box | Active | Solenoid Release | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
D4NL-2EFA-BINTERLOCK SOLENOID RELEASE 3PST |
1 |
|
Технический лист |
D4NL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + DPST-NO/NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

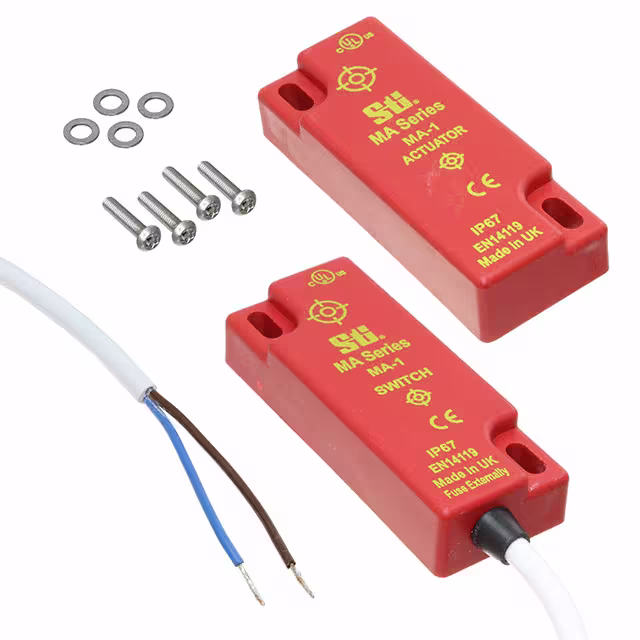

MA-1APC4INTERLOCK MAGNETIC SPST |
1 |
|
Технический лист |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4NL-1AFA-BINTERLOCK SOLENOID RELEASE DPST |
1 |
|
Технический лист |
D4NL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4NL-4AFG-BINTERLOCK SOLENOID LOCKING DPST |
1 |
|
Технический лист |
D4NL | Bulk | Active | Solenoid Locking | DPST-NO/NC (DB/DM) x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4NL-4CFG-BINTERLOCK SOLENOID LOCKING DPST |
1 |
|
Технический лист |
D4NL | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
T2007-11TCC5INTERLOCK NON-LOCKING DPST |
1 |
|
Технический лист |
T2007 | Bulk | Active | Non-Locking | DPST-NO/NC | 5A (AC), 2A (DC) | 100VAC, 24VDC | - | 612gf | Panel Disconnect | Cable with Connector (M12) | - | - | - | - | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

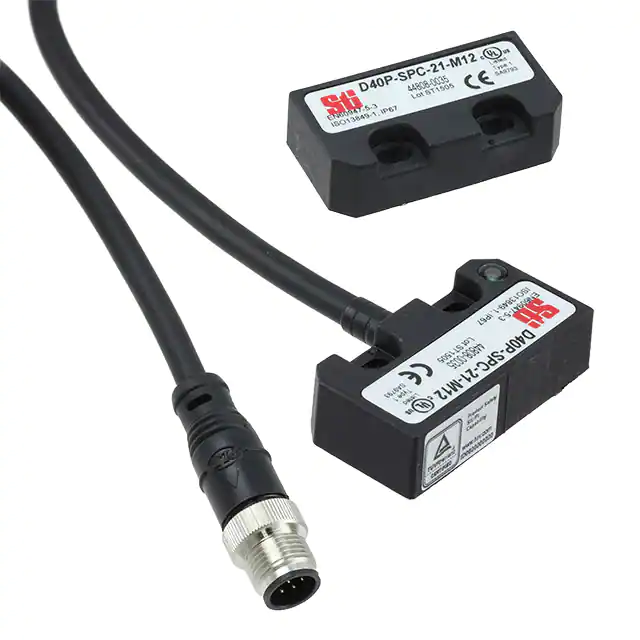

D40P-SPC-21-M12INTERLOCK MAGNETIC 3PST |
0 |
|
Технический лист |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

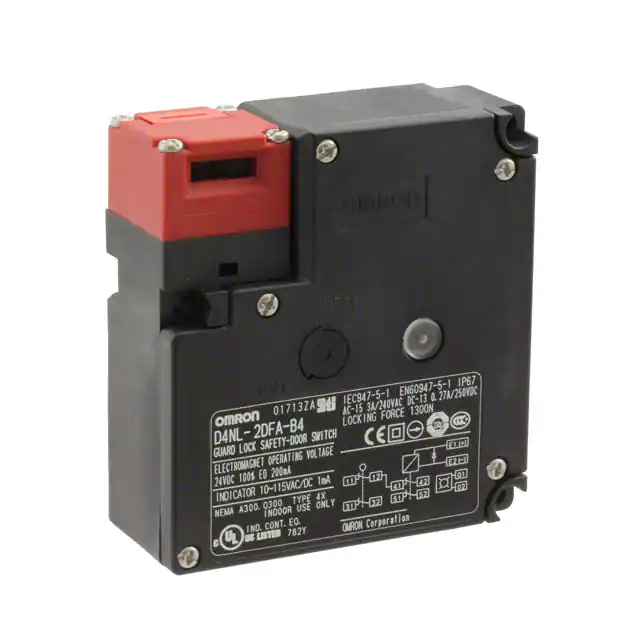

D4NL-2DFA-B4INTERLOCK SOLENOID RELEASE DPST |
0 |
|
Технический лист |
D4NL | Bulk | Active | Solenoid Release | DPST-NC x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4SL-N3QFA-DINTERLOCK SOLENOID RELEASE 3PST |
0 |
|
Технический лист |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + 3PST-NC | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | 24VDC | 6kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | 1/2" NPT | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
|

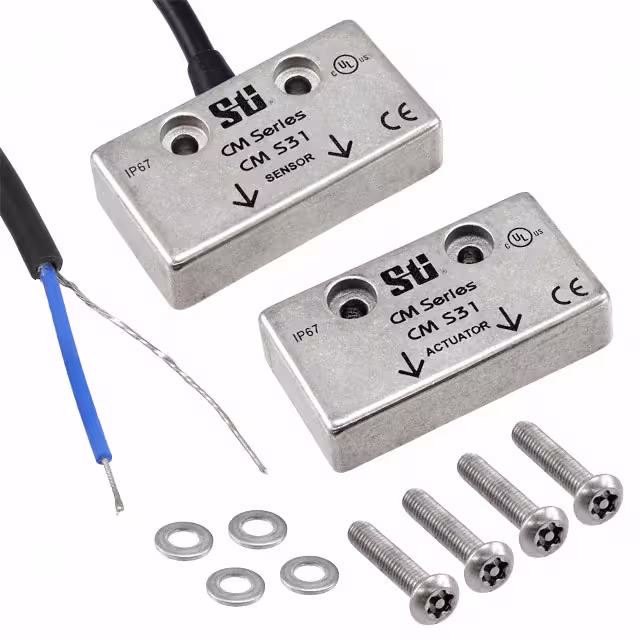

CM-S31SC3INTERLOCK MAGNETIC |
1 |
|
Технический лист |
CM | Bulk | Active | Magnetic | - | 500mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 5 ~ 7mm | 8 ~ 12mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
